3.9 Drive Assembly Description

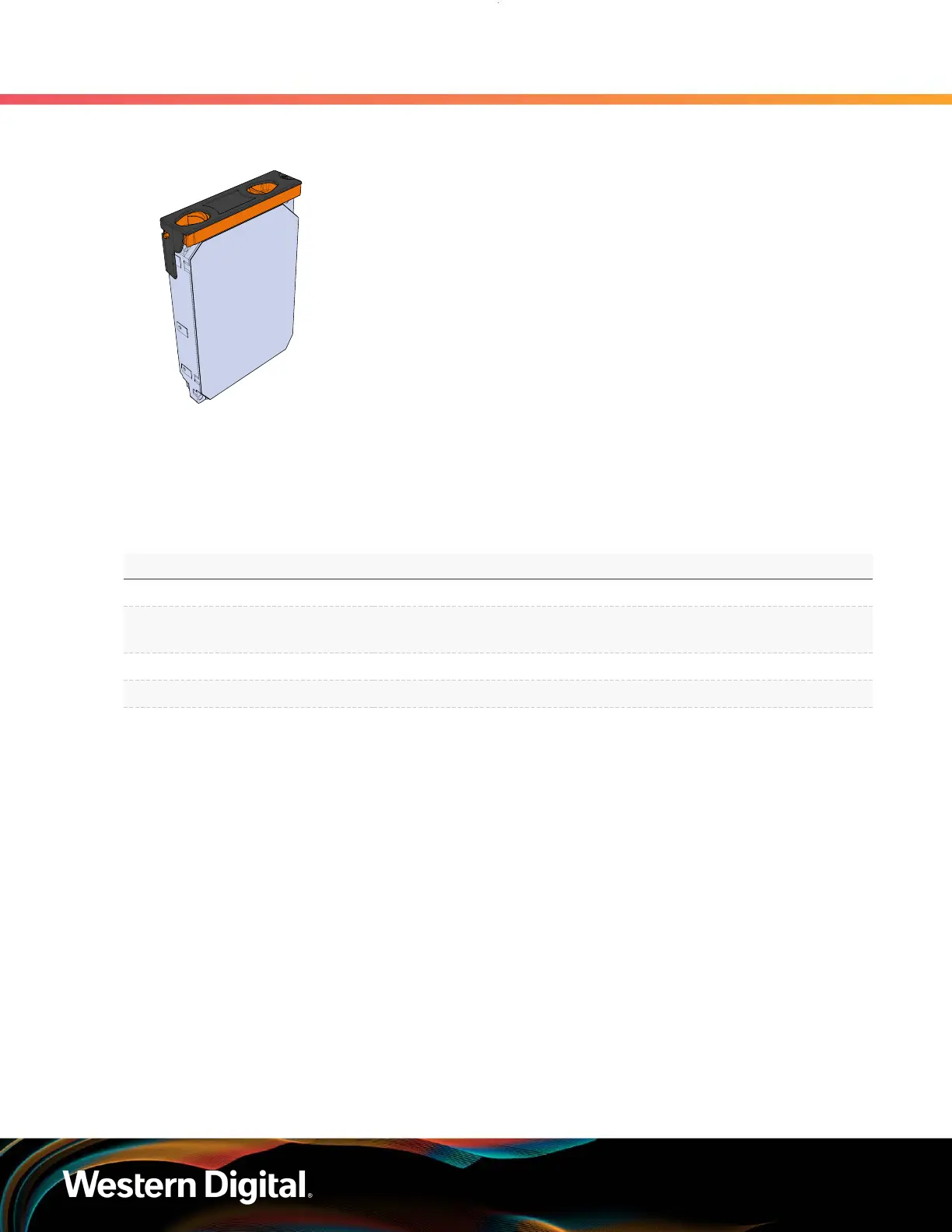

Figure 34: Overview Image
The Drive Assembly is comprised of two parts: the storage drive and the drive carrier. The carrier attaches
to the exterior of the data storage drive and caddies the drive into the enclosure. It stabilizes the motion of
the drive into the drive bay so that the drive properly mounts onto the drive board.
3.9.1
Drive Assembly Specifications
Specification Value
Number per Enclosure up to 102 drives
Part Number See the List of Compatible Drives (page 20)
to find the specific part number required.
Hot Swappable? Yes
Weight .68 kg / 1.5 lbs.
3.9.2
Drive Assembly Layout
58
