User Guide
4. Part Replacement
4.2 IOM Replacement

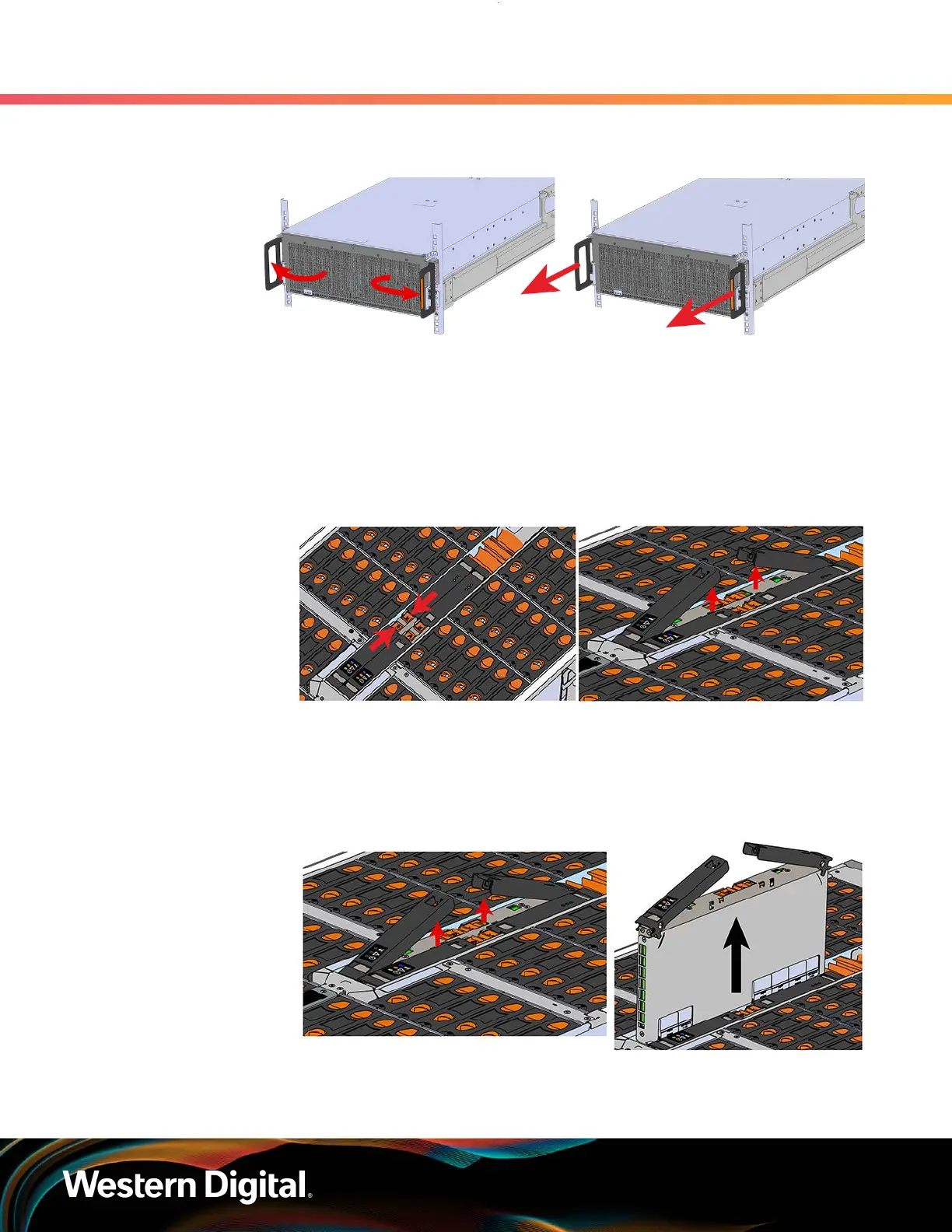

Figure 41: Chassis Handle Operation
Step 2 : Locate the faulty IOM by the amber LED that will be lit on top if there is a fault or by activating
the identify LED on the IOM being replaced.
Step 3 : Uninstall the IOM(s).
a. Locate the latch release on the IOM and press it in the direction shown in the following
image.
Figure 42: Unlatching the IOM
b. Grasp both handles, one handle in each hand, and lift evenly with both hands to ensure
the IOM comes out straight. This will prevent any damage to the pins on the internal
connectors.
Figure 43: Removing IOM
Step 4 : Remove the new IOM from its packaging.
66
