4. Part Replacement
4.4 Rear Fan Replacement
Figure 55: Uninstalling the Rear Fan
Step 3 : Install Rear Fan

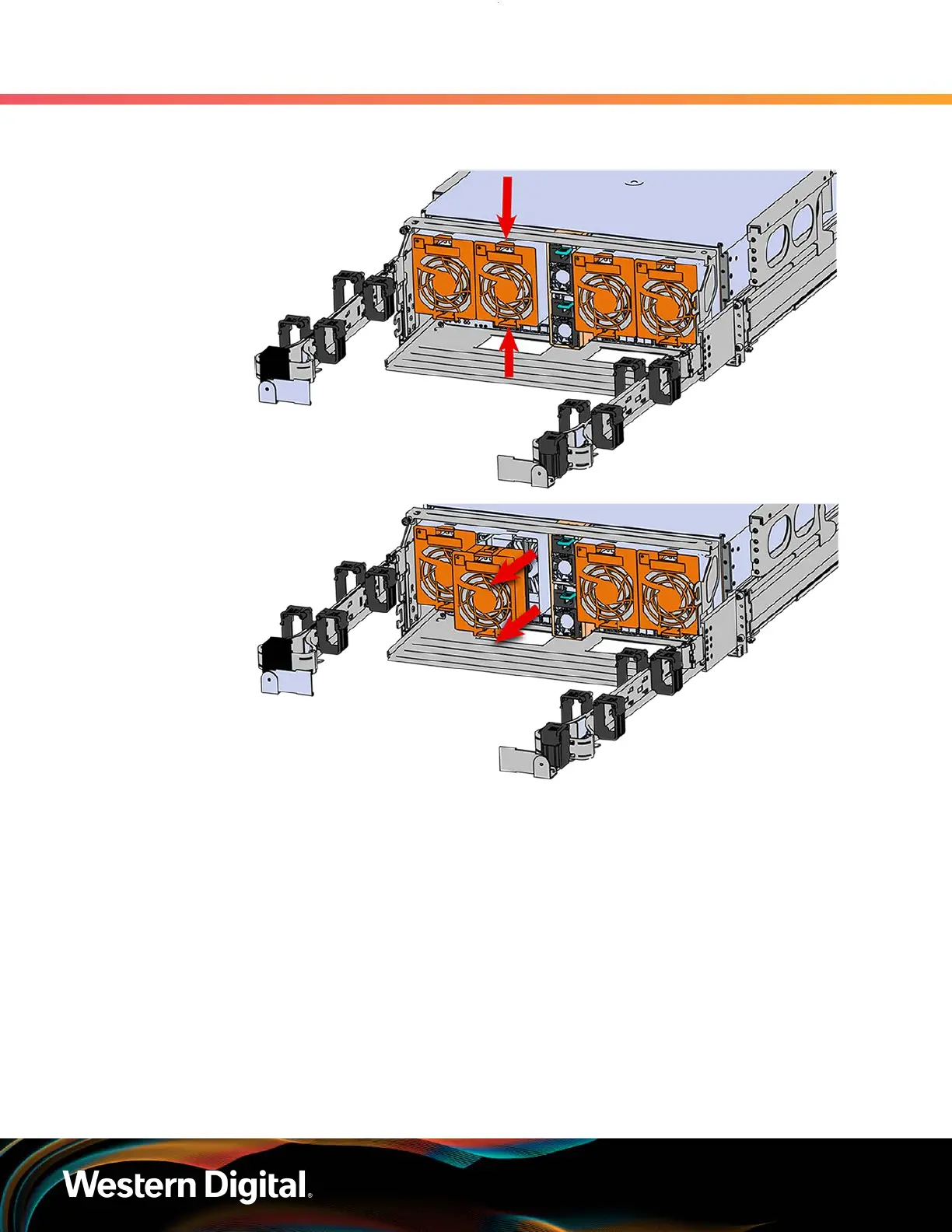

a. Orient the rear fan as shown in the following image.
b. Insert the rear fan into the housing as shown in the following image.
