User Guide
4. Part Replacement
4.7 CMA Replacement

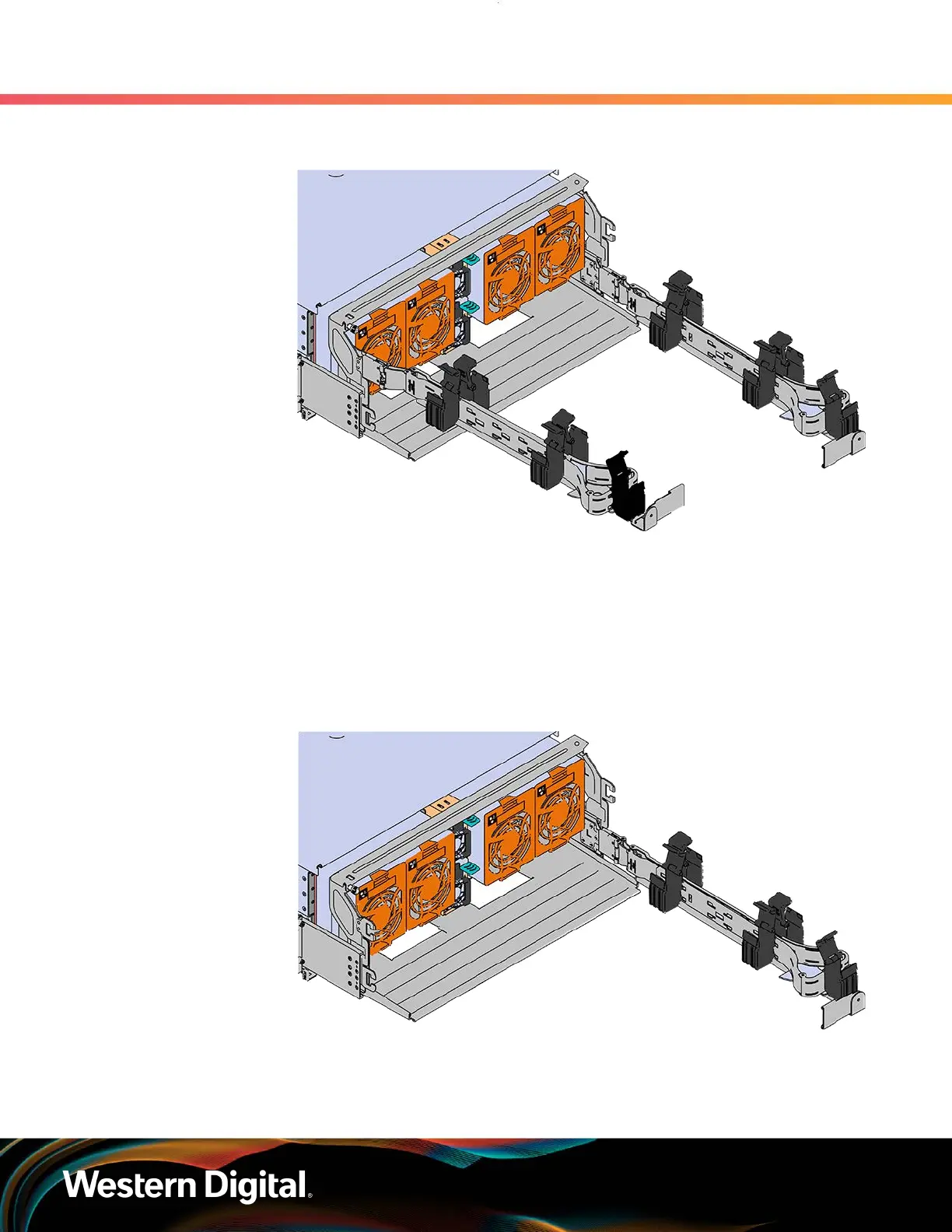

Figure 68: Open Baskets
b. Remove one cable from the CMA at a time making sure not to put too much strain on the
arm.
c. Repeat these steps to remove the cables from the second arm.
CMA Lite:
a. Open all of the baskets on the CMA.
Figure 69: Open Baskets
b. Remove one cable from the CMA at a time making sure not to put too much strain on the
arm.
