A. The Helical gear center drive must be serviced as follows after each crop cycle
(Minimum of once per year):
1. Inspect input and output seals for leakage. Should either of the seals show excessive leak
age, the seals should be replaced. All replaced seals must be installed with generous
amounts of #2 Barium/Lithium based grease or equivalent quality #2 water resistant grease.
2. External seals should be used to keep dirt and water out of internal seal locations. If the ex
ternal seals are damaged or worn, replace with new seals.

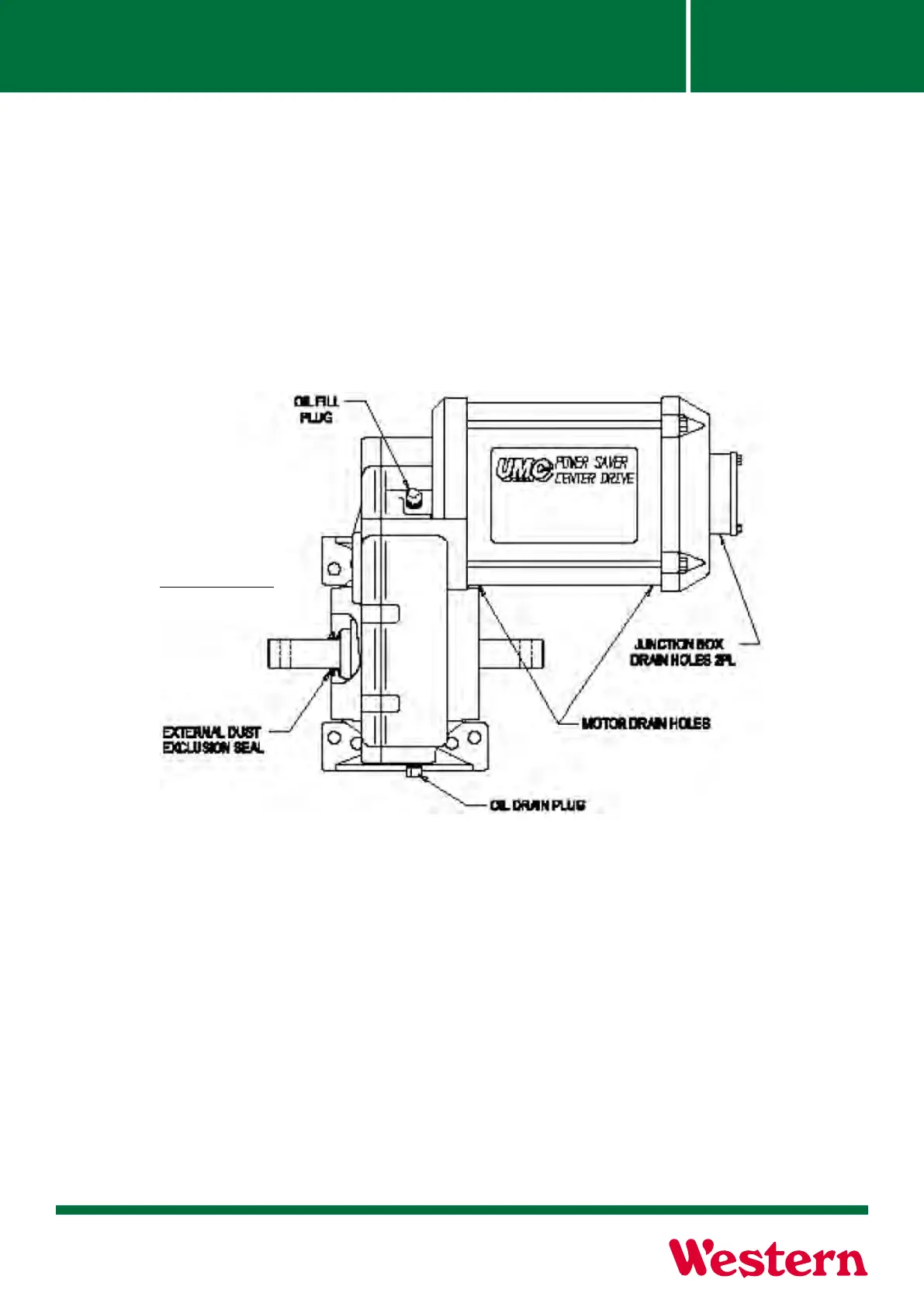

DIAGRAM-SG-1
Figure 1-15.
3. The two (2) drain holes located under the motor can must be kept clear to allow for drain
age of accumulated moisture inside the motor if required. Do not Western or remove plug.
4. The two (2) drain holes located under the end bell must be kept clear to allow drainage of
accumulated moisture inside of the junction box.
5. Remove drain plug located at bottom of gearbox and completely drain gearbox.
If oil was contaminated or emulsied, ush gearbox with a cup of specied oil and let drain
completely.
6. Replace drain plug and rell to 1-1/2” (45 mm) from top of gear case as shown in the draw
ing. Refer to gearbox oil specications. After one or two hours the oil should be re-checked.
Air may be trapped in the gearbox during initial lling. Top o with oil as needed.
Section 1-15
Operation, Safety & Maintenance
Power Drivetrain Maintenance
