Lit. No. 95748/95749, Rev. 04 19 January 1, 2017

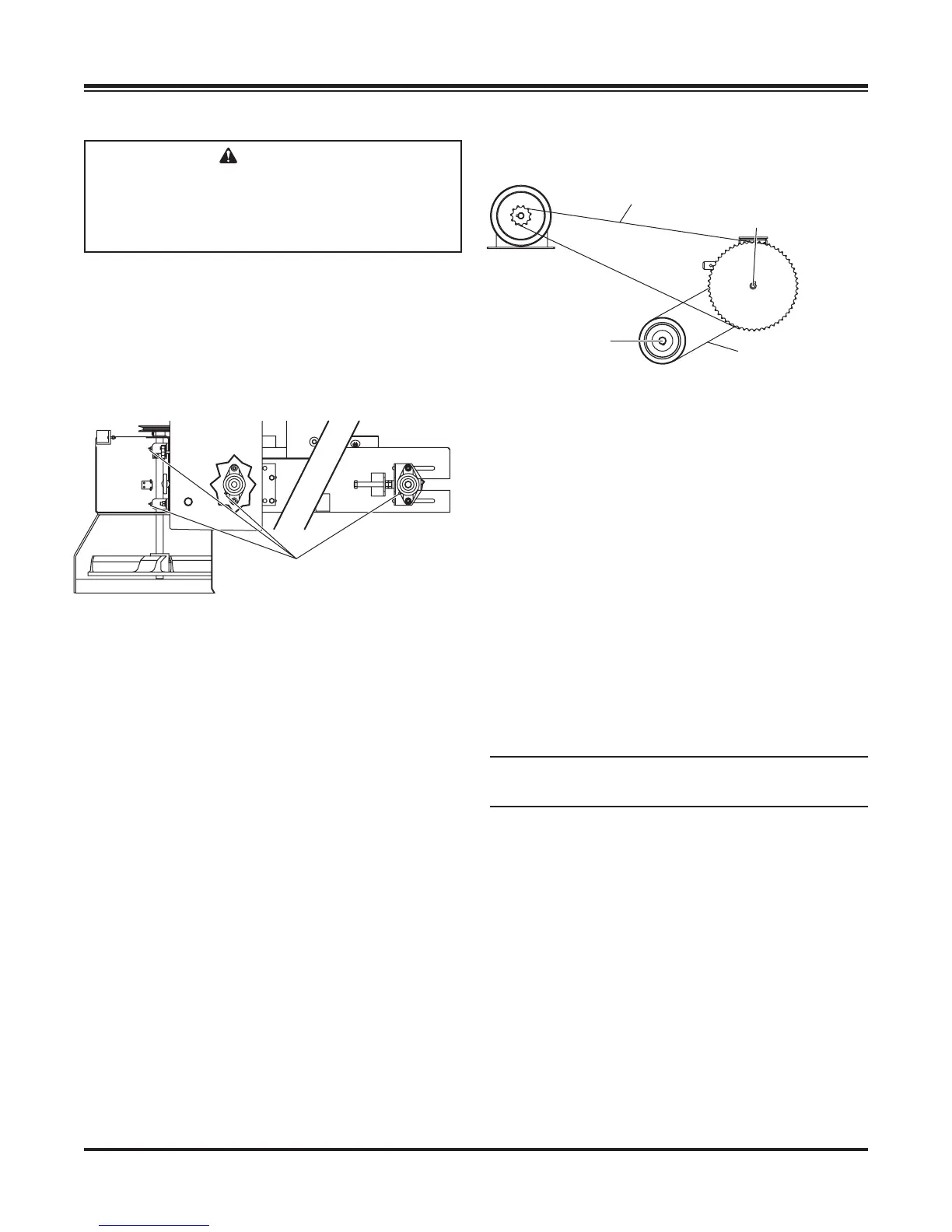

DRIVE BELT AND CHAIN TENSION
To adjust belt tension:
1. Loosen the carriage bolts that hold the spinner shaft.
2. Slide the spinner shaft to increase/decrease tension.
3. After adjusting the shaft, tighten the carriage bolts.
Belt should deect 5/8" between the pulleys.
To adjust the chain tension:
1. Loosen the bolts that hold the motor.
2. Slide the motor to increase or decrease the chain
tension.
3. After adjusting the motor, tighten the bolts. The
chain should deect 1/4" between the sprockets.
NOTE: Overtightening the belt or chain may result
in damage to the motor or gear box bearing.
MAINTENANCE
GREASE FITTINGS
To keep your spreader running smoothly, observe the
following recommendations:
• Lubricate grease ttings after each use and at the
end of each season.
CAUTION
Disconnect electric power at spreader
electrical wiring harness connection and tag
out if required before servicing or performing
maintenance.
Grease after each use with
a good
quality multipurpose grease.
Motor
V-Belt
Deflection of 5/8"
Chain Deflection of 1/4"
Gearbox Input Shaft
Spinner Shaft
