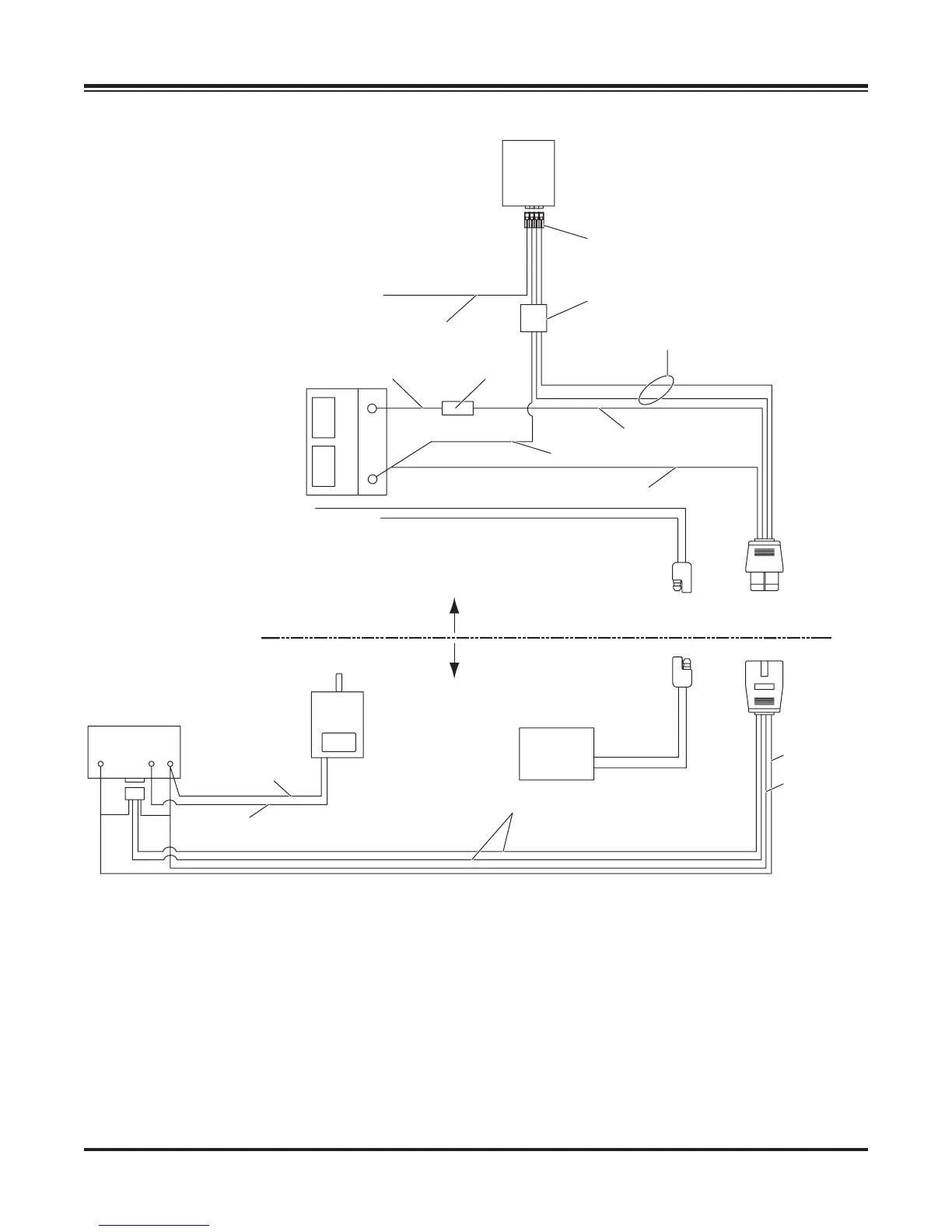

HARNESS WIRING DIAGRAM
+
_
Cab Control
4-Way Connector
Connector
18 ga Shielded Twisted-Pair Cable
6 ga Red
18 ga Black
6 ga Black
Wiring Harness
Wiring Harness
6 ga Red
6 ga Blac
k
Motor Specification
12 Volt DC, .56 kW Motor
16 ga Tan and White Twisted Pair
CHMSL
Assembly
Motor
8 ga Red
8 ga Black
BATMOT GND
Spreader
Module
Vehicle
Spreader
To Vehicle CHMSL Signal
Battery
100 Amp Fuse6 ga Red
18 ga Red
To Vehicle Switched Accessory
