Whirlpool ACP102PR - Component Access Procedures; Component Locations

4-1

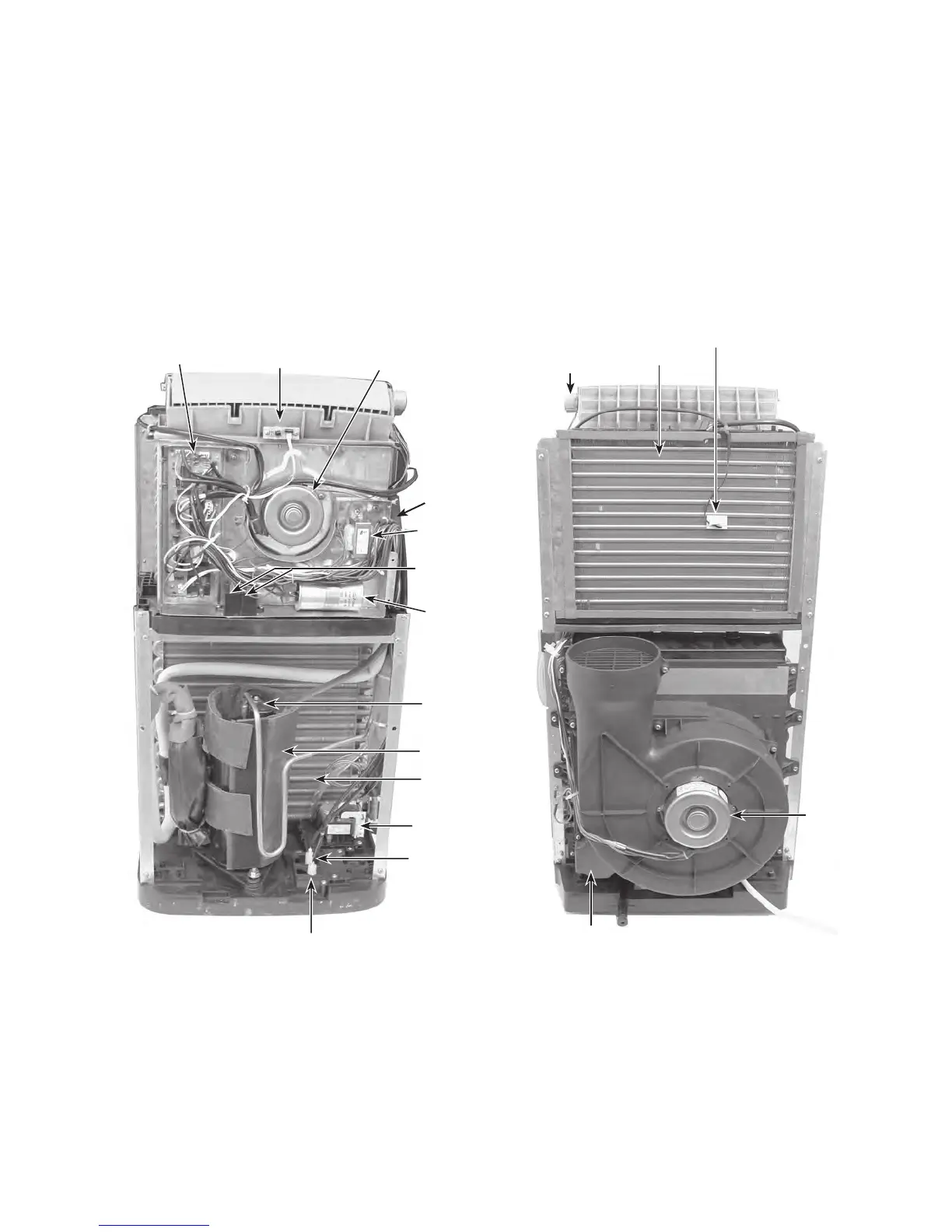

COMPONENT LOCATIONS
This section instructs you on how to service each component inside the 10,000 BTU Portable
Room Air Conditioner. The components and their locations are shown below.
COMPONENT ACCESS
Receiver Board
Evaporator
Fan Motor
W
ater Pump
Motor
High W
ater
Level Switch
Low Water
Level Switch
Overload
Protector
Compressor
Condenser
Evaporator
Room Temp
Thermistor
Louver
Motor
Condenser
Fan Motor
Power Supply
Cord Terminal
(Viewed From Front Of Unit)
(Viewed From Rear Of Unit)
De-Ice
Thermistor
Transformer
Compressor
Capacitor
Fan Motor
Capacitors
Control Board
Not Shown: User Interface Board
