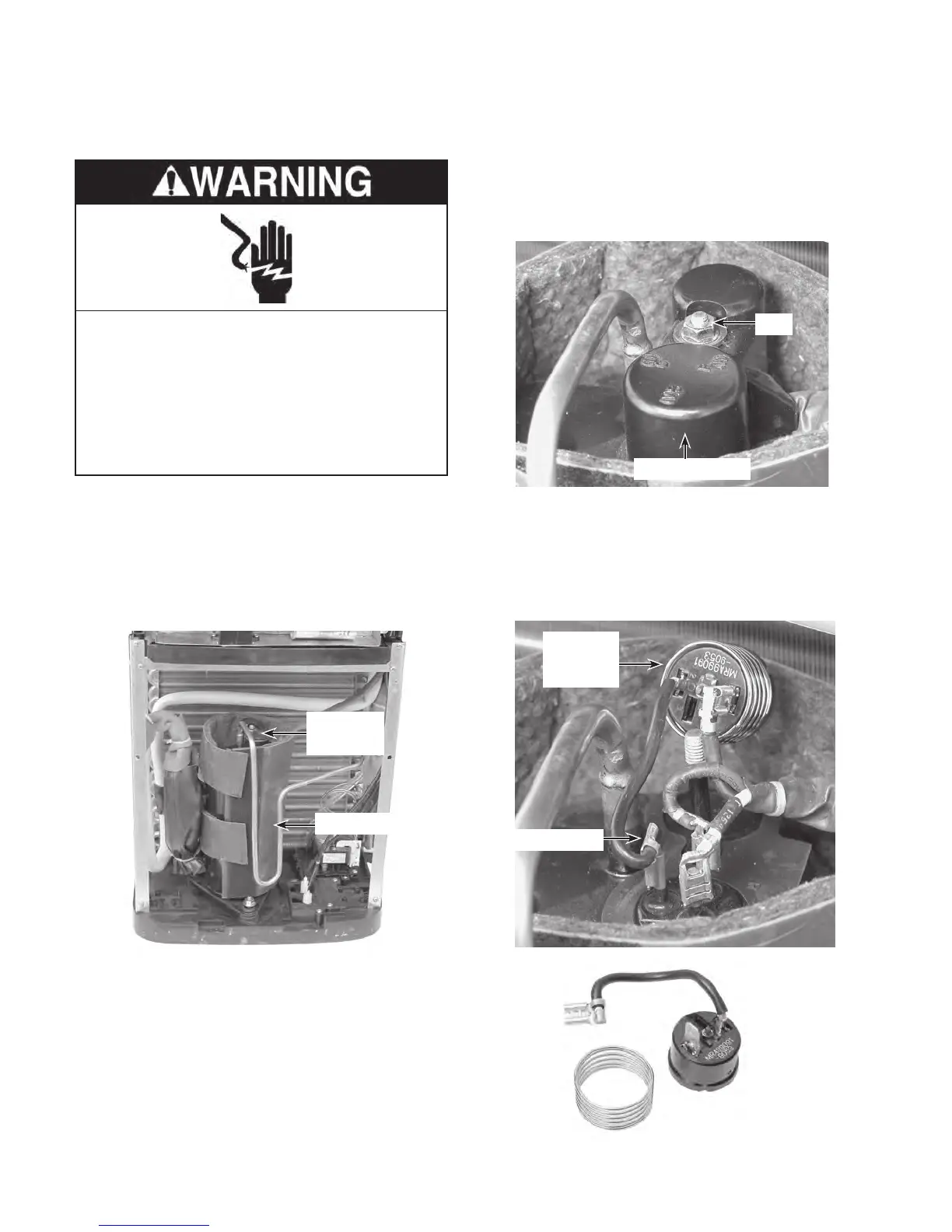

REMOVING THE OVERLOAD PROTECTOR

AND THE COMPRESSOR

1. Unplug air conditioner or disconnect power.

2. Remove the cabinet from the unit (see

page 4-2 for the procedure).

Remove the components cover (see

page 4-5 for the procedure).

Compressor

Overload

Protector

5. To remove the overload protector:

a) Remove the 5/16˝ nut from the termi-

nal cover and remove the cover.

b) Disconnect the wire from the overload

protector terminal, and the overload

protector wire from the compressor

terminal (C), then remove the over-

load protector and coil.

Terminal Cover

Nut

Connector C

Overload

Protector

& Coil

Overload Protector

& Coil

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before

operating.

Failure to do so can result in death or

electrical shock.

4. CAUTION: Discharge the capacitor by

touching the leads of a 20,000 ohm

resistor to the motor capacitor termi-

nals.
