2-1
INSTALLATION INFORMATION
INSTALLATION REQUIREMENTS

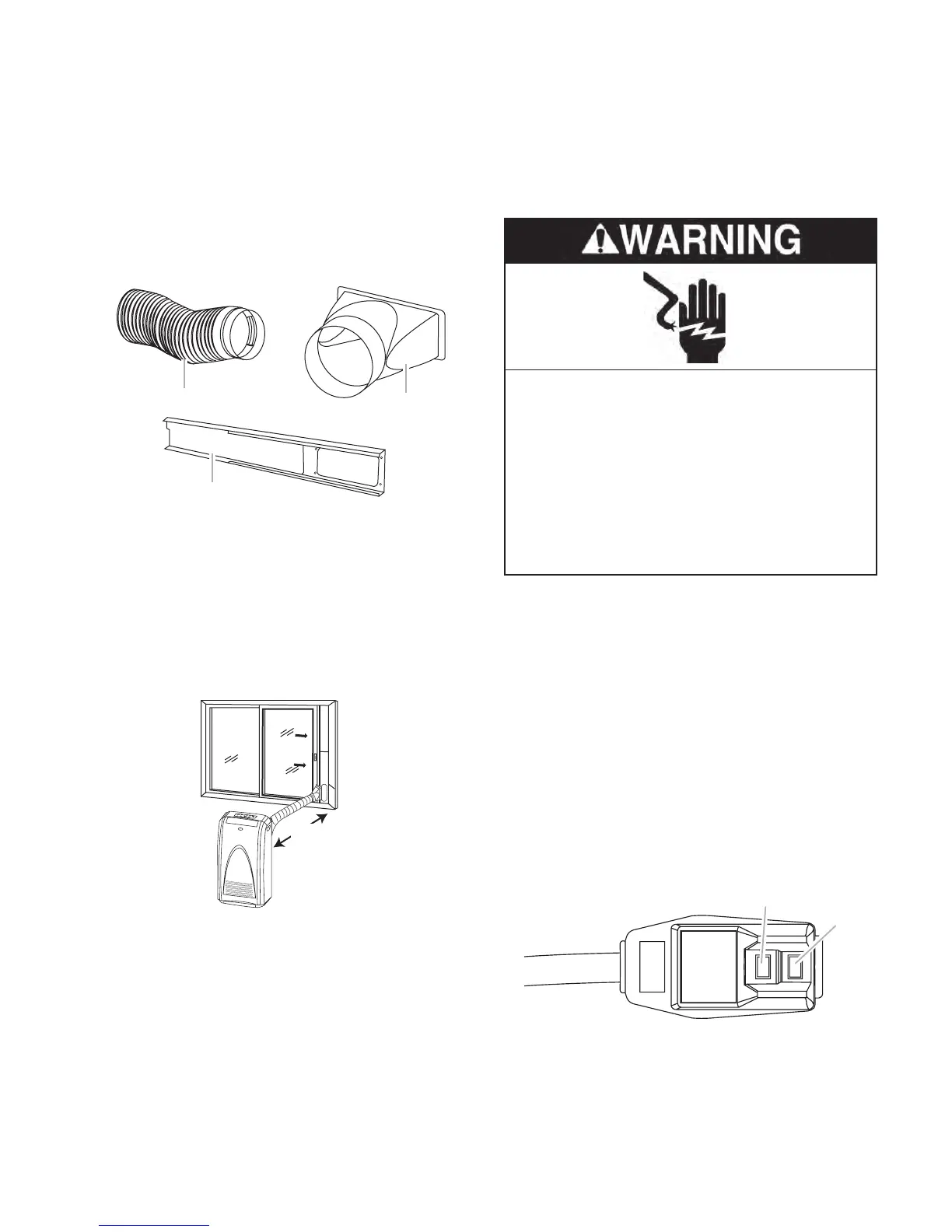

PARTS
Parts supplied
Check that all parts are included in parts pack-
age.
LOCATION REQUIREMENTS
NOTES:
Locate the air conditioner between 19-1/2"
(49.5 cm) and 70-5/8" (180 cm) from win-
dow or door
.
•
Keep
the required distance from the return
air outlet to the wall or other obstacles at
least 19-1/2" (49.5 cm).
Do not block air outlet.
Provide
easy access to grounded 3 prong
outlet.
•
•
•
A. Flexible exhaust hose
B. Window exhaust adapter
C. Window slider kit (3)
A
B
C
19
1
/2" - 70
5
/8"
(49.5 - 180 cm)
The portable air conditioner should be con-
nected to a 115 V, 60 Hz, 15- or 20-amp
fused 3 prong grounded outlet.
The
use of a time-delay fuse or time-delay
circuit breaker is recommended.
All
wiring must comply with local and na-
tional electrical codes and be installed by a
qualified electrician. If you have any ques-
tions, contact a qualified electrician.
Power Supply Cord
NOTE: Your unit’s device may differ from the
one shown.
•
•
•
A. Reset button
B. Test button
TEST
RESET
A
B
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock.
ELECTRICAL REQUIREMENTS
