4-13
WIRE TIE LOCATIONS

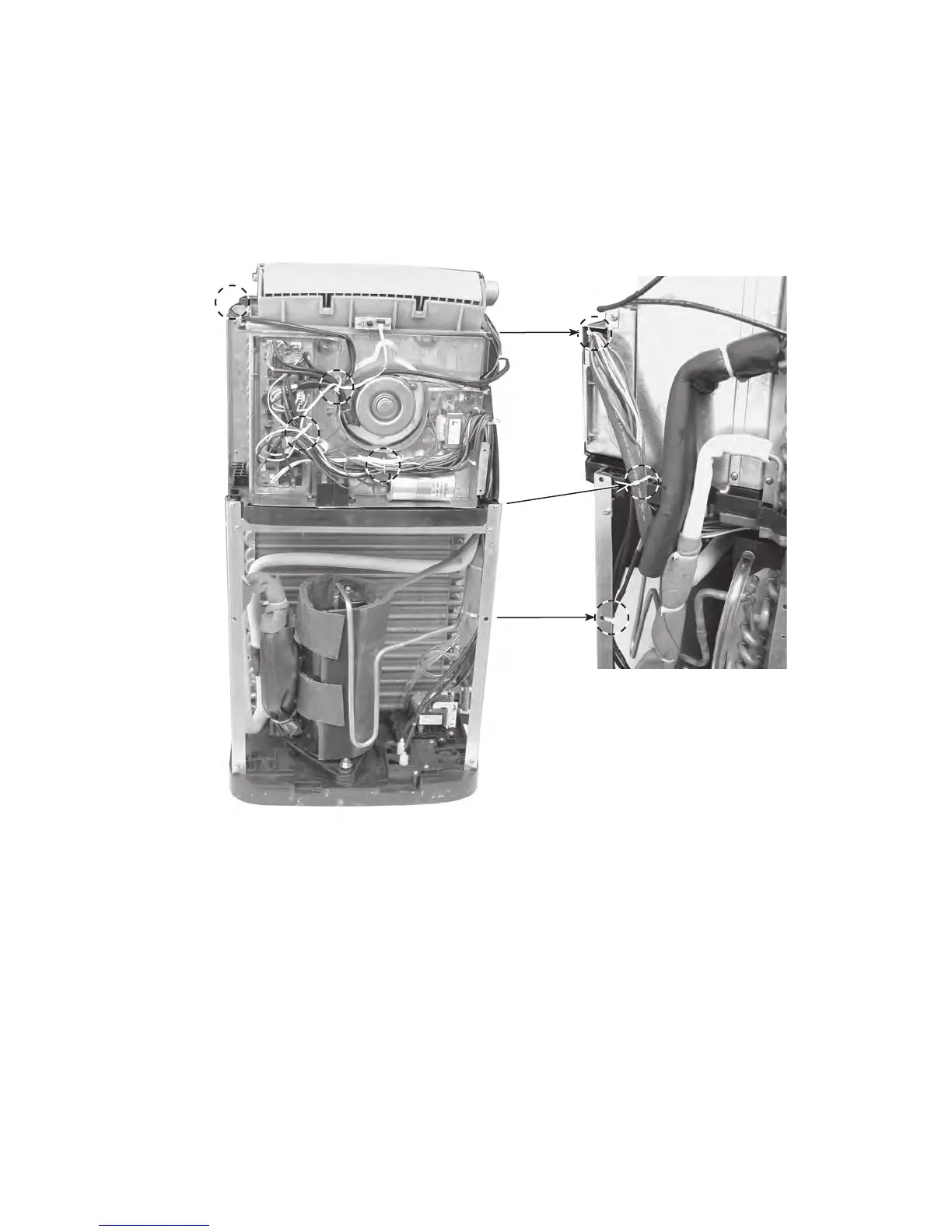

NOTE: The following photos show the loca-
tions (circled) of the various wire ties used in
the rest of this section, and are not called out
in the procedures. The wire ties will need to
be replaced to secure the wiring for the com-
ponent being serviced. Always route the wires
as shown in the photos, and keep them neat
to avoid vibration noise.
(Viewed From Front Of Unit)
(Viewed From Right Side Of Unit)
To Next Page
