4-24

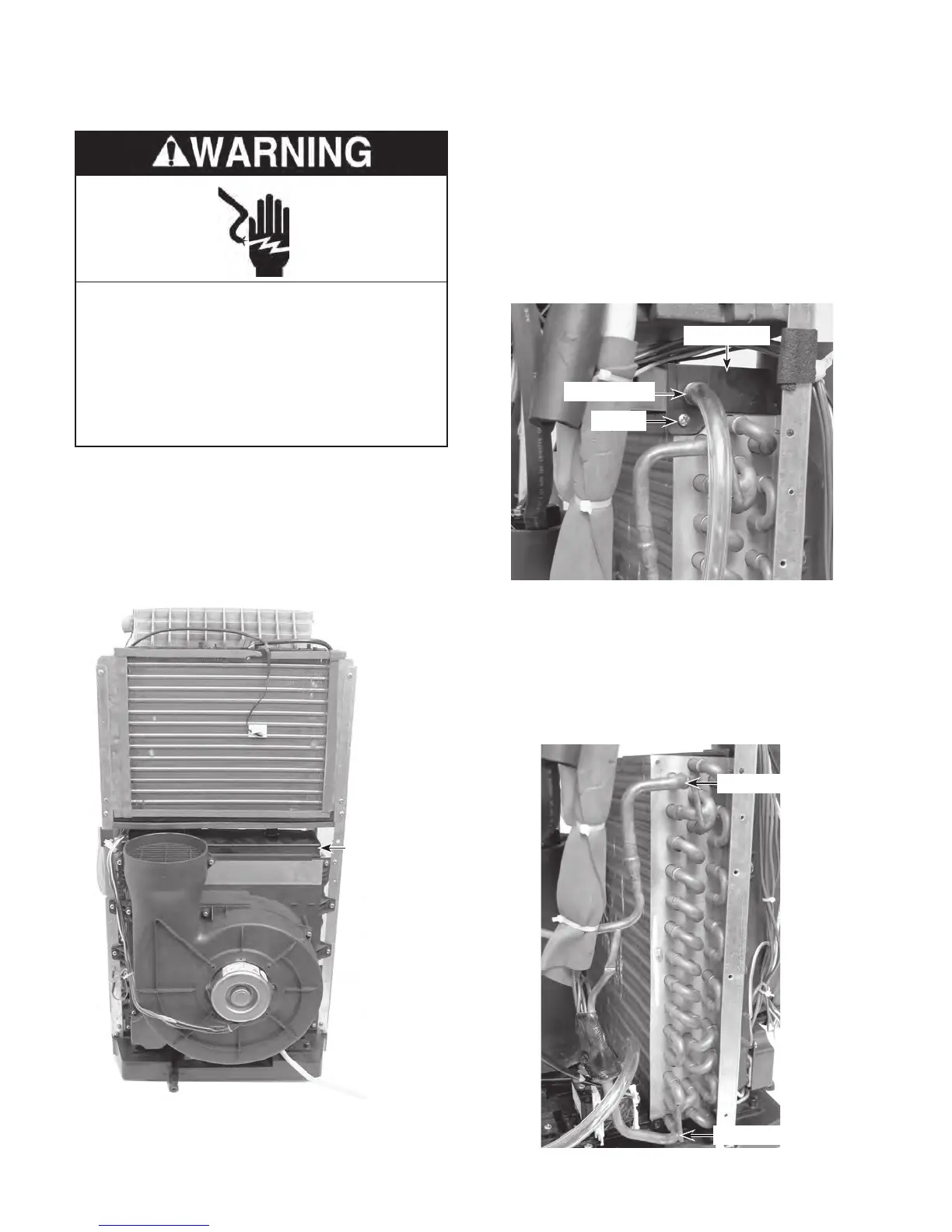

REMOVING THE CONDENSER
1. Unplug air conditioner or disconnect power.
2. Remove the cabinet from the unit (see
page 4-2 for the procedure).
3.
Position the unit with the rear of the unit
facing you.
4. Pull the water tube off the water tray noz-
zle.
5.
Remove the two screws (one on each
side) from the water tray.
6. Slide the water tray back so it clears the
two top drain nozzles, and remove the
tray from the top of the condenser.
7. Braze on an access valve and discharge
the sealed system refrigerant into an ap-
proved refrigerant recovery system.
8.
Measure the new condenser inlet and
outlet tubes, and cut the existing lines to
the proper lengths.
Water Tray
Water Tube
Screw
Inlet Tubing
Outlet Tubing
Condenser
(Behind
Condenser
Fan Motor
Assy)
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
To Next Page
