3-2
THE OVEN SHUTDOWN THERMAL FUSE
& CONTROL PANEL THERMAL FUSE
There are two thermal fuses on the oven. The
thermal fuses operate as follows:
• Upper & Lower Oven Shutdown Ther-
mal Fuse — These thermal fuses are
located on the rear of the oven at the in-
dicated locations. Each oven shutdown
thermal fuse opens L2 to the oven if the
temperature at the rear panel exceeds
160˚C/320˚F. The two fuses are one-
time, non-resettable safety devices.
• Control Panel Thermal Fuse — Pro-
tects the control panel area if the tem-
perature exceeds 101˚C/214˚F. If the
fuse opens, it shuts down the entire unit
(no clock, etc.). One end of the thermal
fuse is connected to the control panel
at lug P7-1, and the other end is con-
nected to the main wire harness. The
thermal fuse is a one-time, non-
resettable fuse.

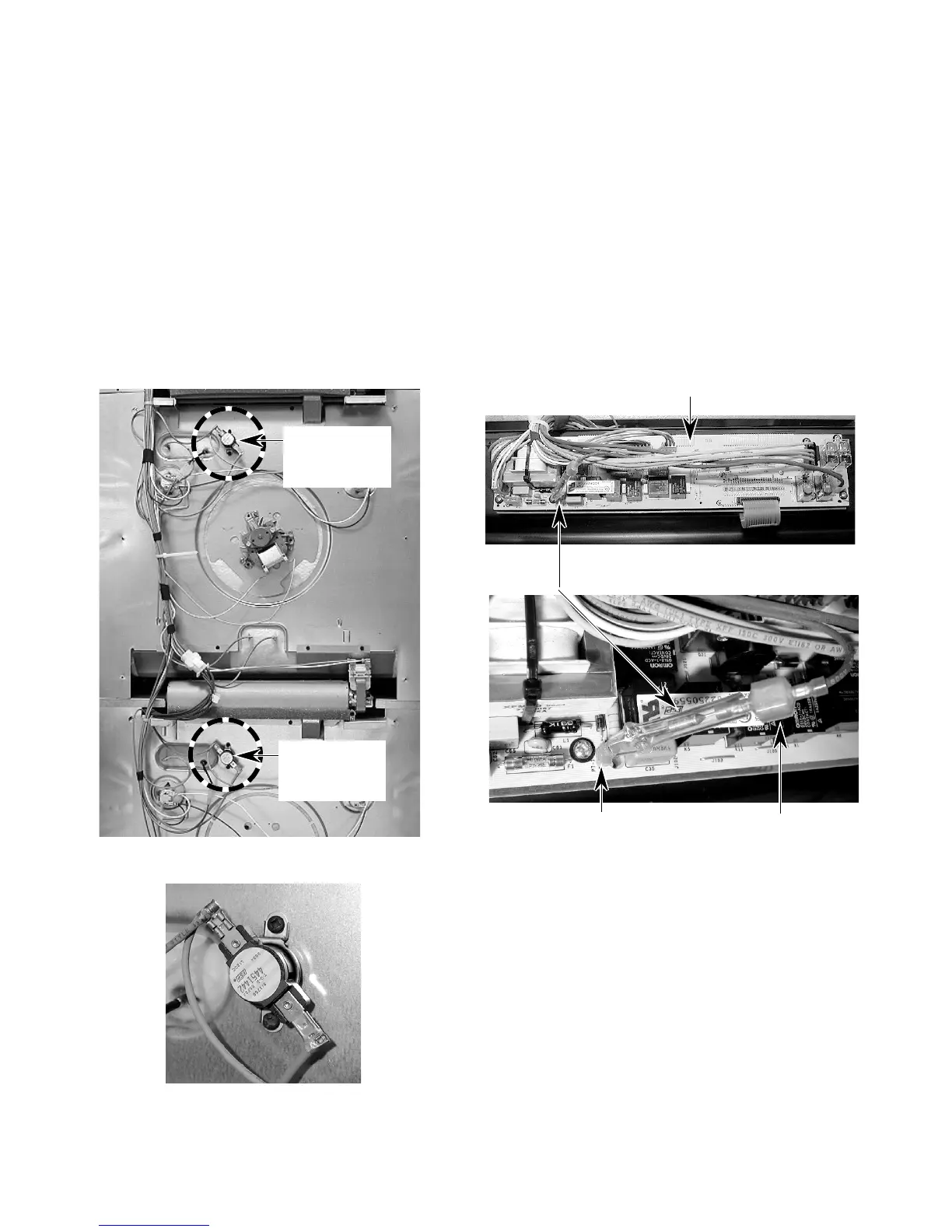

BACK OF OVEN
Oven Shutdown Thermal Fuse
Control Panel
Thermal Fuse
Connector P7-1
Connector To Wire
Harness
Lower Oven
Shutdown
Thermal Fuse
Upper Oven
Shutdown
Thermal Fuse
To Next Page
