6-4

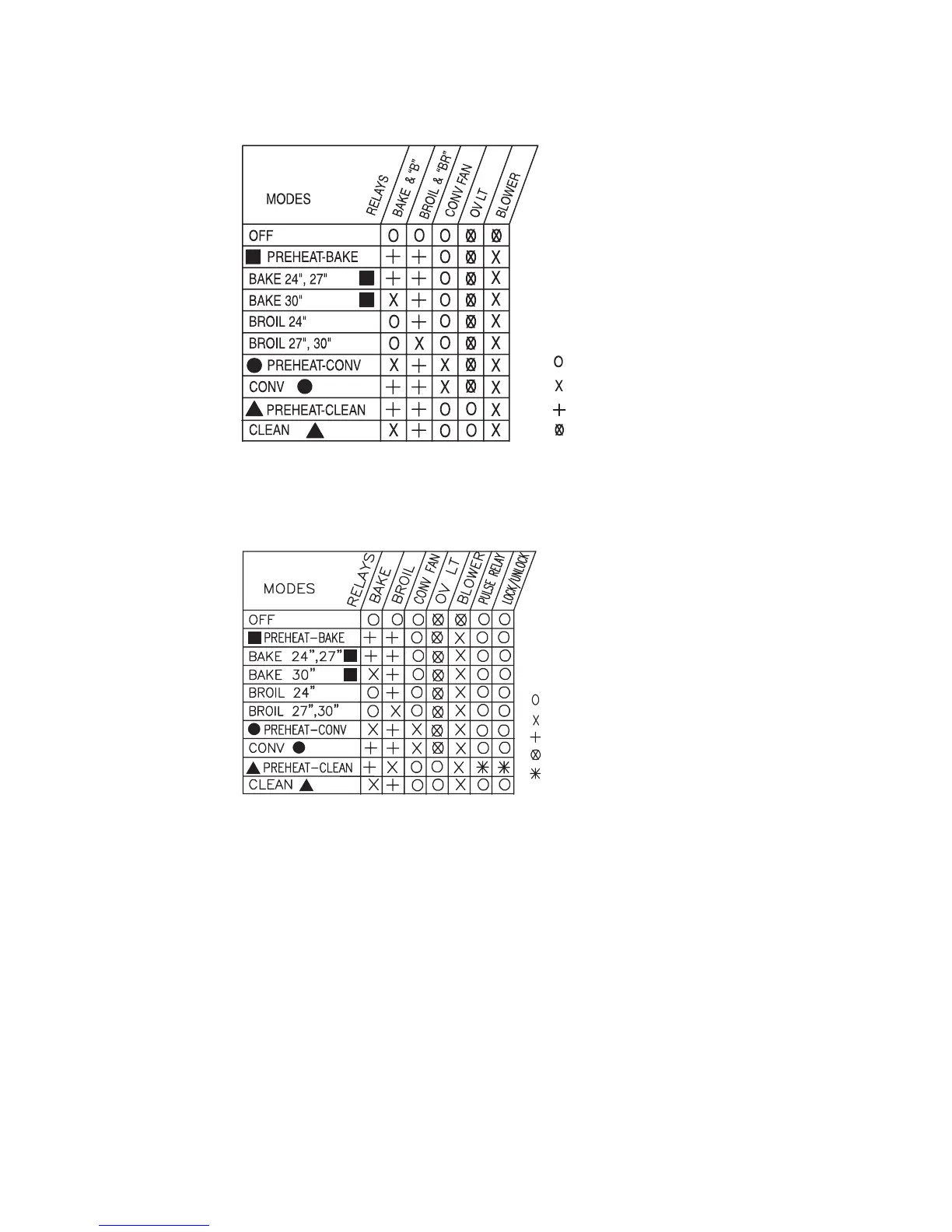

RELAY LOGIC CHART
TECH SHEETS 4451887C & 4451888A
RELAY LOGIC CHART
TECH SHEET 4452022A
RELAY LOGIC KEY
= OFF
= ON
= CYCLING
= ON OR OFF
RELAY LOGIC KEY
= OFF
= ON
= COOLING (MAX PERIOD = 60 SEC)
= ON OR OFF
= PULSED FOR 1/2 SEC
