COMPONENT ACCESS
This section instructs you on how to service each component inside the Electric Built-In Double
Oven . The components and their locations are shown below.

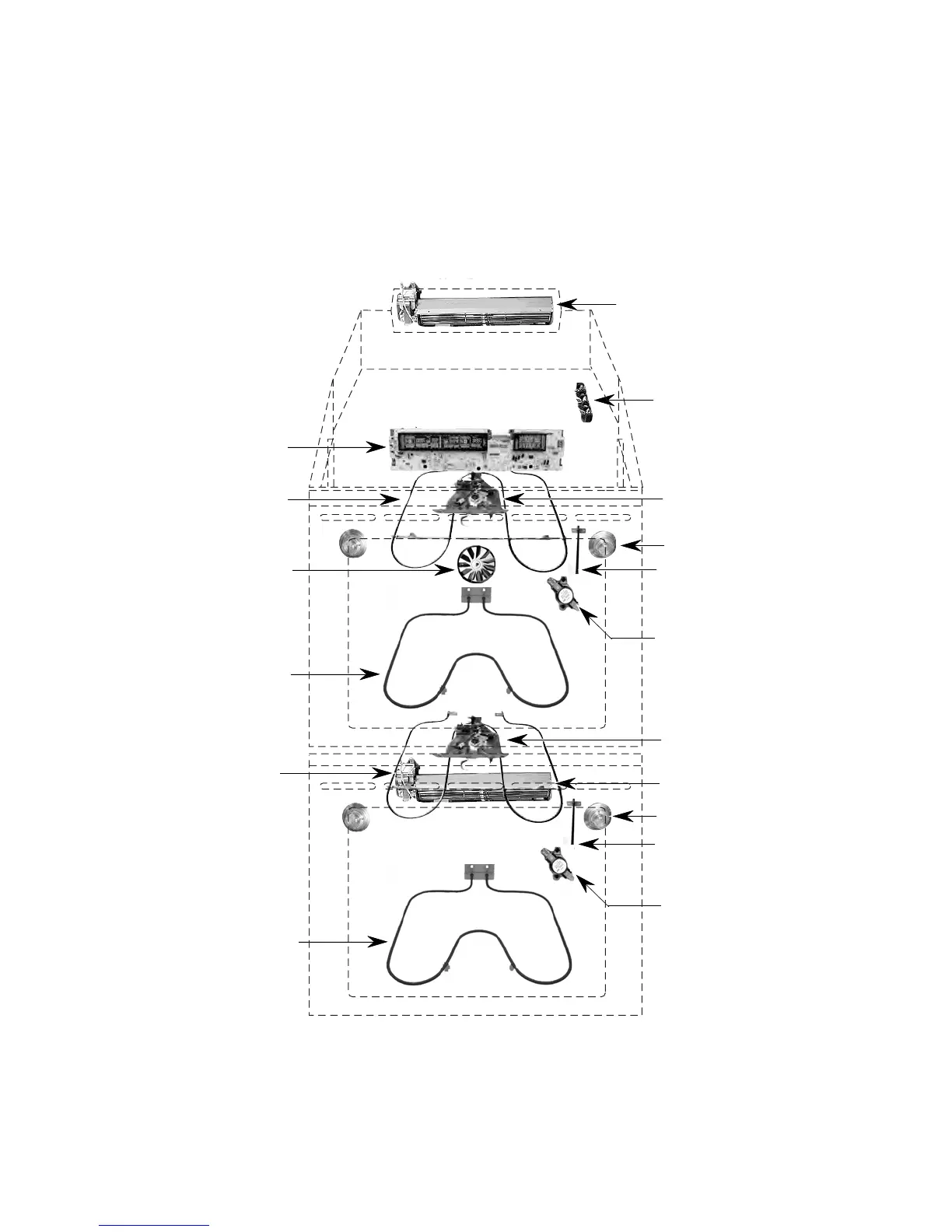

COMPONENT LOCATIONS
Lower Bake Element
Lower Broil Element
Upper Bake Element
Upper Broil Element
Power Supply Wiring
Terminal Block
Upper Blower Motor
Upper Door Latch
Assembly
Upper Oven Light (2)
Lower Blower Motor
Lower Oven Light (2)
Lower Door Latch
Assembly
Upper Oven
Temperature Sensor
Lower Oven
Temperature Sensor
Lower Oven
Shutdown Thermal
Fuse (Rear Of Oven)
Upper Oven
Shutdown Thermal
Fuse (Rear Of Oven)
Oven Control/Display
Boards & Thermal Fuse
Convection Fan Motor
