5-2
Refer to page 4-12 for the procedure for servic-
ing the convection fan motor.
1. Disconnect the electrical power to the
double oven.
2. Disconnect the wires from the convection
fan motor terminals.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter leads to the motor
terminals. The meter should indicate be-
tween 13 and 20 Ω.

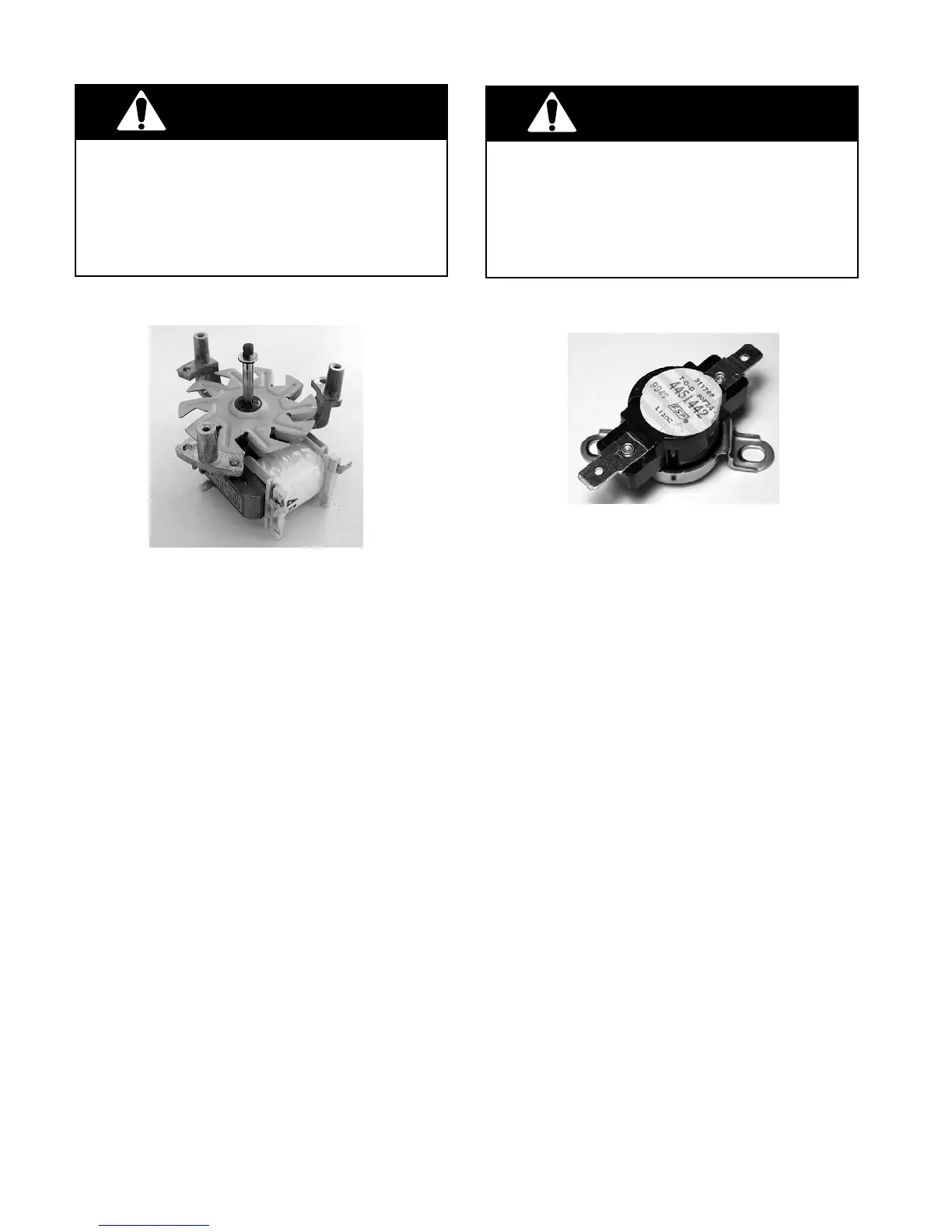

CONVECTION FAN MOTOR
Electrical Shock Hazard
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so could result in death or
electrical shock.
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so could result in death or
electrical shock.
OVEN SHUTDOWN THERMAL FUSE
Refer to page 4-11 for the procedure for servic-
ing an oven shutdown thermal fuse.
1. Disconnect the electrical power to the
double oven.
2. Disconnect the wires from the oven shut-
down thermal fuse terminals.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter leads to the oven
shutdown thermal fuse terminals. The
meter should indicate continuity (closed
circuit).
