Whirlpool RBD306PD - Strip Circuits - Bake and Preheat Bake

7-2

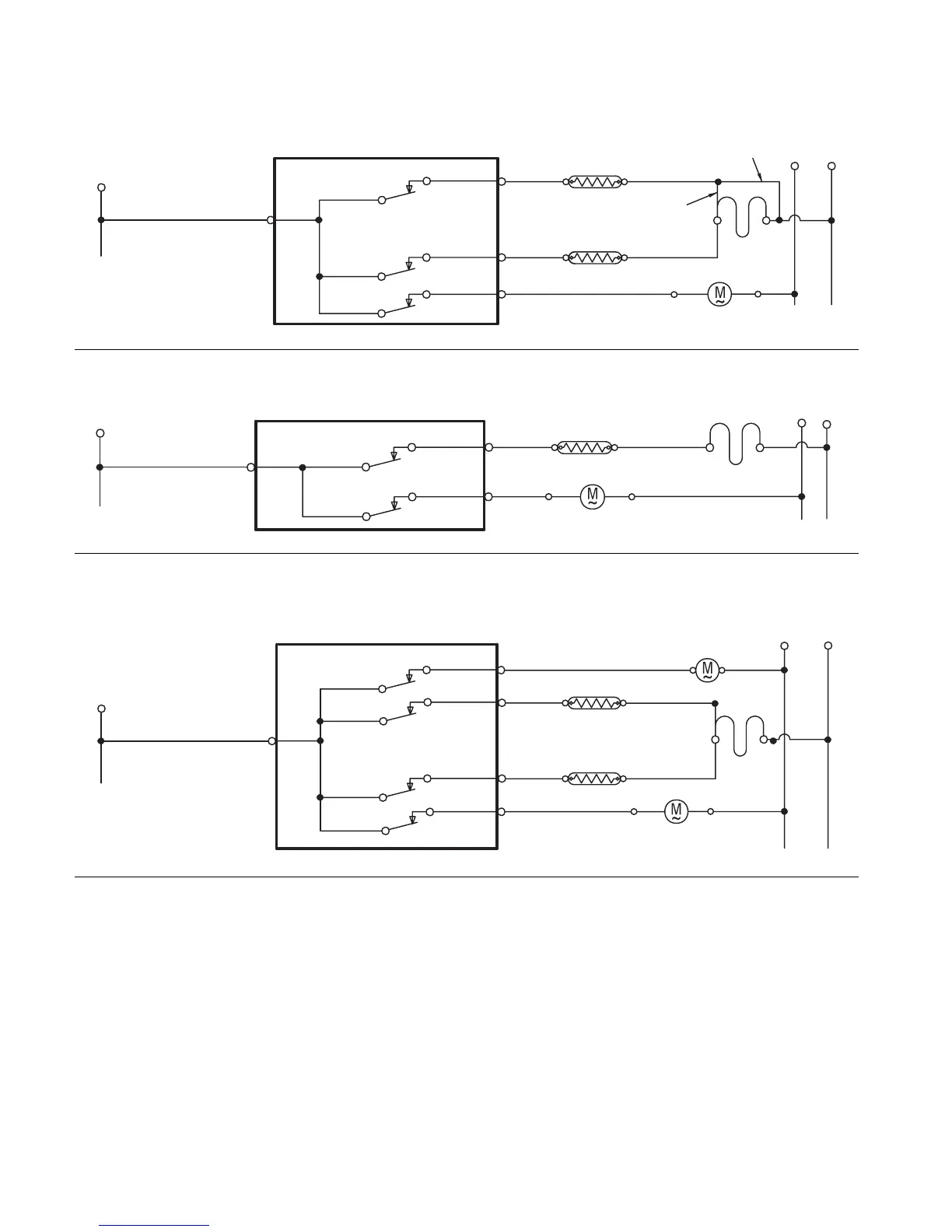

STRIP CIRCUITS
BAKE & PREHEAT BAKE
BROIL
CONVECTION & PREHEAT CONVECTION
(CONVECTION MODELS, UPPER OVEN ONLY)
BAKE-2000W
R
R
L1
L2
BROIL-3000W
OR
OR
GY
N
BLOWER
R
BK
*
(*)
P18- 4
(P26-4)
P24- 5
(P27-2)
P18- 1
(P26-2)
STANDARD CLEAN
MODELS ONLY
OVEN
SHUTDOWN
THERMAL
FUSE
SELF-CLEAN
MODELS ONLY
OR
L1
L2
GY
N
R
W
OR
BK
P18- 1
(P26-2)
P24- 5
(P27-2)
*
(*)
OVEN SHUTDOWN
THERMAL FUSE
BROIL-3000W
BLOWER
BAKE-2000W
OR
OR
OR
L1
L2
N
R
GY
R
W
W
R
*
(*)
BK
P24- 6
P18- 1
(P26-2)
P24- 5
(P27-2)
P18- 4
(P26-4)
OVEN
SHUTDOWN
THERMAL
FUSE
BROIL-3000W
BLOWER
CONV. FAN
