WhisperKool Platinum Split - 8000 Condensing Unit Wiring Schematic

www.whisperkool.com | Page 19

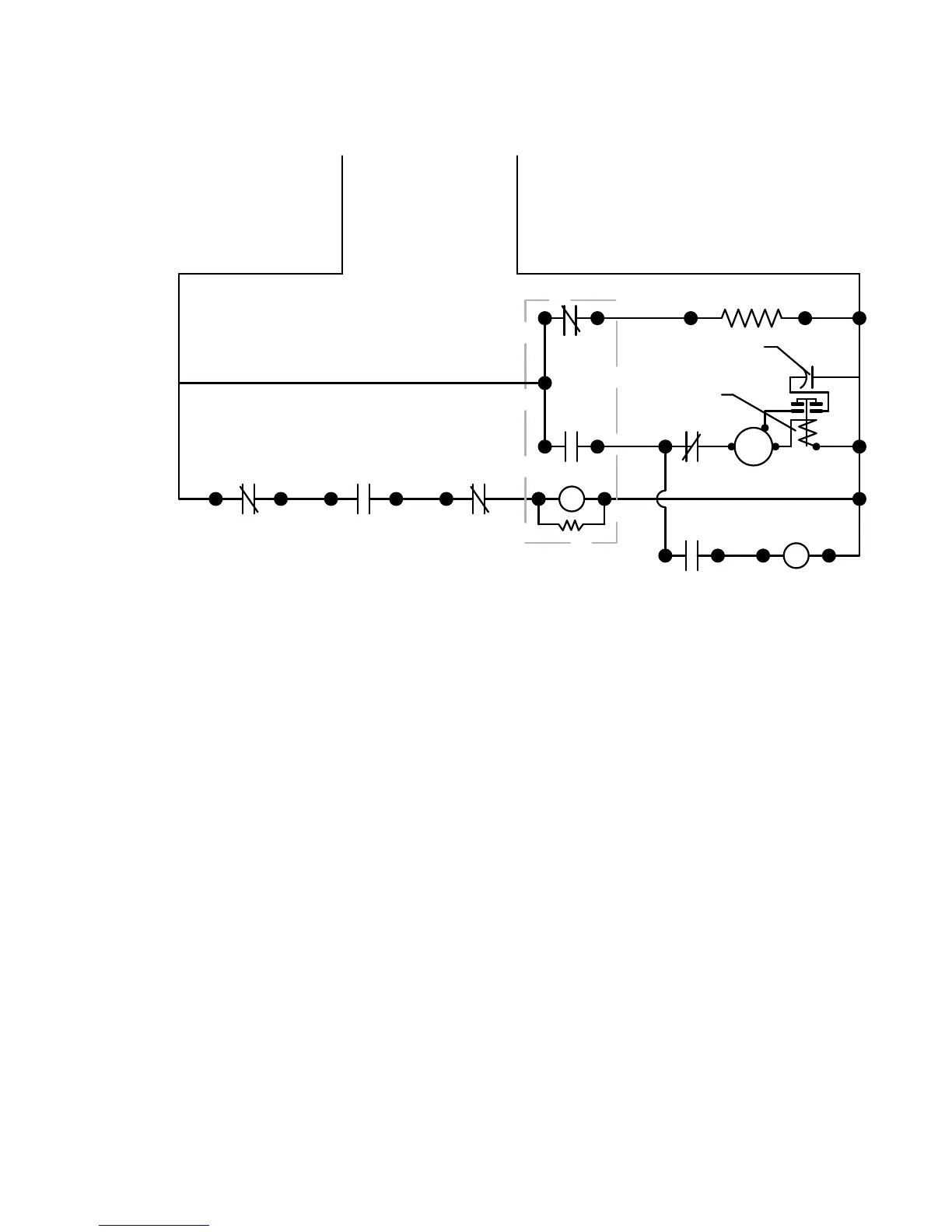

8000 CONDENSING UNIT WIRING SCHEMATIC
CC HEATER
COMPRESSOR
LPHP TD
CC
COND.
FAN
POWER
115v 60 HZ
H
N
LOW AMBIENT
CONTROL
CC COMP CONTACTOR
HP HI PRESS SWITCH
LP LO PRESS SWITCH
TD TIME DELAY
OL
START
CAPACITOR
CURRENT
RELAY
COMP CONTACTOR
10
9
6 8
4
6
3
7
