Receiving and Inspecting the System
• Lift only at the designated hand hold locations on the shipping container or fully support the unit from
underneath. A shipment may include one or more boxes containing accessories.
• Before opening the container, inspect the packaging for any obvious signs of damage or mishandling.
• Write any discrepancy or visual damage on the Bill of Lading before signing.
• Allow the condensing unit to sit for 24 hours prior to start up. The condensing unit can be placed in the
installation location piped and evacuated during this time.
Note: WhisperKOOL units are manufactured in the USA and tested prior to shipment.
Review the Packing Slip to Verify Contents
• Check the model number to ensure it is correct.
• Check that all factory options ordered are listed.
If any items listed on the packing slip do not match your order information,
contact WhisperKOOL Customer Service immediately.

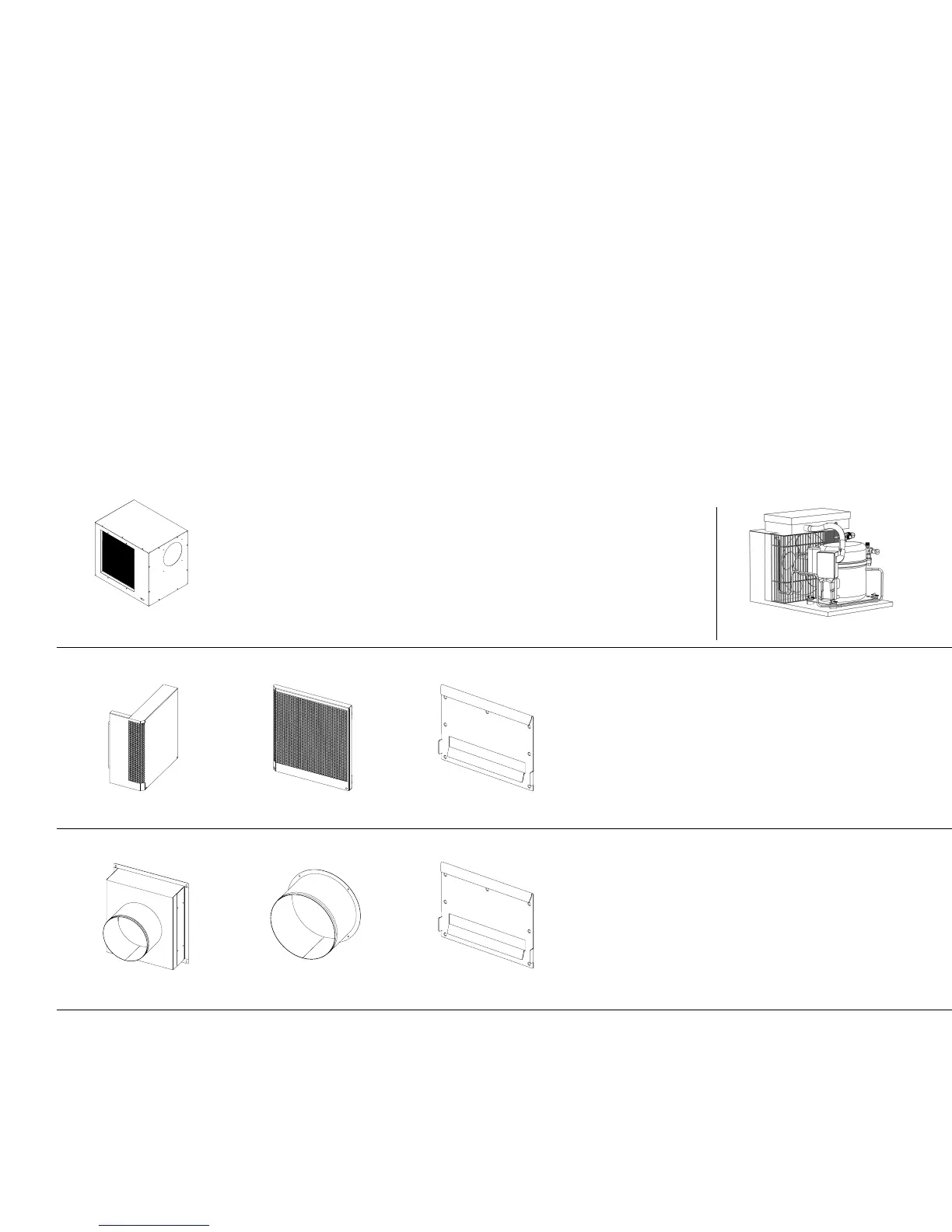

Check the Box for the following contents:
RECEIVING & INSPECTING THE SYSTEM
Please leave the unit in its original box until you are ready for installation. This will allow you to move the product
safely without damaging it. When you are ready to remove the product from the box, refer to the installation
instructions.
TIP: Save your box and all packaging materials. They provide the only safe means of transporting/shipping the unit.
(1) Side Grille
(1) 8” Return Air Plenum
(1) Filter Grille
(1)Supply Air Collar
(1) Mounting Bracket
(1) Mounting Bracket
Wall-Mount Accessory Kit
Ducted Accessory Kit
(1) Split System Warranty Checklist
(1) Platinum Split Owners Manual
(1) Warranty Registration Card
(1) 12 ft. Bottle Probe
(10) 6-32 3/8” Phillips Pan Head Screw
(1) Black Strain Relief
(1) Split System Warranty Checklist
(1) Platinum Split Owners Manual
(1) Warranty Registration Card
(1) 50 ft. Bottle Probe
(1) Remote Keypad
(1) 50 ft. Keypad Communication Cable
(2) Black Strain Relief
(10) 6-32 3/8” Phillips Pan Head Screw
(1) Platinum Split Evaporator Unit
(Fan Coil Unit) Unit
(1) Condensing Unit
(1) Installation Kit which includes:
(7) #14 2” Phillips Pan Head Screw
(1) 1/2” Drain Tube Connector
(1) 10 ft. 1/2” Drain Line
(1) 10 ½” piece of 1/4” od copper tubing
(1) 10 ½” piece of 3/8” od copper tubing
(1) 1/4” copper coupling
(1) 3/8” copper coupling
(1) 1/4” sight glass
(1) 1/4” lter drier
(1) 13’ Power Cord
Main Evaporator Box
Main Condensing Unit Box
