Page 30 | 1-800-343-9463
PS 020713
INSTALLING THE DUCTED CONFIGURATION

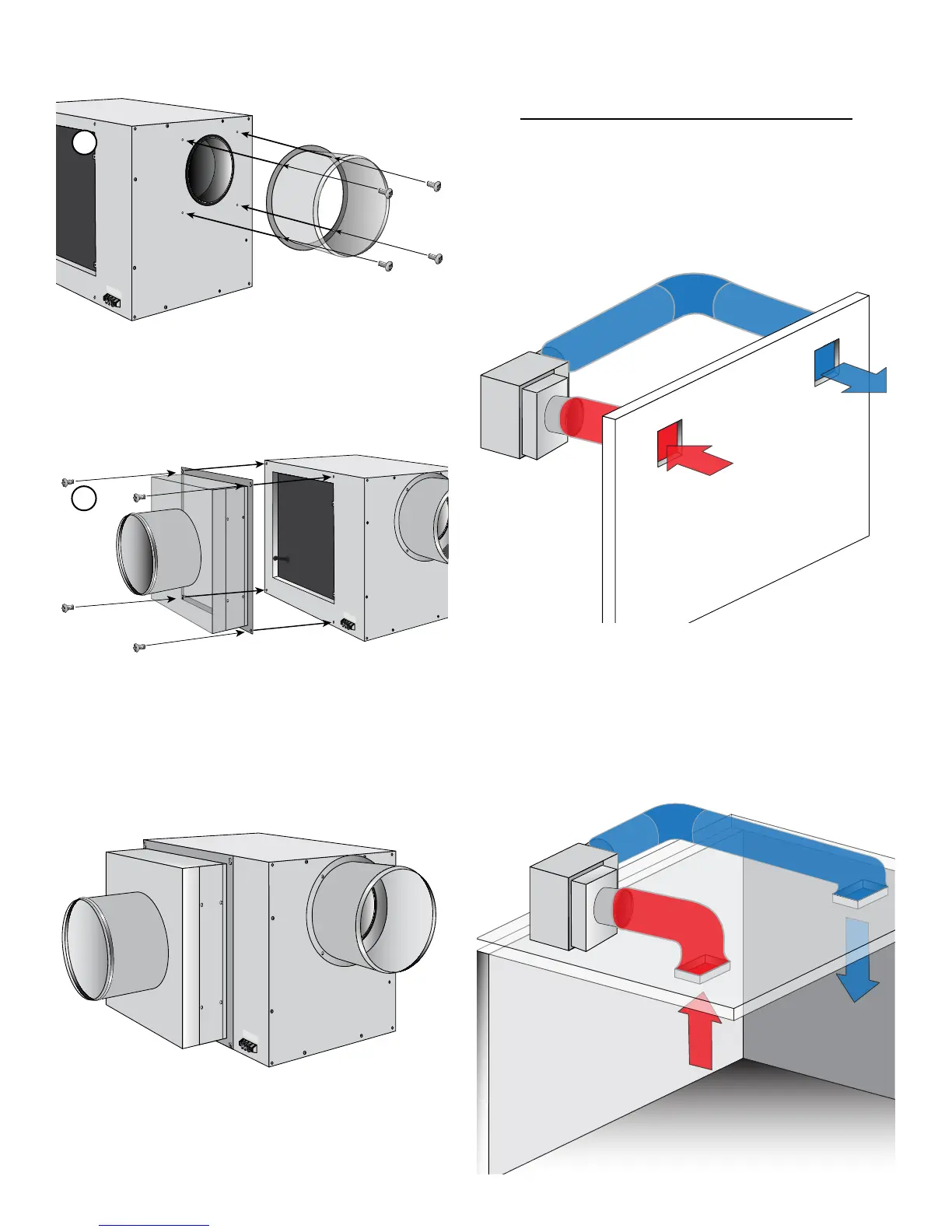

Secure the return air plenum by aligning the outer
corner holes with the holes on the Evaporator Unit
(Fan Coil Unit), followed by installing the four 6-32 3/8”
Phillips pan head screws in the four holes on the front
of the Evaporator Unit.
Install the Supply Air Collar by aligning the holes
with the Evaporator Unit (Fan Coil Unit) on the side
panel, followed by installing the four 6-32 3/8” Phillips
pan head screws in the four holes on the front of the
Evaporator Unit.
DUCTED
PLATINUM SPLIT
DUCT CONFIGURATIONS
1
2
Here are two options for ducting the Evaporator Unit (Fan
Coil Unit). Option 1 is to duct the system through the wall.
Option 2 is to duct the system through the ceiling. (All
turns require an elbow.)
Option 1
Option 2
NOTE: The top of the registers needs to be installed
with a minimum of six inches and a maximum of
eighteen inches from the ceiling.
