INSTALLING THE EVAPORATOR UNIT (FAN COIL UNIT)

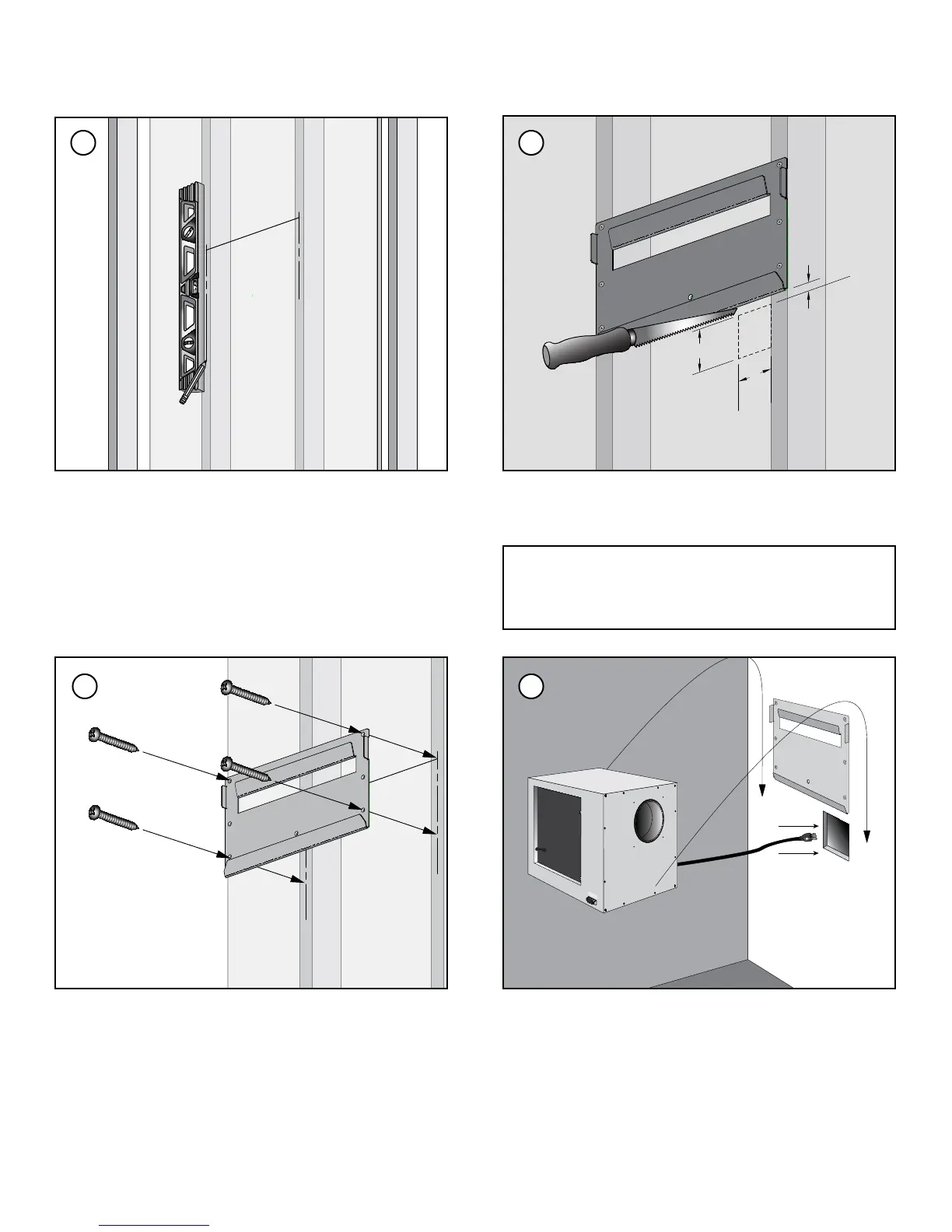

Cut a 3x3.75 inch access hole for routing the line set,
power cord, and drain line.
The wall is ready to have the Evaporator Unit (Fan Coil
Unit) installed.
NOTE: WhisperKOOL recommends elevating the
unit close to the install height.
3"
3.75"
0.75"
Route the power cord and drain line through the
access hole.
Locate the two desired wall studs. Mark the center
line on each stud vertically on the wall (14.5 inches
apart). Connect the two lines by using a level draw a
horizontal line at your desired height.
NOTE: The top of the unit needs to be installed
with a minimum of six inches and a maximum of
eighteen inches from the ceiling. ( This will ensure
the unit is accessable for servicing, as needed.)
Drill two 5/32” pilot holes for the top mounting
screws and then place the mounting plate on the wall
and screw in the #14 screws. Finish drilling the four
remaining 5/32” pilot holes, followed by screwing in
four #14 screws.
1 3
42
