If you have a system with a remote keypad, please review this section for installation.
Note: 50 feet of communication line is included, the keypad can be installed up to 300 line feet away. Longer lengths
of communication line can be ordered by calling 1-800-343-9463 ext. 751.

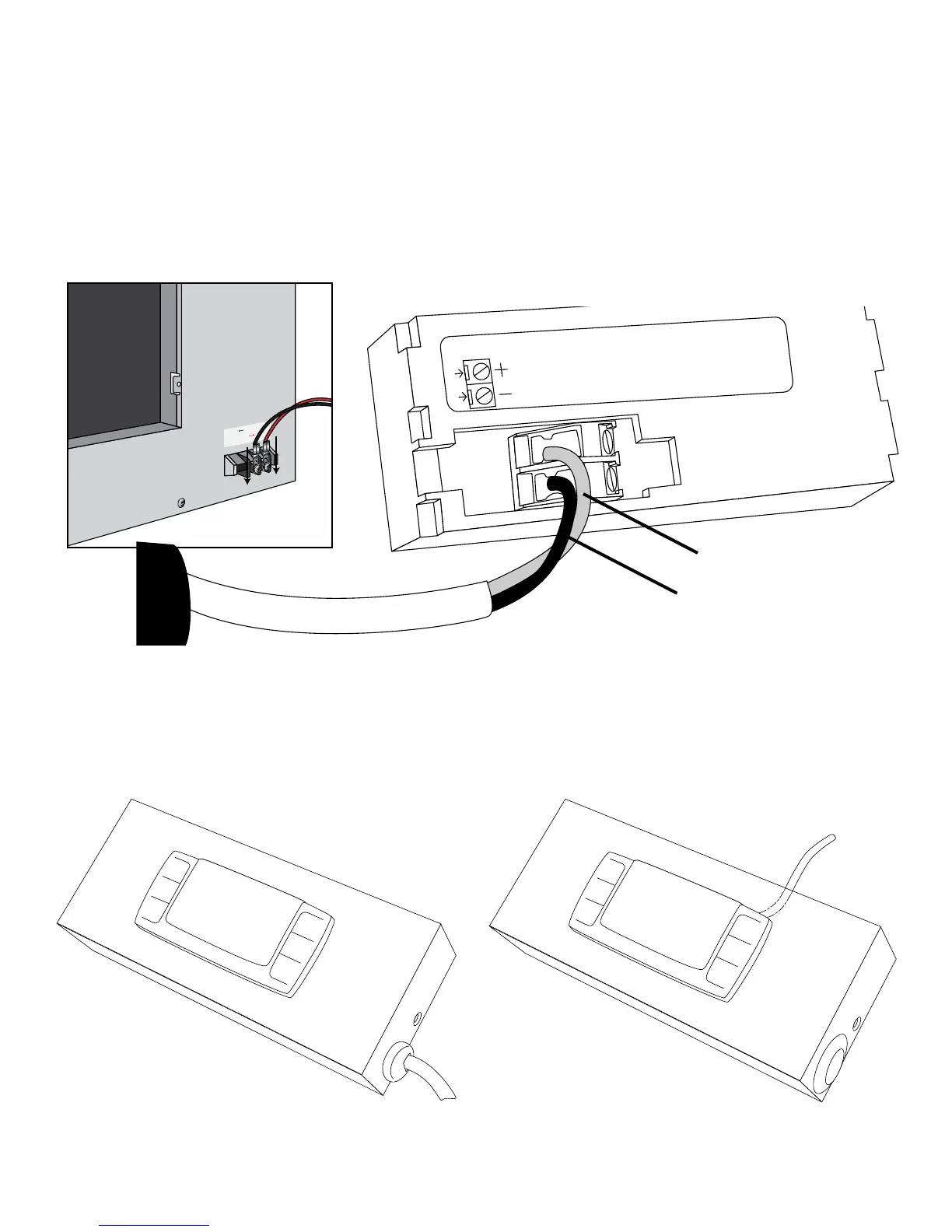

Run your communication line to the desired location, be sure not to have any harsh kinks in the lines route. Attach the
connection wire as shown below, with the red wire in the upper connection slot and the black wire in the lower slot. It
is also important to run your bottle probe line at this time,
To install the remote keypad box, remove the rear mounting bracket and secure the bracket to the wall in the desired
location. When running the communication line through a wall, be sure to run the line in the rear mount position and
insert the supplied plug in the side hole on the box. Reattach the keypad box to the bracket.
Red Wire
Black Wire
REMOTE KEYPAD: INSTALLATION AND CONFIGURATION
Connection wire in Side Mount conguration Connection wire in Rear Mount conguration
Black
Red
