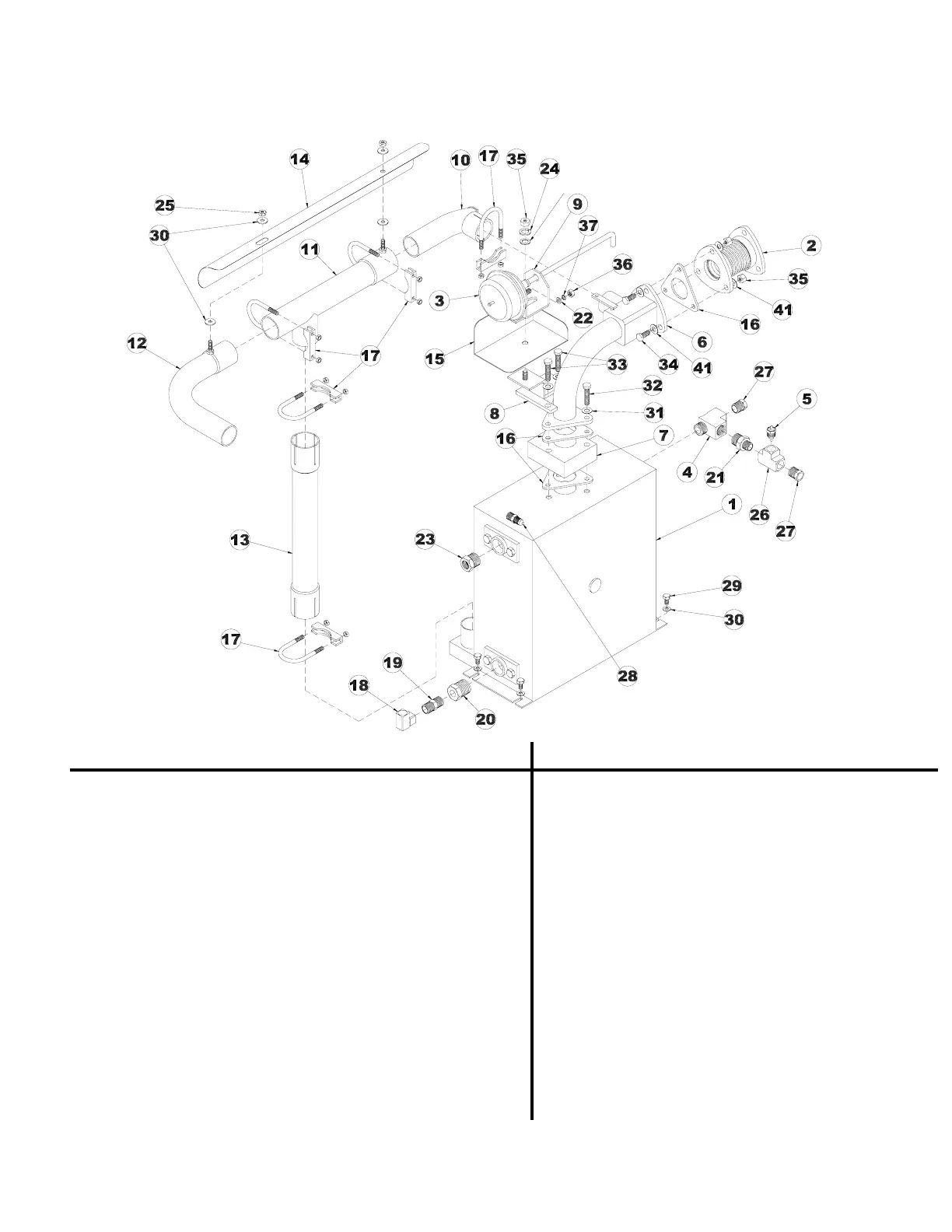

HE1900 - HEAT EXCHANGER ASSEMBLY
1 HE1900 HEAT EXCHANGER WELDED ASSEMBLY
2 J261 FLEX EXHAUST COUPLING
3 A044 VACUUM ACTUATOR ASSEMBLY
4 E252 1/2” EXTRUDED STREET TEE
5 A038 TEMPERATURE SENSOR VDO 120°-300°
6 J404 EXHAUST DIVERTER
7 HE1900-S 1.25” HEAT EXCHANGER SPACER
8 J402 ACTUATOR SUPPORT BRACKET
9 B054 VACUUM ACTUATOR BRACKET**
10 J213 ENGINE EXHAUST SWEEP
11 J211 EXHAUST MANIFOLD COLLECTOR
12 L010 1-1/2” MUFFLER 90° SWEEP
13 J242 DOUBLE FLARED EXHAUST CONNECTOR
14 J212 EXHAUST HEAT SHIELD
15 J229 ACTUATOR HEAT SHIELD
16 D0026 EXHAUST MANIFOLD GASKET
17 B036 1-1/2” MUFFLER CLAMP
18 E023 1/4” EXTRUDED 90° ELBOW
ITEM# / P/N / DESCRIPTION ITEM# / P/N / DESCRIPTION
19 E050 1/4” HEX NIPPLE
20 E081 1/2” MPT X 1/4” FPT BUSHING
21 E068 1/2” X 3/8” HEX NIPPLE
22 D052 ALUMINUM RIVET WASHER
23 E027 1/2” MPT X 3/8” FPT BUSHING
24 D065 5/16” LOCK WASHER
25 D034 1/4-20 HEX NUT
26 E019 3/8” EXTRUDED TEE
27 E016 3/8” MPT X 1/4” FPT BUSHING
28 E195 1/4” MPT X 1/4” 37° JIC
29 D054 1/4-20 X 1/2” HEX BOLT
30 D010 1/4” FLAT WASHER
31 D064 5/16” FLAT WASHER
32 D181 5/16-18 X 2” HEX BOLT
33 D180 5/16-18 X 2-1/4” HEX BOLT
34 D053 5/16-18 X 1” HEX BOLT
35 D075 5/16-18 HEX NUT
36 DM003 M5 X .8 HEX NUT
37 D044 #10 LOCK WASHER
