White Magic PRO 1900 - Tl015 - Standard 11” Wand

White Magic Carpet Cleaners Accessories Catalog
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

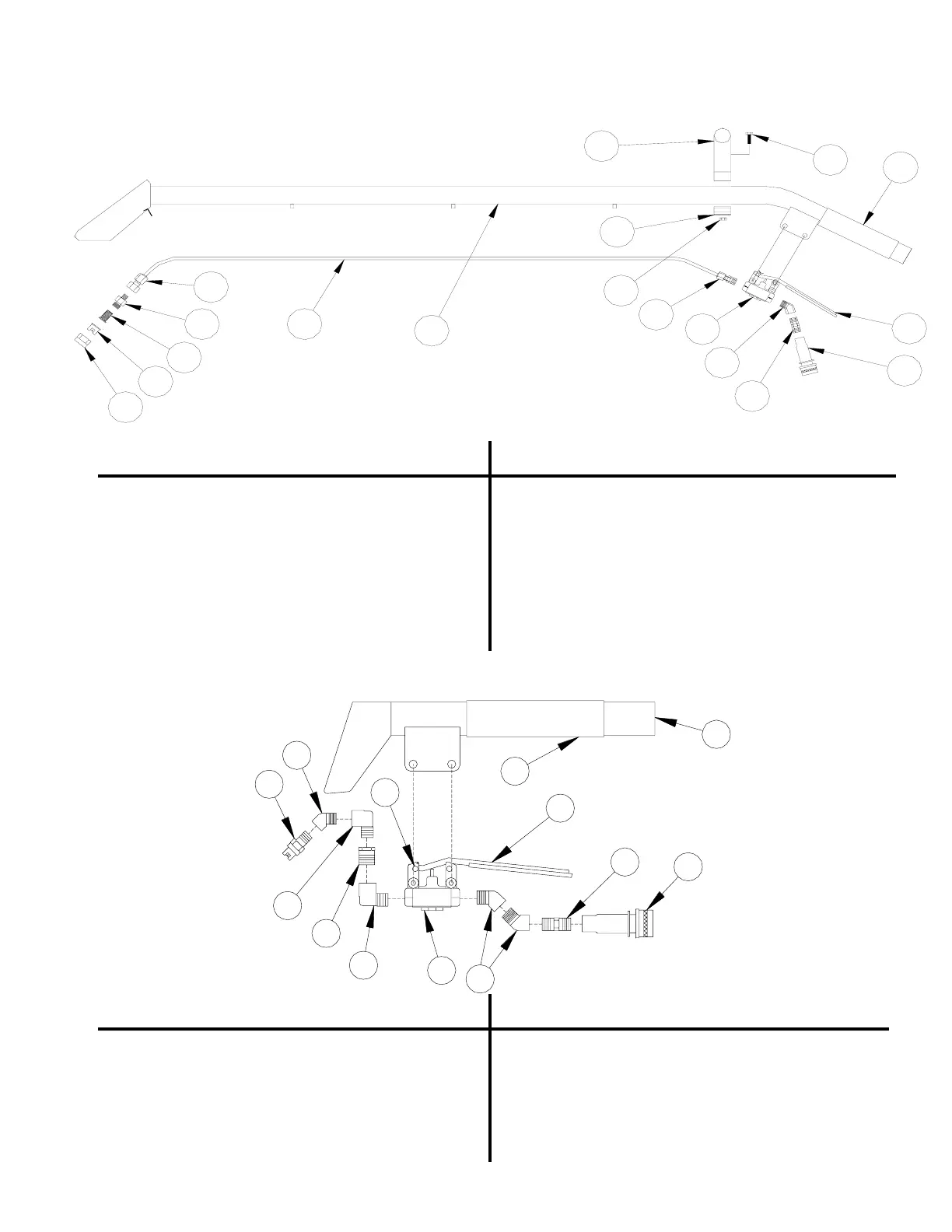

TL015 - STANDARD 11” WAND
1 B040-3 HANDLE TOP SS
2 D072 1/4-20 X 1/2” HEX BOLT SS
3 B028 1-1/2” BLACK WAND GRIP
4 B042 WAND VALVE TRIGGER
5 B003 1/4” FEMALE QUICK DISC.
6 E050 1/4” HEX NIPPLE
7 E040 1/4” EXTRUDED STRT 45°
8 B039-3 PARAPLATE VALVE
9 B088 1/4” MPT X 1/4” COMP.
10 D015 1/4-20 HEX NUT SS
11 B040-3B HANDLE BOTTOM SS
12 TL015-1 WAND WELDED UNIT
13 W009 1/4” SS TUBING
14 B089 1/4” FPT X 1/4” COMP.
15 B071 NOZZLE BODY
16 B070 IN LINE SCREEN
17 B069 SPRAY NOZZLE
18 B071-1 NOZZLE CAP
ITEM# / P/N / DESCRIPTION ITEM# / P/N / DESCRIPTION
TL031 - STAIR TOOL
8
11
12
1
5
4
10
9
2
3
7
6
13
ITEM# / P/N / DESCRIPTION ITEM# / P/N / DESCRIPTION
1 TL032-1 STAIR TOOL WELDED ASSY
2 B028 1-1/2” BLACK WAND GRIP
3 B042 WAND VALVE TRIGGER
4 E050 1/4” HEX NIPPLE
5 B003 1/4” FEMALE QUICK DISC.
6 E040 1/4” EXTRUDED STRT. 45°
7 B039-3 PARAPLATE VALVE
8 E024 1/4” EXTRUDED STREET 90°
9 E020 1/4” X 1/8” BUSHING
10 E018 1/8” EXTRUDED STREET 90°
11 B080 VEE JET NOZZLE
12 E134 1/8” EXTRUDED STREET 45°
13 D001 5/16-18 X 1/2” B.H.C.S. SS
6-E1
