13
2003 Chevy
Fuel Line Kit Installation Procedure
07-01-03
1.) Install White Magic Inc.’s
Signature Series machine us-
ing installation procedure and
assure all safety precautions
have been taken. If the bat-
tery has already been in-
stalled, remove and relocate
battery away from area.

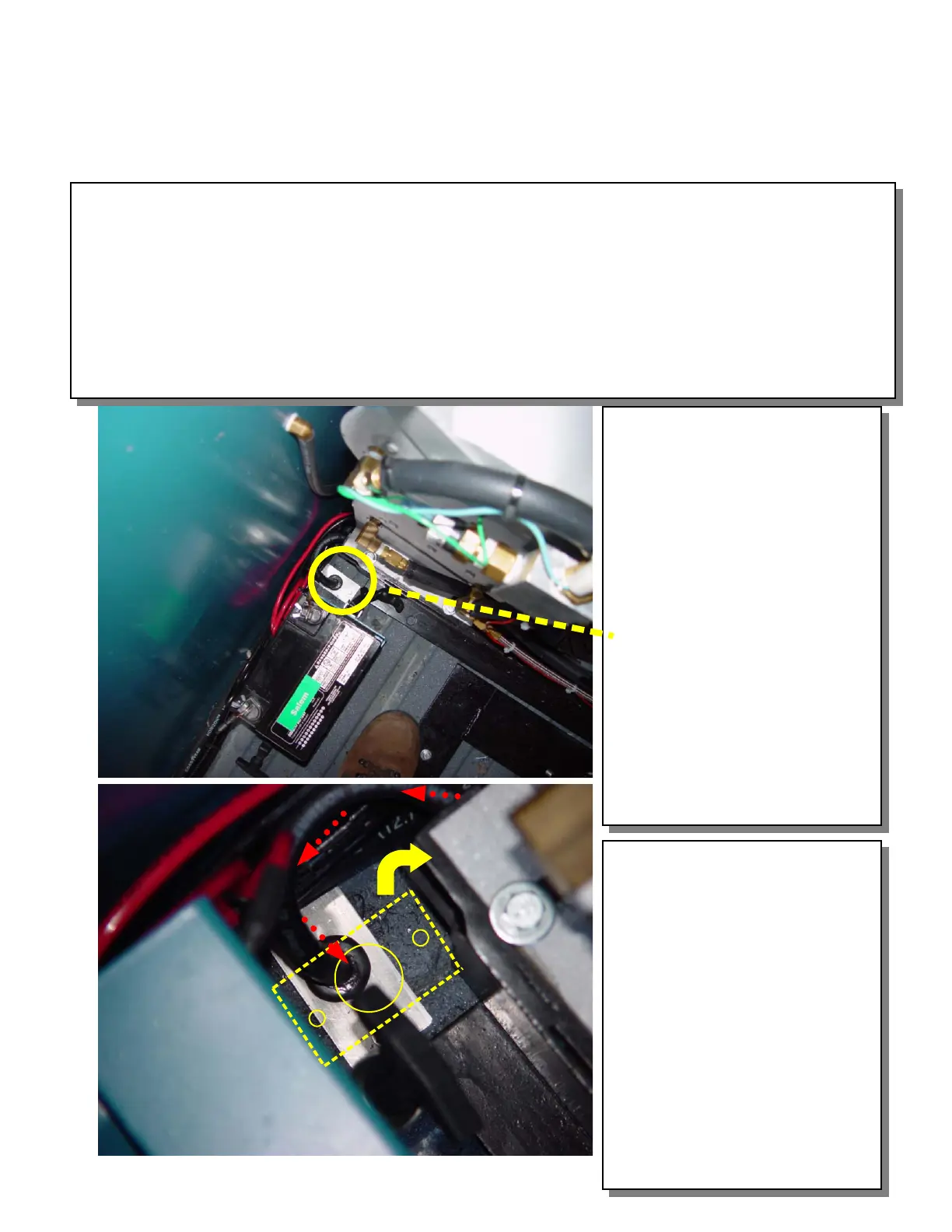

2.) *Using extreme caution
as the van’s gas tank is in
close proximity, drill a 7/8”
hole through the floor of the
van near the rear left corner of
the machine. (Fig. 1)
3.) Mount (PN#J545) bracket
to floor of van using (2)
(PN#D028) Tek Screws. The
bracket may be mounted
across the floor slots as shown
or in them. (Fig. 2)
4.) Run the fuel line through
the (PN#A020) grommet and
bracket then out of the floor of
the truck. Use silicone spray
to move grommet over hose
more easily. (Fig. 2)
Fig. 1
Fig. 2
***IMPORTANT***
As of 09/09/03 the fuel line kit (PN#A500) can be used only with a White Magic Signa-
ture Series machine (on machines manufactured after 07-01-03, w/ S/N# 237066 and
above.) A special fuel solenoid is required in conjunction with this kit to prevent dan-
gerous fuel spills or leaks. Currently, White Magic Signature Series Machines utilize
these solenoids. In the future, all White Magic Slide-In Systems will be fitted with these
solenoids. However, the factory should be consulted if the machine being installed was
shipped without a (PN#A500) fuel line kit as original equipment.
