Page 13 2019
6.1.2 To remove the Link (16) & Swinging Arm (14) from the Main Frame
(15).
Whilst referencing figure 3 & 4, using the 6mm Hex Key, unscrew and remove the
M15 x 26mm Flanged alloy Screws (8 and 9) from the front of the H Link (16).
Next, using the 6mm Hex Key, unscrew and remove the two M15 x 27mm Flanged
alloy Screws (22) at the rear of the Chain-stays (14). Be careful to retain all the
Shield Washers (Items 2 & 3, Figure 7) ready for re-assembly.
To separate the Seat-stays (18) from the H Link (16) and Main Frame (15), whilst
referencing figure 4, using the 6mm Hex Key, unscrew and remove the two M15 x
26mm Flanged alloy Screws (13) at the front of the Seat-stays (18). The Seat-
stays (18) may now be removed from the H Link (16). Finally to remove the Shock
Extender (7) from the H Link (16), using the 6mm Hex Key, unscrew and remove
the two M15 x 25mm Flanged alloy Screws (17). Be careful to retain all the Shield
Washers (Items 2 & 3, Fig 7) ready for re-assembly.
WHYTE Service Manual

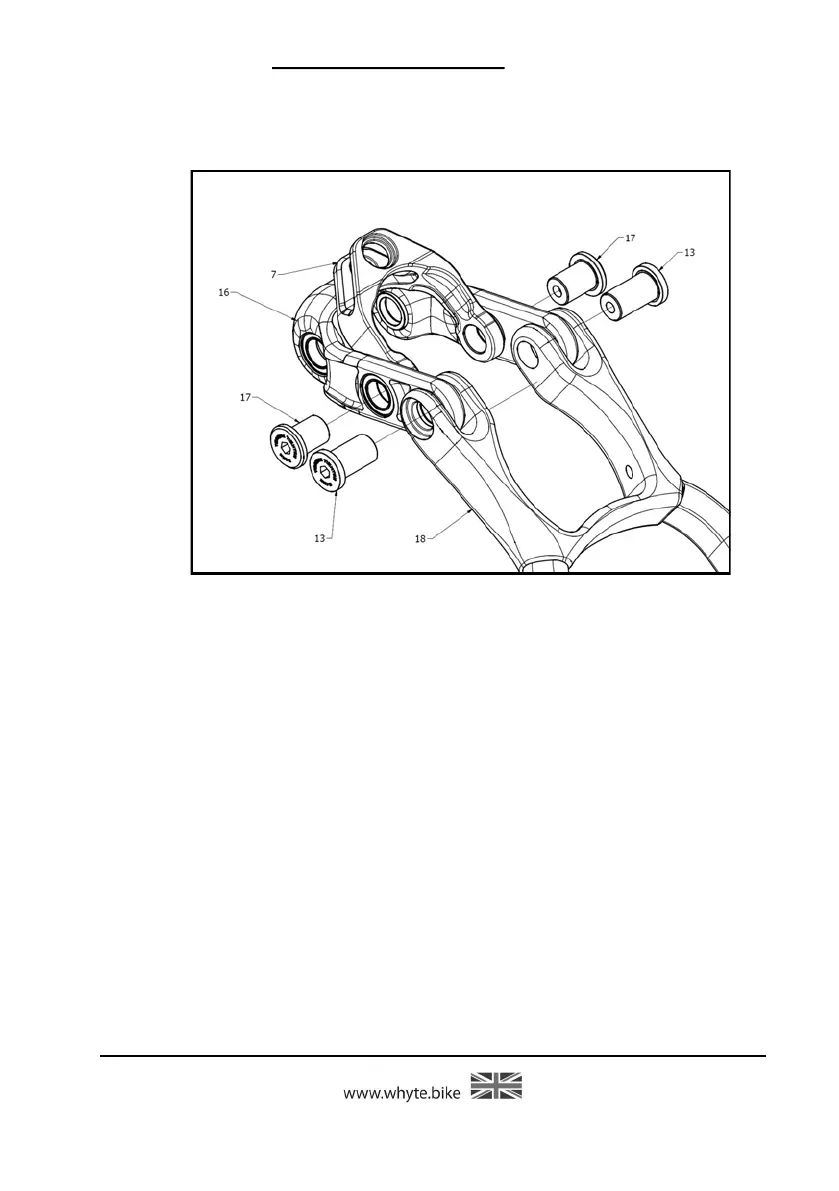

Figure 4: Disassembly of the Rear Suspension (Third Stage)
