Page 26
2019
WHYTE Service Manual
8.0: WHYTE INTER GRIP
SEAT CLAMP SERVICE
Tools Required: 2x 5mm
Hex Keys
Small size
flat blade screwdriver
Torque
Wrench (Ranging from 3Nm to
15Nm)
KF LGEP2
or Castrol Spheerol AP3 or Finish
Line Teflon White Lithium
Complex grease

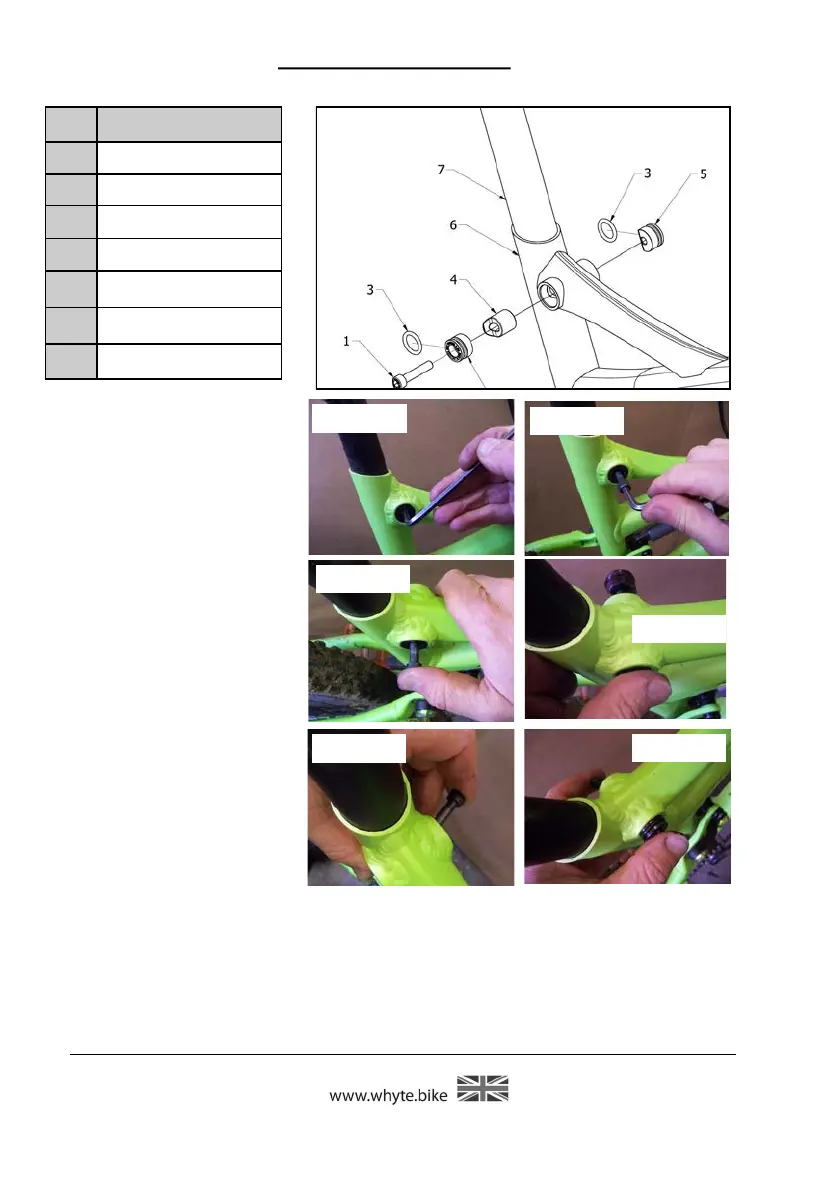

Reference figures 21 to 35. To
service the Inter Grip seat
clamp, carefully follow these
procedures otherwise there is a
risk of damaging some of the
components.
Especially remove and re-
place the seat-post (7) in the
specified order.
Figures 22 to 23. From the right side of the Main Frame (6) unscrew & remove the
M6 x 30mm long Capscrew (1). Replace that with the longer capscrew and screw
loosely into the Threaded Sleeve (5).
Figures 24 & 25. Push the Threaded Sleeve (5) all the way out of the opposite side of
the Main Frame (6).
Figures 26 to 27. Move to the left side of the Main Frame (6). Place the M6 x 30mm
long Capscrew (1) diagonally through the Grip Pad (4) and onto the Plain Sleeve (2).
Item: Description
1 M6 x 30mm Capscrew
2 Plain Sleeve
3 ‘O’ ring
4 Grip Pad
5 Threaded Sleeve
6 Main Frame
7 Seat Post
Figure 21:
Inter Grip Seat Clamp
Figure 27
Figure 26
Figure 25
Figure 24
Figure 23
Figure 22
