Whyte E-150 - To Remove the Chain-Stays and Bearings from the Main Frame

Page 14
2019
WHYTE Service Manual
6.1.3 To remove the Chain-stays (14) and Bearings (20) from the Main
Frame (15).
Whilst referencing figure 5, using the 5mm Hex Key, partially unscrew the M6 x
20mm long Capscrew (10) from the Pivot Pin 80mm long, expanding collet, M15
thread (12). Using the 6mm Hex Key, unscrew and remove the Pivot Pin 80mm
long, expanding collet, M15 thread (12). The capscrew (10) may now be completely
removed, to allow the tapered sleeve (11) to be released from the collet (12).
The Chain-stays (14) may now be removed from the Main Frame (15). Be careful to
retain the two Shield Washers (19) ready for re-assembly.
Using the press tools shown in Figure 19, extract the BOLU-WB0025
bearings (20) from both sides of the Main Frame (15). Align the removal tool care-
fully with the slots in the Spacer (21).

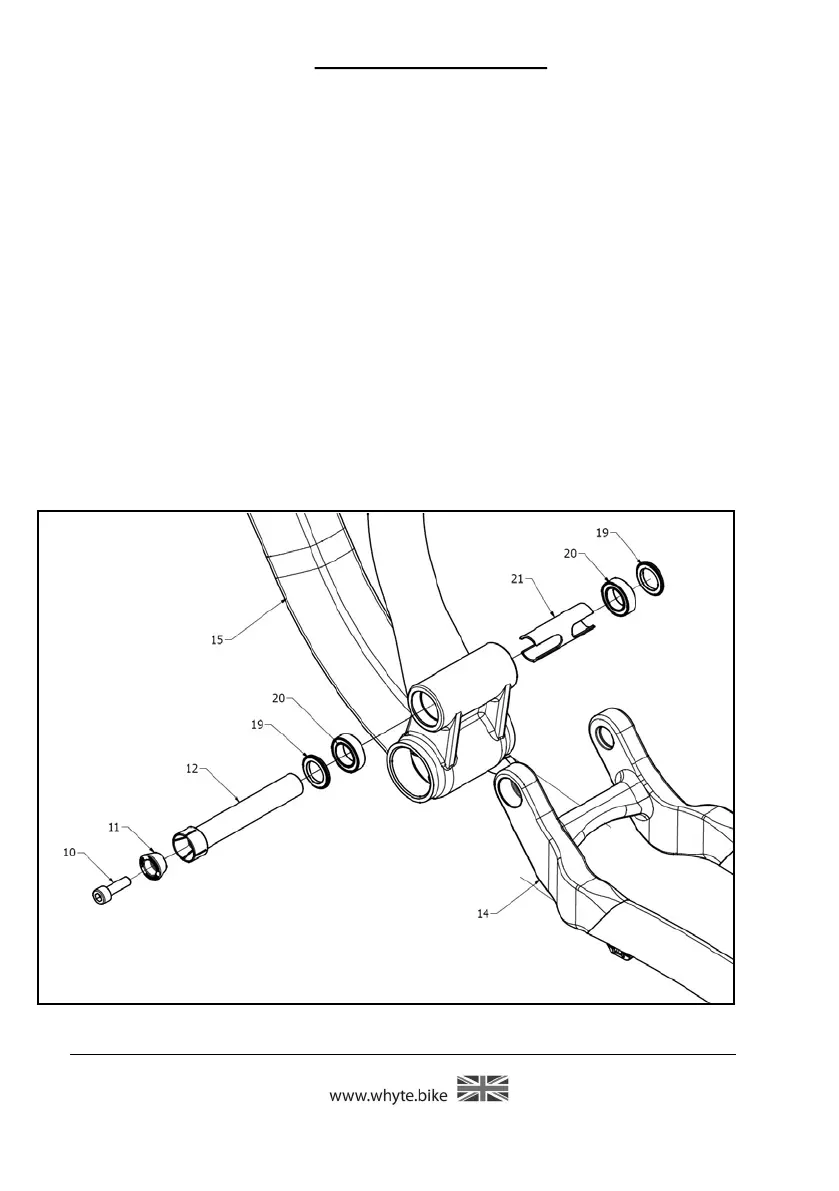

Figure 5: Disassembly of the
Rear Suspension (Third Stage)
