Page 33 2019
WHYTE Service Manual
10.1: Location Of Bosch Battery On-Off Button.
Note: Before making adjustments to the Bosch e-bike system, please read and understand all
relevant documentation from Bosch which have been included with your Whyte eMTB.
IMPORTANT: For all other Torque settings, refer to the specific manufac-
turers information bundled with this manual, or alternatively, refer to the
specific manufacturers website for further information.
Tools Required: Torx T-25
Torque Wrench (Ranging from 3Nm to 15Nm)
(See Figure 54 and Figure 56) If you are required to start the eBike system using
the On/Off button located on the Bosch Battery (6), follow the instructions in Sec-
tion 10.1 to remove the Bottom Cover (2) from the Down Tube (3). You will then
reveal the Access Hole (7) in the Down Tube (3). Press the On/Off button to Start
the e-bike system. Refit the Bottom Cover (2) as described in Section 10.0

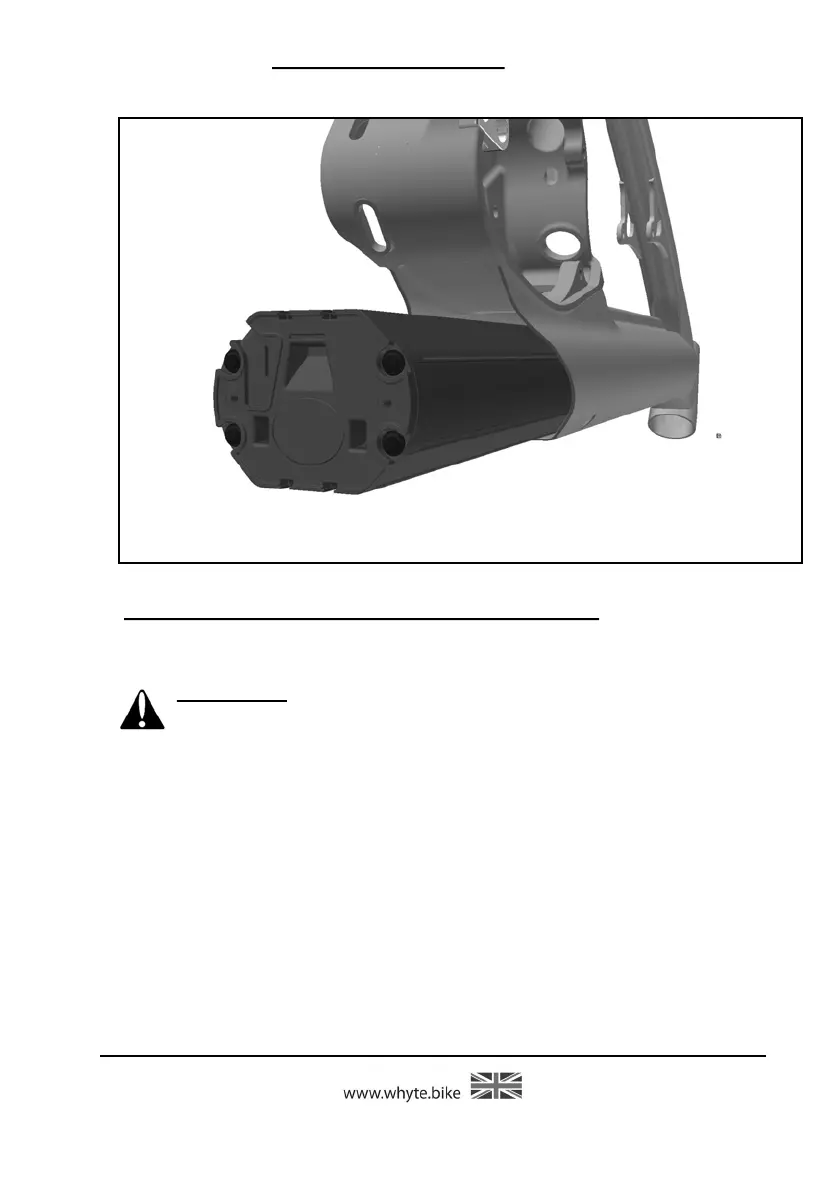

Figure 55: Bosch Battery:
Correct Orientation for Install
