10.0: Removal Of Battery
Note: Before removing the battery from your Whyte eMTB, please read and understand all rele-
vant documentation from Bosch. To ensure that the battery is not being charged, disconnect
the charger from the remote battery port.
IMPORTANT: For all other Torque settings, refer to the specific manufactur-
ers information bundled with this manual, or alternatively, refer to the specif-
ic manufacturers website for further information.
Tools Required: Torx T-25
Torque Wrench (Ranging from 3Nm to 15Nm)
Tip: Take care to position the bicycle in a suitable work stand clear of the ground to
enable the removal of the battery.
To remove the battery from the bicycle frame, using the T-25 Torx tool, remove the
T-25 Torx bolt (1) from the Bottom Cover (2). It may be necessary to clean out the
head of the T-25 Torx bolt (1) if the bike has been ridden, so that the T-25 Torx
tool can fully function and undo the bolt. It is important to make sure the T-25 Torx
tool fits into the head of the T-25 Torx bolt (1) so as not to ‘round off the head’ of
the T-25 Torx bolt (1) and prevent the removal.

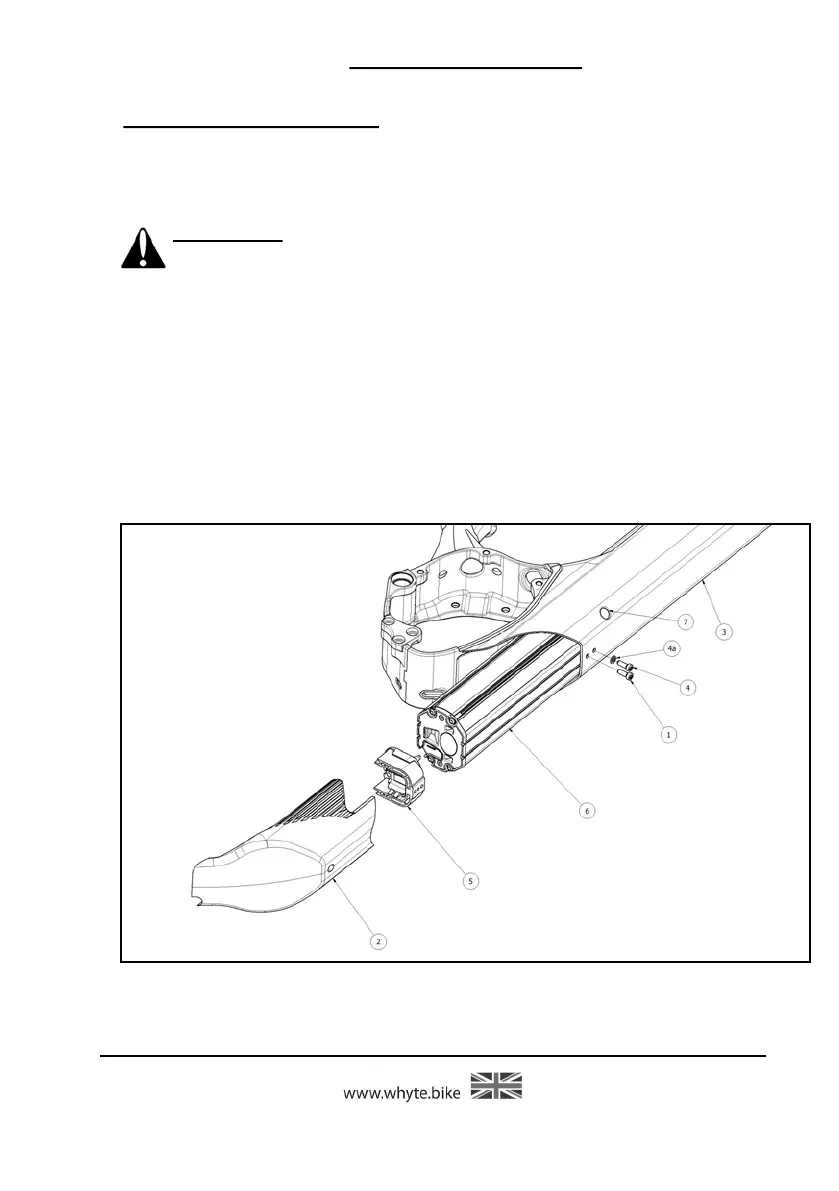

Figure 54: Bosch Battery:
Removal and Reinstallation
WHYTE Service Manual
