6.2: STRIPPING AND REASSEMBLING OTHER BEARINGS.
(Reference figures 6 & 7)

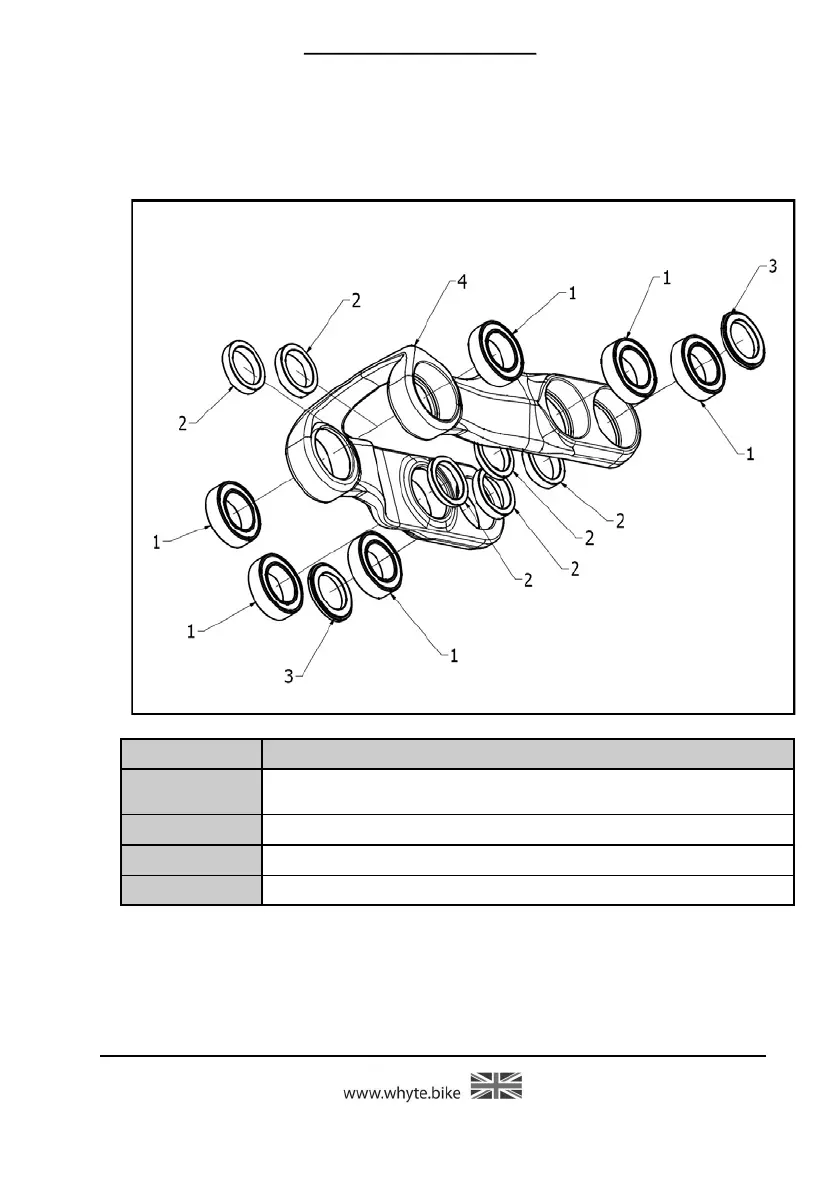

Figure 6: Assembly of Link
Item Description
1
ID 15mm, OD 24mm, Width 5mm, bearing
(BOLU-WB0025)
2 Shield washer (O.D. 20mm)
3 Shield washer (O.D. 23mm)
4 Various centre-to-centre dimensions Alloy Link Bodies
WHYTE Service Manual
