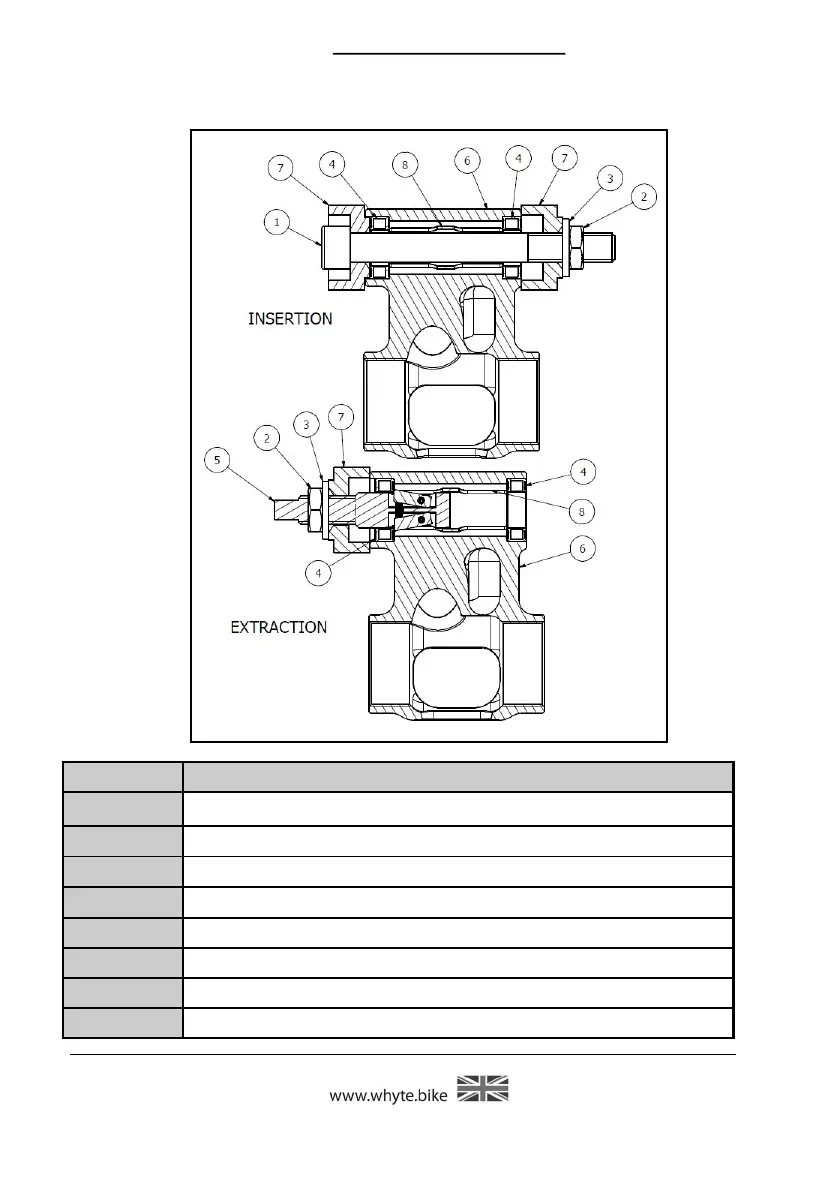

Figure 9: Bearing Insertion & Extraction 6802-2RS-MAX
(Above Main Frame Bottom Bracket)
Item: Description.
1 M8 Capscrew ISO4762 55 long
2 M12 Nut ISO 4035
3 I. D. 12 Washer ISO 7089
4 BOLU-WB0025 Bearing
5 BOLU-WB0025 Bearing Tool 1
6 Mating Component (ie: Bottom Bracket Yoke)
7 BOLU-WB0025 Bearing Tool 2
8 Internal Bearing Spacer
To Next Page
