Kunststoffschweißtechnik
Foundation: 2207, 2208 DIN 16932 German association for welding
Use for: 5100 OD 200 - 450
5500 OD 200 - 500
1 bar on manometer: 141 N
PE 80 The value for heating element temperature is between 200° C - 220° C.
e sma
er
e p
pe wa
e
g
er
e
empera
ure.
PE 100 The standard value for heating element temperature is 220° C.
Increase the change-over time and the welding pressure time at PE 100 as fast as possible !
time to
change- reach full
over welding cool-down time
0,15 (PE) time pressure pressure in
Tdesired
temperature
time
pipe pipe SDR bead-up circular heat-up max. time welding cool-
diameter wall pressure bead time change- to reach pressure down
OD (s) [bar] min. [s] over welding [bar] time
[mm] [mm] [mm] time pressure [min]
[s] [s]
200 4,9 41,0 4 1,0 49 5 5 4 7
200 6,2 33,0 5 1,0 62 6 6 5 9
200 7,7 26,0 5 1,5 77 6 6 5 11
200 9,6 21,0 7 1,5 96 7 7 7 13
200 11,4 17,6 8 1,5 114 8 8 8 15
200 11,9 17,0 8 1,5 119 8 8 8 16
200 14,7 13,6 10 2,0 147 9 9 10 19
200 18,2 11,0 12 2,0 182 10 11 12 23
200 22,4 9,0 14 2,5 224 11 12 14 28
200 27,4 7,4 16 3,0 274 13 15 16 34
225 5,5 41 5 1,0 55 5 5 5 8
225 6,9 33 6 1,0 69 6 6 6 10
225 8,6 26,0 7 1,5 86 7 7 7 12
225 10,8 21,0 8 1,5 108 8 8 8 15
225 12,8 17,6 10 2,0 128 8 8 10 17
225 13,4 17 10 2,0 134 8 9 10 18
225 16,6 13,6 12 2,0 166 9 10 12 21
225 20,5 11,0 15 2,5 205 10 12 15 26
225 25,2 9,0 17 2,5 252 12 14 17 31
225 30,8 7,4 20 3,0 308 14 16 20 38
250 6,2 41 6 1,0 62 6 6 6 9
250 7,7 33 7 1,5 77 6 6 7 11
250 9,6 26 8 1,5 96 7 7 8 13
250 11,9 21,0 10 1,5 119 8 8 10 16
250 14,2 17,6 12 2,0 142 9 9 12 19
250 14,8 17,0 12 2,0 148 9 9 12 19
250 18,4 13,6 15 2,0 184 10 11 15 23
250 22,7 11,0 18 2,5 227 11 13 18 28
250 27,9 9,0 21 3,0 279 13 15 21 34
250 34,2 7,4 25 3,0 342 15 18 25 42
in welding area

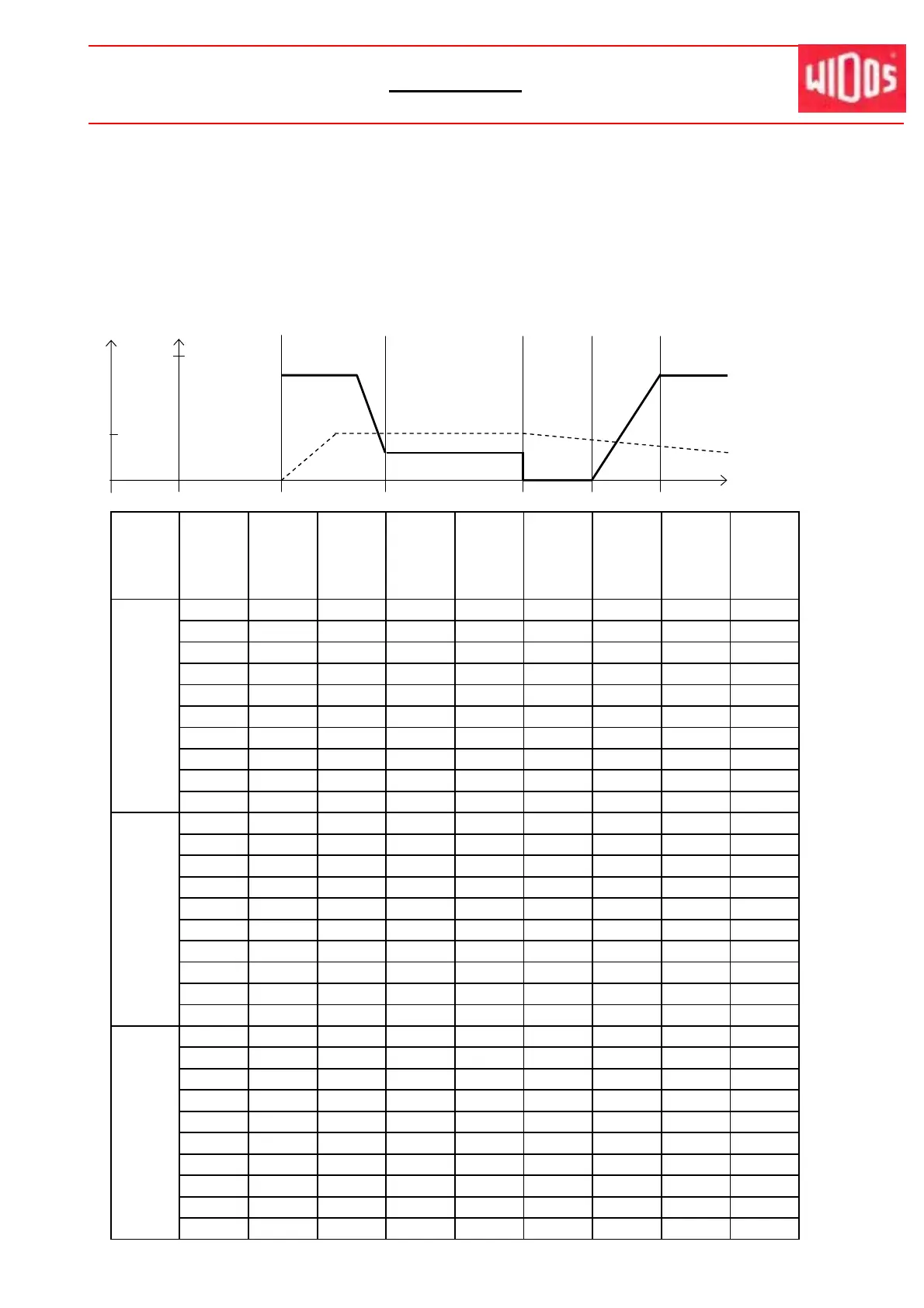

Table for PE
bead-up heat-up
Additional to the given bead-up force and to the welding force the moving force of the support must be added !
welding area
P (N/mm²)
17.02.2014 Working instructions WIDOS 5500 Page 26/ 1 of 48
