1. Description of product
This chapter gives important basic information about the product and its prescribed use.
All technical details of the machine are put together as a general arrangement.
1.1. Usage and purpose-oriented use
The WIDOS 5500 has been designed for heating element butt welding of pipes and fittings out
of PE, PP and PVDF with a diameter range of Ø = 200 - 500.
(Standard diameters : 200 / 225 / 250 / 280 / 315 / 355 / 400 / 450 / 500)
It is a machine for construction sites and particularly designed for the usage on-site, as well as
in the workshop.
For this reason, the frame is kept small so that it can be used even under difficult conditions
(e.g. ditch).
All use going beyond is not purpose-oriented.
The manufacturer is not responsible for damages caused by misuse.
The risk is held only by the user.
Also part of the purpose oriented use is
respecting all the indications of the working instructions and
performing the inspection and maintenance works.

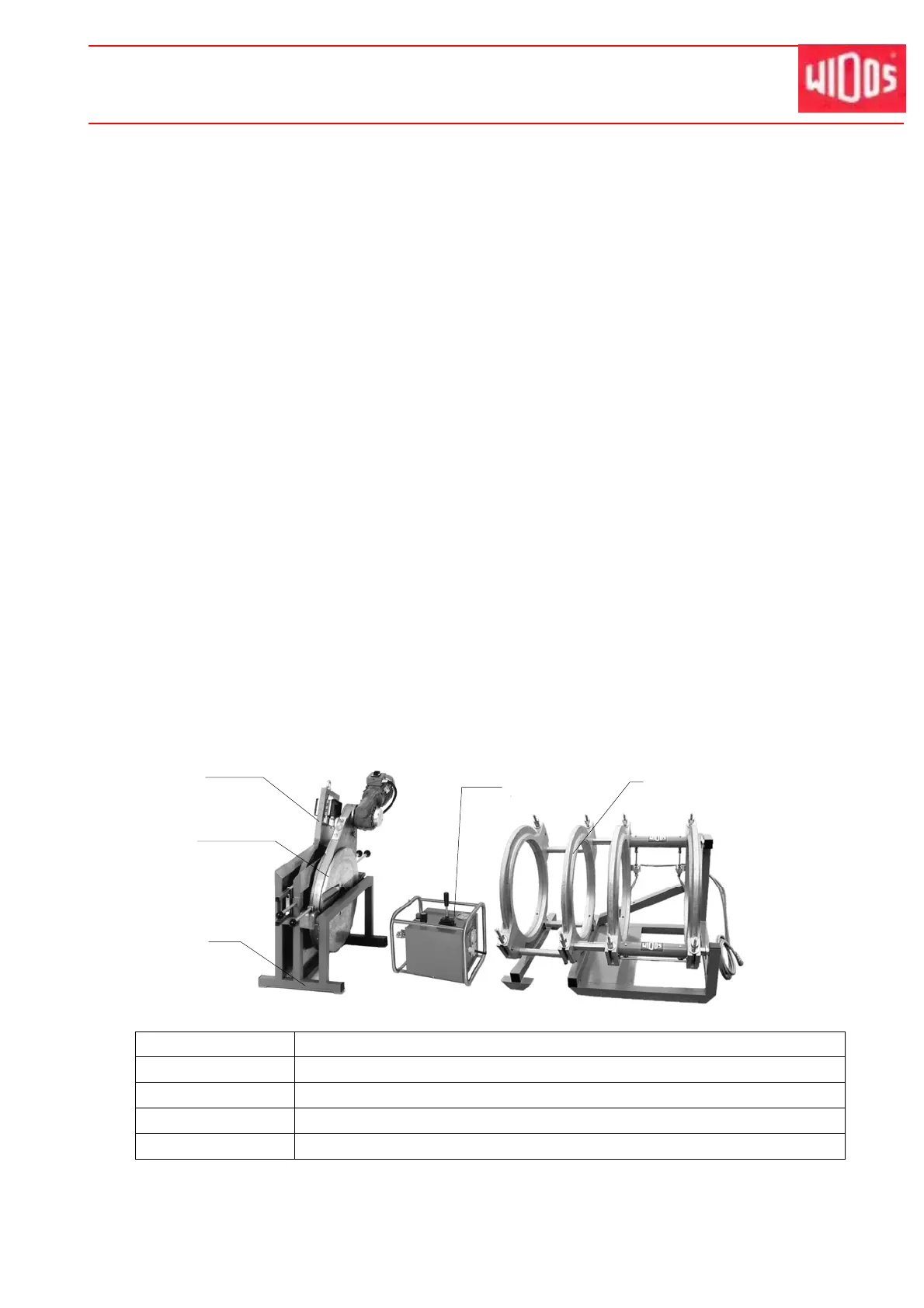

1.2. Machine overview
1
Hydraulic aggregat
2 Heating element
3 Planer
4 Protective box
5 Basic machine with clamping devices
1
5
2
3
4
