widos 5500 - Page 28

Kunststoffschweißtechnik
Foundation: 2207, 2208 DIN 16932 German association for welding
Use for: 5100 OD 200 - 450
5500 OD 200 - 500
1 bar on manometer: 141 N
PE 80 The value for heating element temperature is between 200° C - 220° C.
Th
e sma
ll
er
th
e p
i
pe wa
ll
th
e
hi
g
h
er
th
e
t
empera
t
ure.
PE 100 The standard value for heating element temperature is 220° C.
Increase the change-over time and the welding pressure time at PE 100 as fast as possible !
time to
change- reach full
over welding cool-down time
0,15 (PE) time pressure pressure in
Tdesired
temperature
time
pipe pipe SDR bead-up circular heat-up max. time welding cool-
diameter wall pressure bead time change- to reach pressure down
OD (s) [bar] min. [s] over welding [bar] time
[mm] [mm] [mm] time pressure [min]
[s] [s]

in welding area

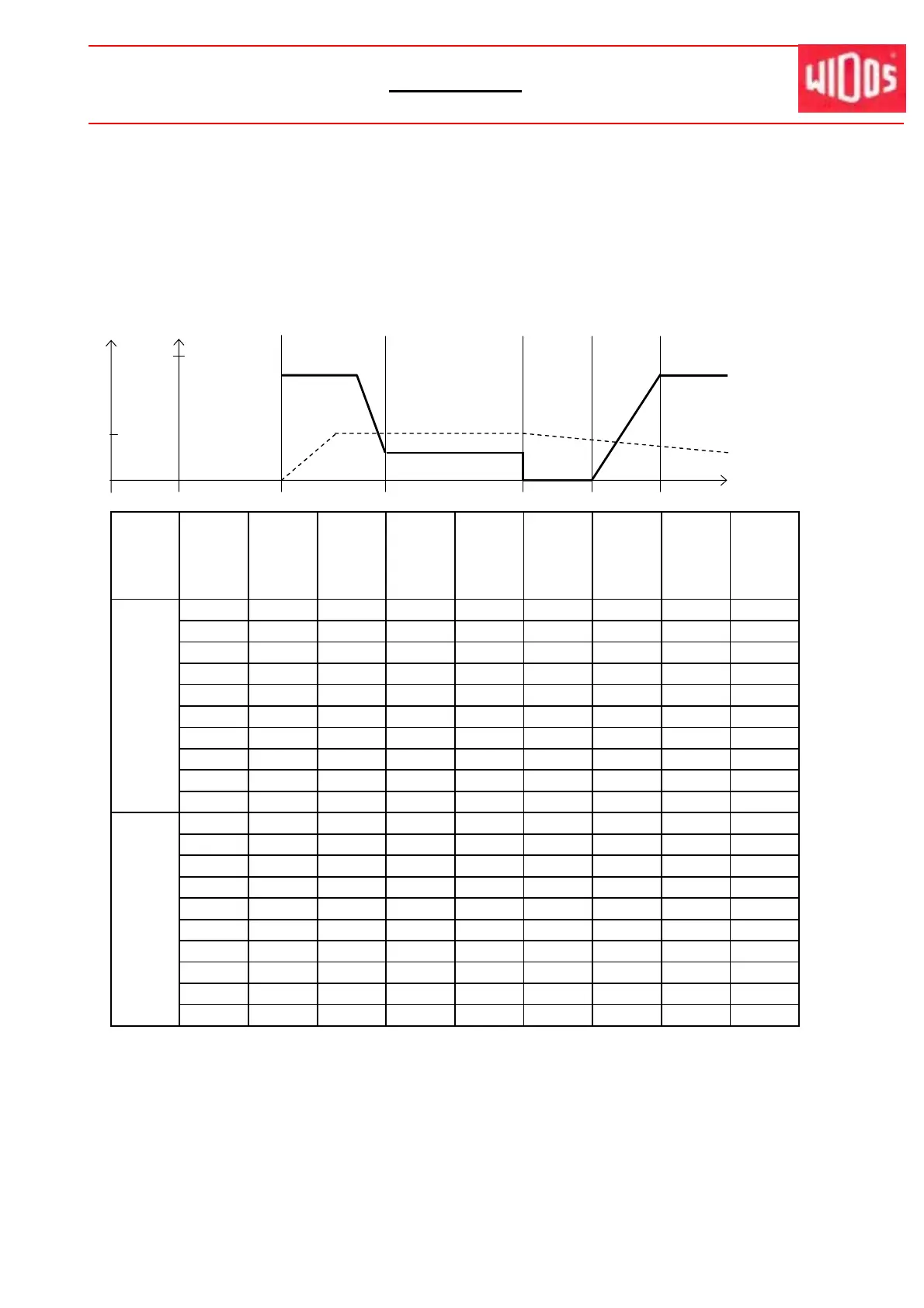

Table for PE
bead-up heat-up
Additional to the given bead-up force and to the welding force the moving force of the support must be added !
welding area
P (N/mm²)
400 9,8 41 13 1,5 98 7 7 13 13
400 12,3 33 16 2,0 123 8 8 16 16
400 15,3 26,0 20 2,0 153 9 9 20 20
400 19,1 21,0 25 2,5 191 10 11 25 24
400 22,7 17,6 29 2,5 227 11 13 29 28
400 23,7 17,0 30 2,5 237 11 13 30 29
400 29,4 13,6 37 3,0 294 13 16 37 36
400 36,3 11,0 45 3,0 363 16 19 45 44
400 44,7 9,0 54 3,5 447 18 23 54 54
400 54,7 7,4 64 4,0 547 21
27 64 65
450 11,0 41 17 1,5 110 8 8 17 15
450 13,8 33 21 2,0 138 9 9 21 18
450 17,2 26,0 25 2,0 172 9 10 25 22
450 21,5 21,0 31 2,5 215 11 12 31 27
450 25,5 17,6 37 2,5 255 12 14 37 31
450 26,7 17,0 38 3,0 267 12 14 38 33
450 33,1 13,6 47 3,0 331 15 17 47 40
450 40,9 11,0 56 3,5 409 17 21 56 49
450 50,3 9,0 68 4,0 503 20 25 68 60
450 61,5 7,4 80 4,0 615 23
31 80 71
