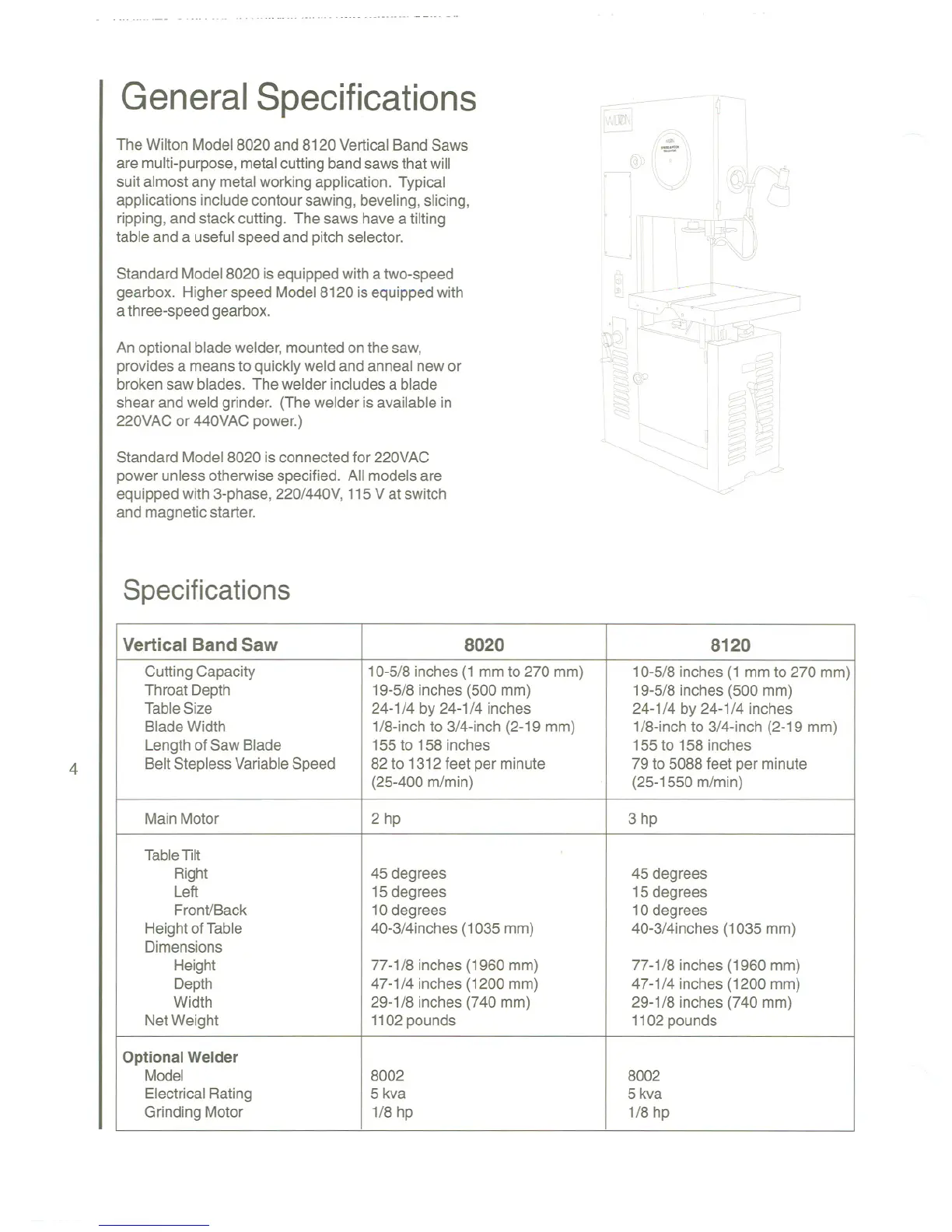

Wilton 8020 - General Specifications

GeneralSpecifications
-----------
~
.".,
~ ~
I 11-:- 'I)
I ,\);
;---1 \\ d
I
I
I
.~
~/.. ~
The Wilton Model 8020 and 8120 Vertical Band Saws
are multi-purpose, metal cutting band saws that will
suit almost any metal working application. Typical
applications include contour sawing, beveling, slicing,
ripping, and stack cutting. The saws have a tilting
table and a useful speed and pitch selector.
'LJI~-\~~
Standard Model 8020 is equipped with a two-speed
gearbox. Higher speed Model 8120 is equipped with
a three-speed gearbox.
r --+---..--
~
:
i[~£i,~~="~~J
' , .---=:--,--- ~-
n~:.. 'I, ---
lono ~= .\:.L~
~' --==~r~
~ n ..~
~,s:;", J r~
--~ '--~
~@J I
I
~l
I
~
I
~ lic;..,
~ e:;:J \~. 1
I ~ ;--~ \'t?
~ ~,,~
.?' ~
] '? ~
<~ ~ ~-..J ~'" ~1
' [..c;)
~ ~j
l
v j.
. ~ ;--~~
~
An optional blade welder, mounted on the saw,
provides a means to quickly weld and anneal new or
broken saw blades. The welder includes a blade
shear and weld grinder. (The welder is available in
220VAC or 440VAC power.)
Standard Model 8020 is connected for 220VAC
power unless otherwise specified. All models are
equipped with 3-phase, 220/440V, 115 V at switch
and magnetic starter.
Specifications
4
Vertical Band Saw 8020 8120
Cutting Capacity 10-5/8 inches (1 mm to 270 mm)
10-5/8 inches (1 mm to 270 mm)
Throat Depth 19-5/8 inches (500 mm) 19-5/8 inches (500 mm)
TableSize
24-1/4 by 24-1/4 inches 24-1/4 by 24-1/4 inches
Blade Width
1/8-inch to 3/4-inch (2-19 mm)
1/8-inch to 3/4-inch (2-19 mm)
Lengthof Saw Blade
155to 158 inches 155to 158 inches
Belt SteplessVariableSpeed 82 to 1312feet per minute 79 to 5088 feet per minute
(25-400 m/min)
(25-1550 m/min)
Main Motor
2 hp 3hp
TableTilt
Right 45 degrees 45 degrees
Left
15 degrees 15 degrees
Front/Back
10 degrees 10 degrees
HeightofTable 40-3/4inches (1035 mm) 40-3/4inches (1035 mm)
Dimensions
Height 77-1/8 inches (1960 mm)
77-1/8 inches (1960 mm)
Depth
47-1/4 inches (1200 mm)
47-1/4 inches (1200 mm)
Width
29-1/8 inches (740 mm) 29-1/8 inches (740 mm)
Net Weight 1102pounds 1102pounds
Optional Welder
Model 8002 8002
ElectricalRating
5kva 5kva
Grinding Motor 1/8 hp 1/8 hp
