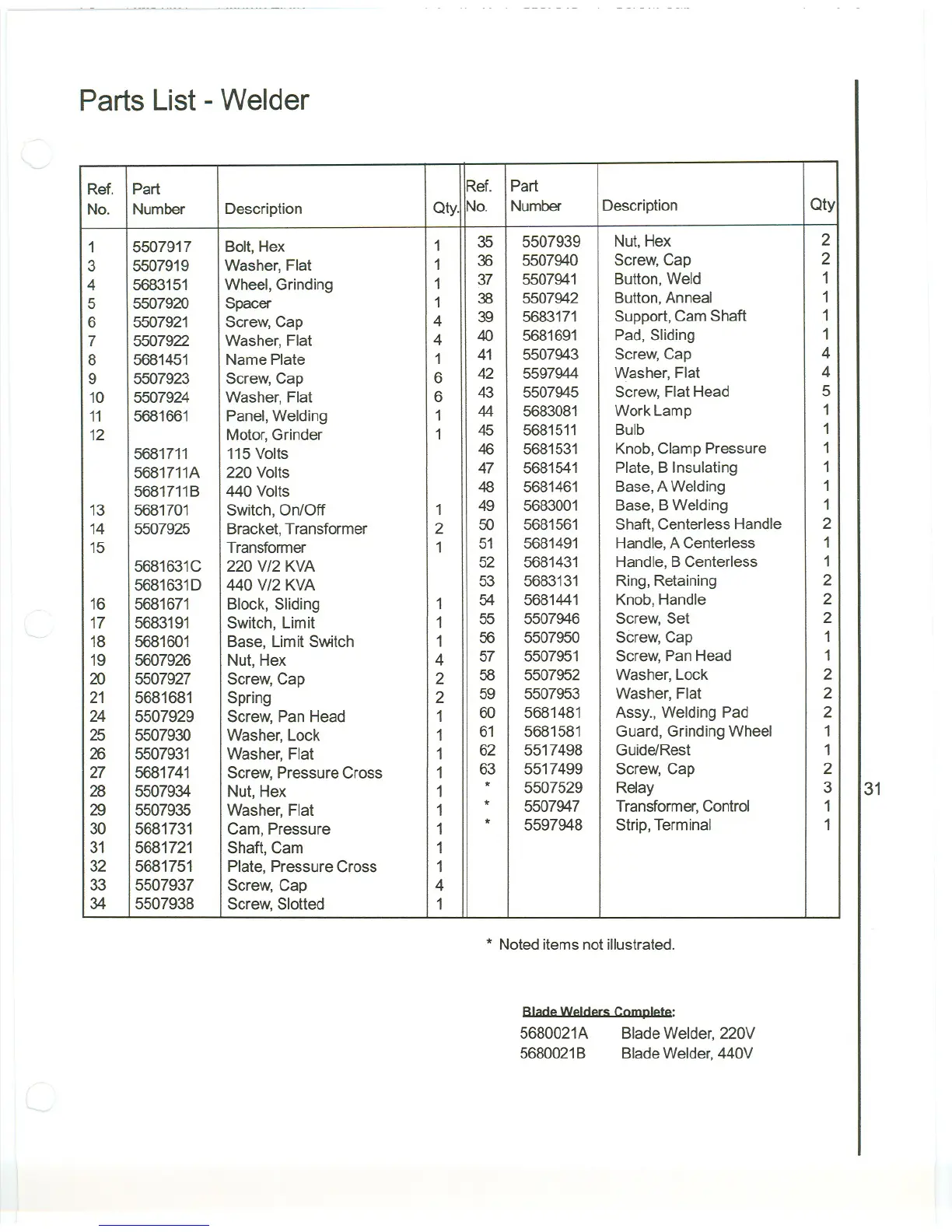

Wilton 8020 - Parts List Welder

PartsList- Welder
31
* Noted items not illustrated.
BI;ld~ W~ld~r§ Compl~t~:
5680021 A
5680021B
Blade Welder, 220V
Blade Welder, 440V
Ref.
Part
Ref.
Part
No.
Number
Description
Qty.
No.
Number
Description
Qty
1 5507917
Bolt,Hex
1
35
5507939
Nut,Hex
2
3
5507919
Washer, Flat
1
36 5507940
Screw,Cap
2
4 5683151
Wheel, Grinding
1
37
5507941
Button, Weld
1
5 5507920
Spacer
1
38
5507942
Button,Anneal
1
6 5507921
Screw,Cap
4
39 5683171
Support,Cam Shaft
1
7 5507922
Washer, Flat
4
40 5681691
Pad, Sliding
1
8 5681451 Name Plate
1
41
5507943
Screw,Cap
4
9
5507923
Screw,Cap
6
42 5597944
Washer, Flat
4
10 5507924
Washer, Flat
6
43 5507945
Screw,Flat Head
5
11 5681661
Panel,Welding
1
44 5683081
Work Lamp
1
12
Motor,Grinder
1
45
5681511 Bulb
1
5681711 115Volts
46 5681531
Knob,Clamp Pressure
1
5681711A 220 Volts
47 5681541
Plate, B Insulating
1
5681711B
440 Volts
48 5681461
Base,A Welding
1
13 5681701
Switch,On/Off
1
49 5683001
Base, B Welding
1
14 5507925
Bracket,Transformer
2
50 5681561
Shaft,CenterlessHandle
2
15 Transformer
1
51 5681491
Handle,A Centerless
1
5681631C 220 V/2 KVA
52
5681431
Handle,B Centerless
1
56816310 440 V/2 KVA
53 5683131
Ring,Retaining
2
16 5681671
Block, Sliding
1
54 5681441
Knob,Handle
2
17 5683191
Switch, Limit
1
55 5507946
Screw, Set
2
18 5681601
Base, Limit Switch
1
56
5507950
Screw,Cap
1
19 5607926
Nut, Hex
4
57
5507951
Screw,PanHead
1
20 5507927
Screw,Cap
2
58
5507952
Washer,Lock
2
21 5681681
Spring
2
59 5507953
Washer, Flat
2
24 5507929
Screw, Pan Head
1
60 5681481
Assy., Welding Pad
2
25 5507930
Washer, Lock
1
61 5681581
Guard, GrindingWheel
1
26 5507931
Washer, Flat
1
62 5517498 Guide/Rest 1
27 5681741
Screw,Pressure Cross
1
63 5517499
Screw, Cap
2
28 5507934
Nut, Hex
1
*
5507529
Relay
3
29 5507935
Washer, Flat
1
*
5507947
Transformer,Control
1
30
5681731
Cam, Pressure
1
*
5597948
Strip,Terminal
1
31 5681721
Shaft, Cam
1
32 5681751
Plate, Pressure Cross
1
33
5507937
Screw, Cap
4
34 5507938
Screw,Slotted
1
