Wincor Nixdorf ProCash 2050xe USB User Manual

Installing the Remote Status Indicator Remote status indicator - standard
01750058390 G ProCash 2050xe USB - Installation Guide 157
1
2
i
A
n adhesive label with the
number 1 is applied in the
factory.

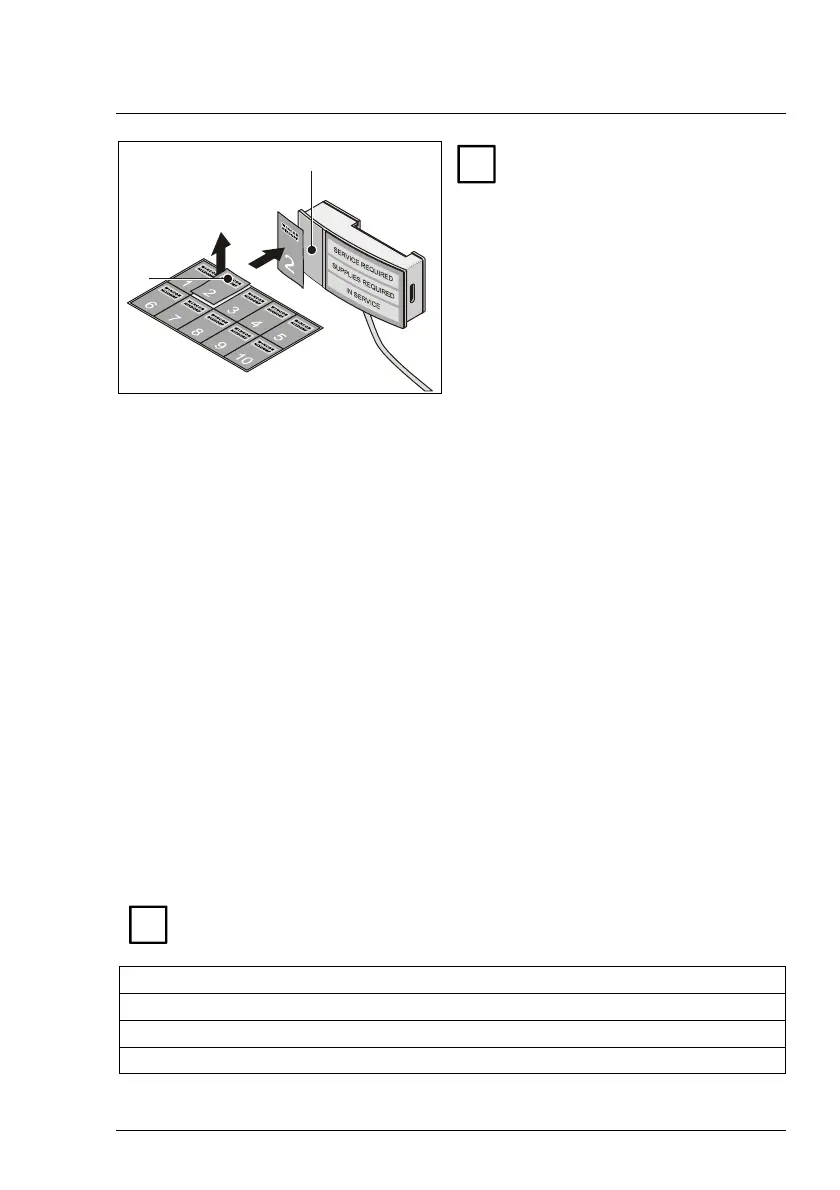

Remove the required label (1) and
apply it to the space provided (2) on
the standard remote status indicator.
• Lay the connecting cable of the standard remote status indicator to the
appropriate device.
Connection to the relay panel for external
features
•
Open the device (see the device's operating manual).
• Route the connecting cable through the cable feed openings or the lead-ins
into the device (see the section for the appropriate installation version in
the chapter "Installation").
• Lay the connecting cable in the device to the relay panel for external
features so that it cannot be damaged when components are pulled out.
• Shorten the connecting cable if so required to the appropriate length (see
section "Shortening the cable ends").
Marking on wires
i
The wires are marked with an adhesive label at the end as follows:
RED - 11 RED LIGHT
WHITE - 12 YELLOW LIGHT
GREEN - 13 GREEN LIGHT
BLACK - 14 GND

Wincor Nixdorf ProCash 2050xe USB Specifications

General

Brand	Wincor Nixdorf
Model	ProCash 2050xe USB
Category	Payment Terminal
Language	English
