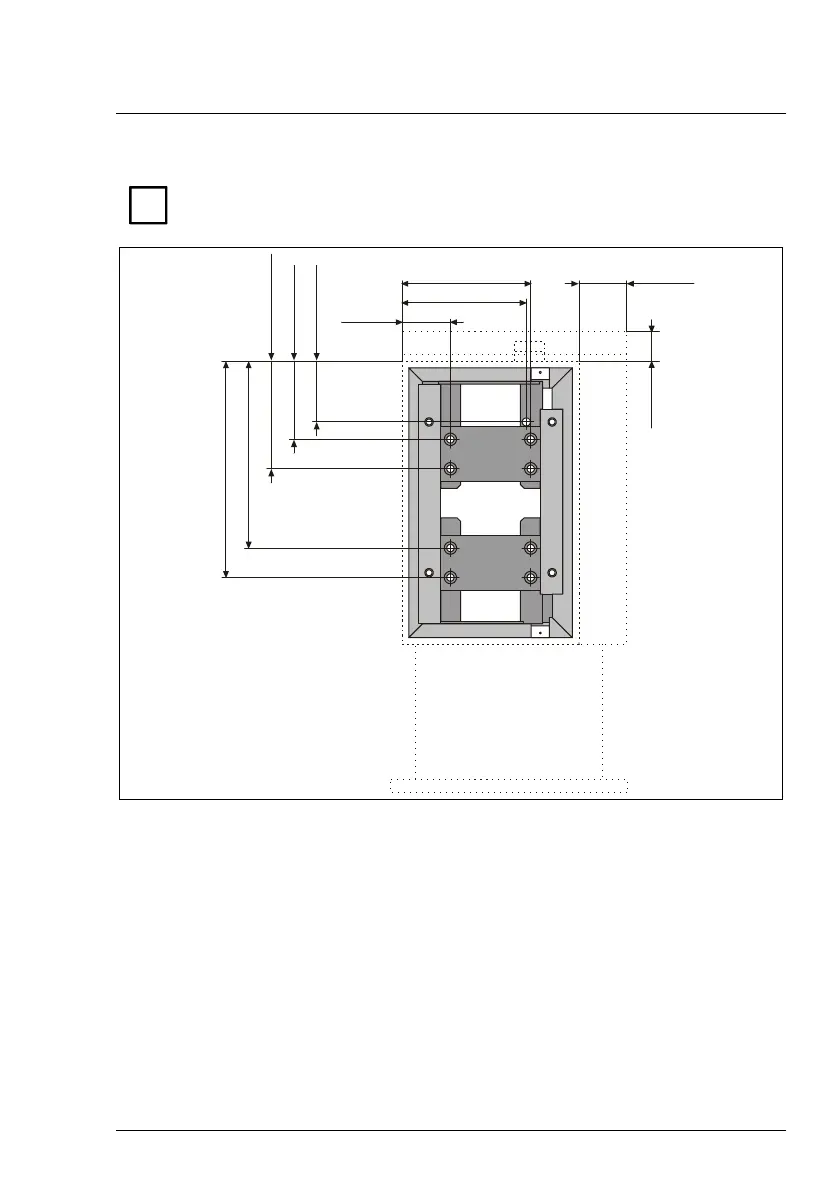

Planning the Installation Drilling diagrams
01750058390 G ProCash 2050xe USB - Installation Guide 71
Safe width 450 mm (17.72")
i
The installation frame is 3 mm (0.12") smaller than the safe all around.
116
(4.57")
150 (5.91")
322 (12.68")
334 (13.15")
110
(4.33")
277 (10.91")
492 (19.37")
572
22.52"
197 (7.76")
150
(5.91")
Drilling depths:
Holes for installation
frame:
at least 180 mm (7.09") with 125 mm (4.92") in
concrete.
For the hole diameter please refer to the mounting
instructions of the caulking cartridge.
Hole for tear-off
sensor:
at least 40 mm (1.57") in concrete.
Consult your alarm technician about the size of the
hole and the cartridge.
