Drilling diagrams Planning the Installation
70 ProCash 2050xe USB - Installation Guide 01750058390 G

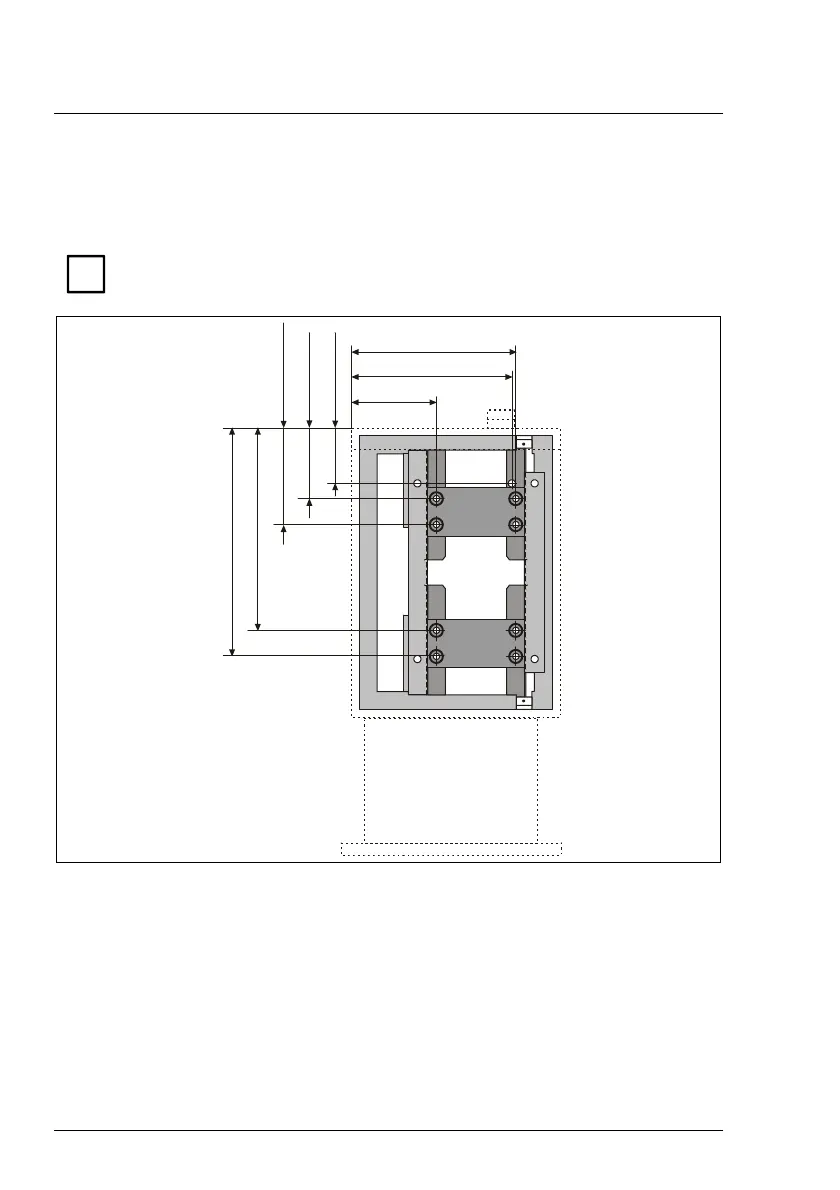

Drilling diagram for 222 mm (8.74") install. frame
Safe width 600 mm (23.62")
i
The installation frame is 3 mm (0.12") smaller than the safe all around.
240
(9.45")
472 (18.58")
150 (5.91")
197 (7.76")
277 (10.91")
599 (23.58")
682
26.85"
484 (19.06")
Drilling depths:
Holes for
installation frame:
at least 180 mm (7.09") with 125 mm (4.92") in concrete.
For the hole diameter please refer to the mounting
instructions of the caulking cartridge.
Hole for tear-off
sensor:
at least 40 mm (1.57") in concrete.
Consult your alarm technician about the size of the hole
and the cartridge.
