Wincor Nixdorf ProCash 2050xe USB User Manual

Planning the Installation 82 mm (3.23") installation frame
01750058390 G ProCash 2050xe USB - Installation Guide 51

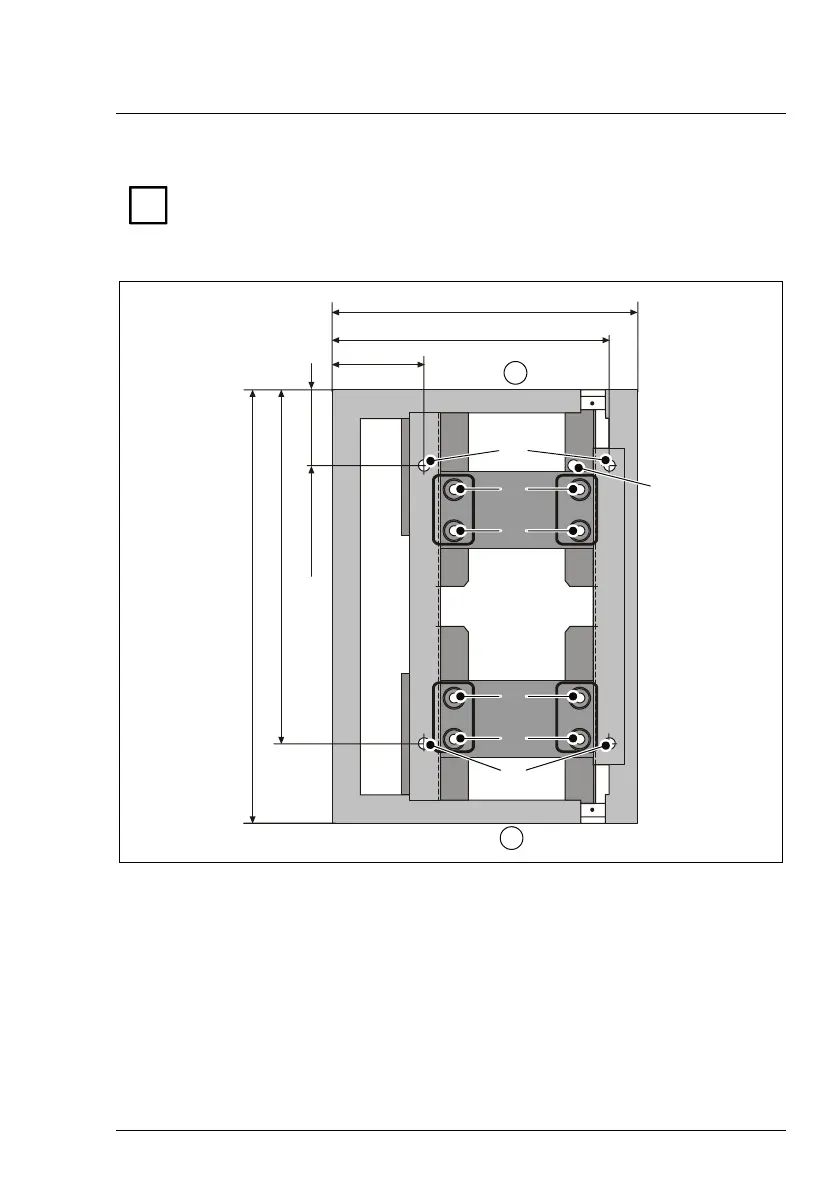

Dimensions of safe attachment points
i
The installation frame must be secured using
two threaded rods per
group of holes A to D.
The installation frame is secured with a total of eight threaded rods.
179
(7.05")
147 (5.79")
687 (27.05")
84
2
(
33.1
5
"
)
539 (21.22")
594
(
23.39"
)
5
2
3
3
2
1
4
1
A
C
D
B
6
1 Attachment points of safe
2 Attachment points of installation frame
3 Attachment points of installation frame
4 Attachment point of tear-off sensor
5 This side must always point to the side with the safe door.
6 Customer panel side
