Planning the Installation 25 mm (0.98") installation frame
01750058390 G ProCash 2050xe USB - Installation Guide 47

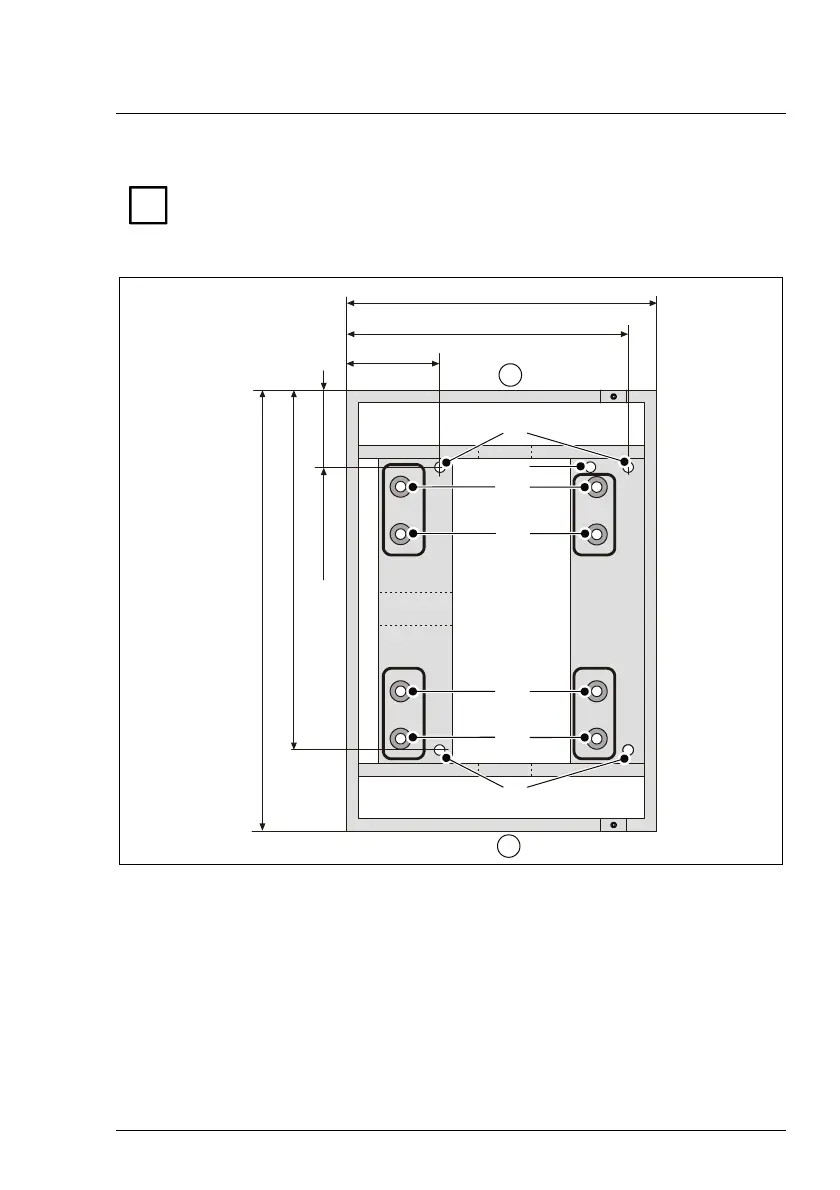

Dimensions of safe attachment points
i
The installation frame must be secured using
one threaded rod per
group of holes A to D. The installation frame is secured with four
threaded rods.
A
C
D
B
4
179
(7.05")
147 (5.79")
687 (27.05")
8
4
2
(
33.
1
5
"
)
539 (21.22")
594
(
23.39"
)
6
2
3
2
1
1
3
5
1 Attachment points of safe
2 Attachment points of installation frame
3 Alternative attachment points of installation frame
4 Attachment point of tear-off sensor
5 This side must always point to the side with the safe door.
6 Customer panel side
