Planning the Installation Height-adjustable installation rack
01750058390 G ProCash 2050xe USB - Installation Guide 61

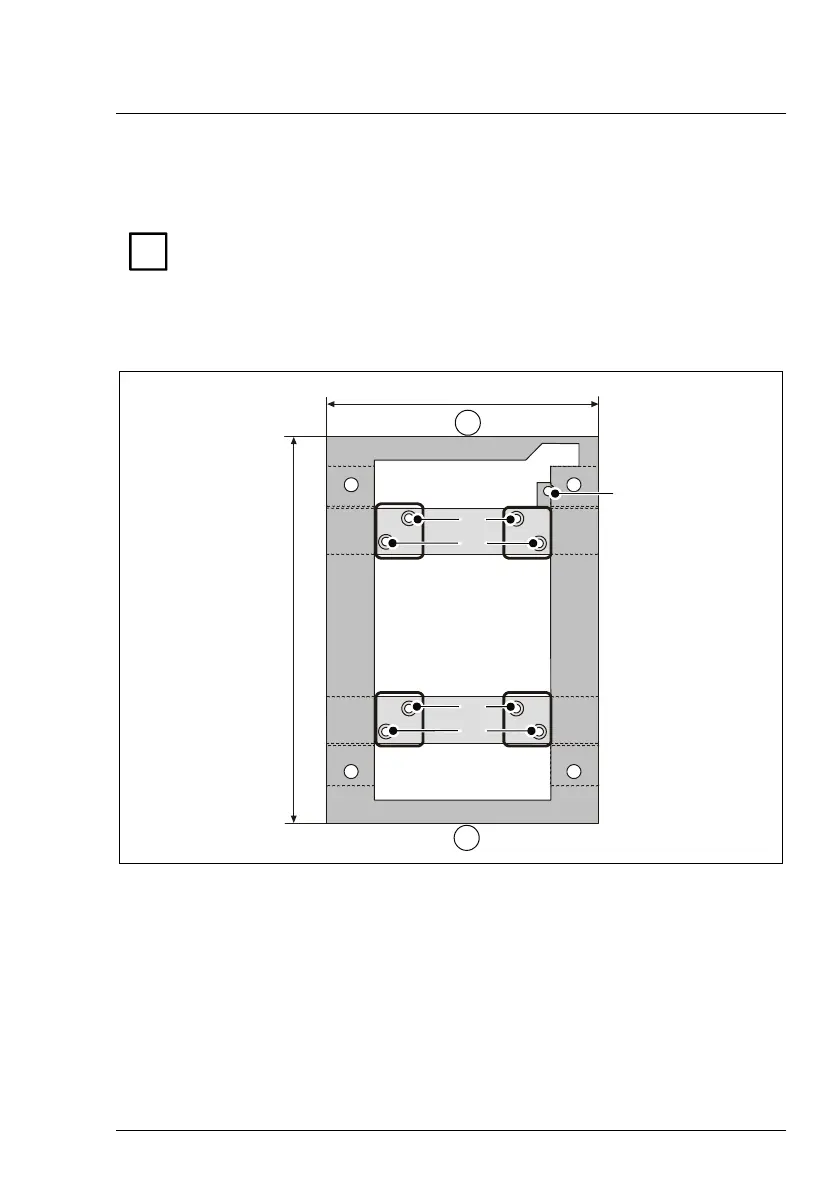

Dimensions of safe attachment points
Bottom part
i
The installation rack must be secured using
one threaded rod (for
UL / CEN L / CEN III safe) or
two threaded rods (for CEN IV safe) per
group of holes A to D.
The installation rack is secured with a total of four or eight threaded
rods.
AB
C
D
2
1
3
1
2
814
(
32.05"
)
566
(
22.28"
)
5
4
1 Attachment points of installation rack
2 Additional attachment points for CEN IV safe or alternative
attachment points of UL / CEN L / CEN III safe
3 Attachment point of tear-off sensor
4 This side must always point to the side with the safe door.
5 Customer panel side
