WINEGARD TRAV’LER SK-3003

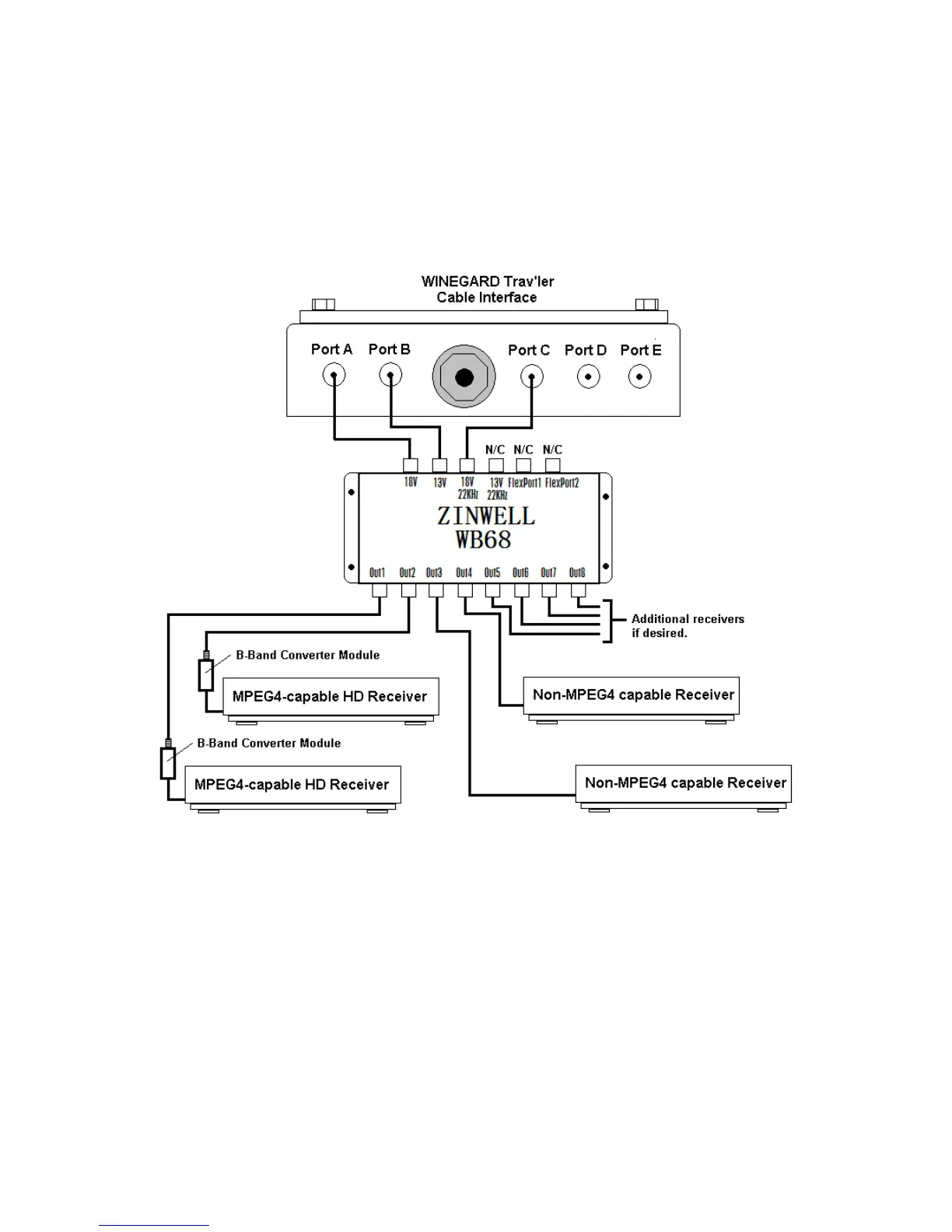

DIRECTV Triple Wiring Diagram
Notes:
1. A Zinwell WB616 can be substituted for the WB68 to expand the outputs from 8 to 16.
Please refer to the “Zinwell WB616 manual.pdf” or “Zinwell WB68 manual.pdf” file for
maximum cable lengths & all other technical information.
2. B-Band converters must be used on all MPEG4 HD receivers to receive HD
programming.
3. 13V/22KHz port will not be used with the WINEGARD TRAV’LER SK-3003.
