Cable Entry Plate Installation
Decide the best location for the cables to enter the vehicle.
You will need to run:
A coaxial directly to each receiver location.
A control cable to the Internal Display unit.
Drill a hole in the roof and push the required
wires through. (Installations for multiple receivers
may require a larger hole or multiple holes as each
receiver requires a dedicated coax cable.) See the
receiver manual for wiring details.
Make all the necessary connections to the receiver. For best operation, use the coax ports on the unit
in order. (Port “A” for the main receiver, Port “B” for a secondary, etc.)
Connect the coax cable from the dish to the “SATELLITE IN” on the rear of the receiver.
If connecting a second receiver, feed the opposite end of the coax cable through the hole
in the roof and connect it to the “SATELLITE IN” on the rear of the secondary receiver
in the vehicle.

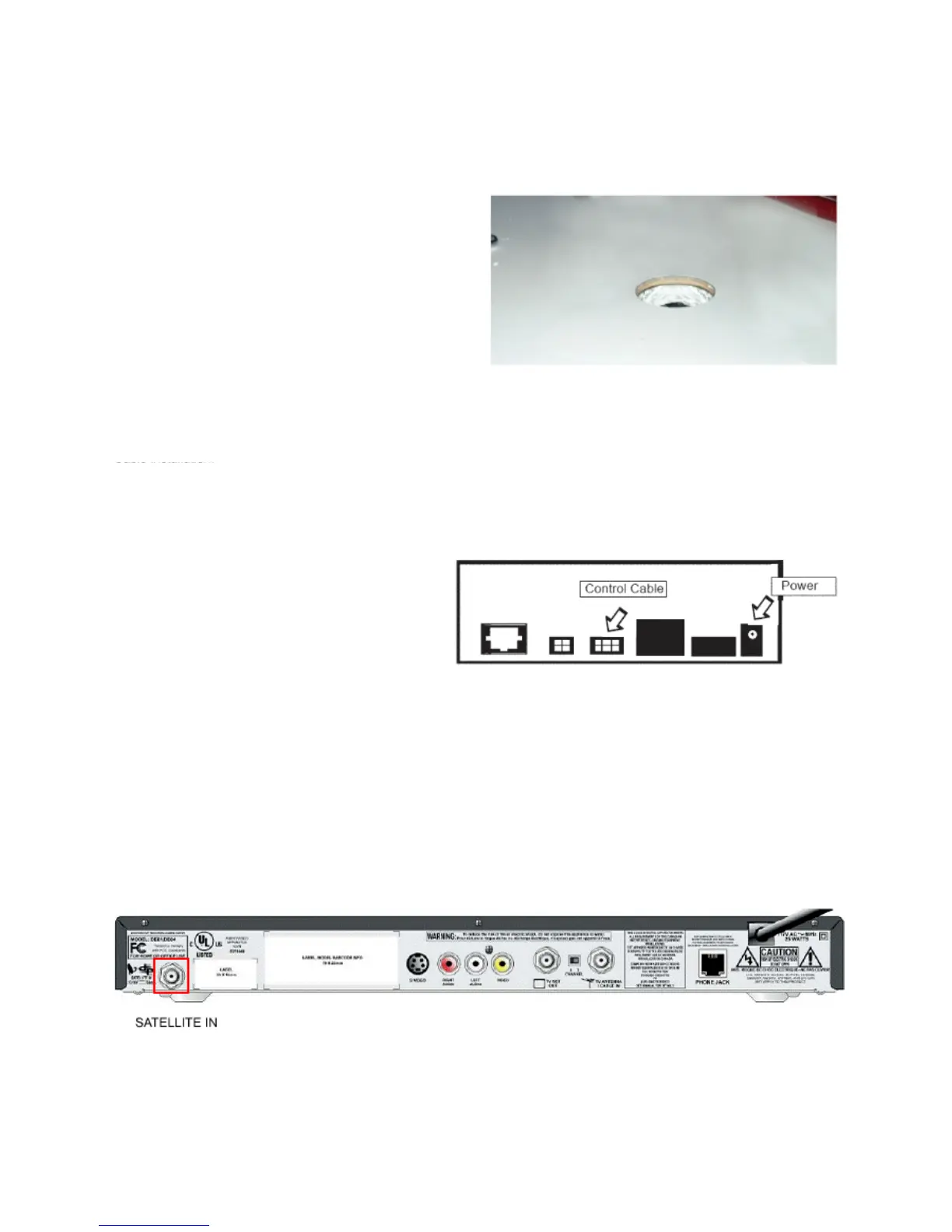

Cable Installation
Attach the TRAV’LER control cable to the
TRAV’LER interface box as shown in the
graphic.
Attach the output cable from the power
supply to the TRAV’LER interface box.
Then, plug the power supply into a 110 AC
outlet.
Finally connect a separate coaxial cable to
each of the receivers being used with the
TRAV’LER Automatic Satellite Dish.
