The minimum roof space required for the TRAV’LER is 43
″
L x 24
″
W. The operational space
requires that no obstructions taller than 8 inches be mounted within 3 feet of the base.
The unit must be level for best
operation.
Make sure that the location
offers enough support to attach
the TRAV’LER securely.
Mount
Parallel to
Center line
of Coach

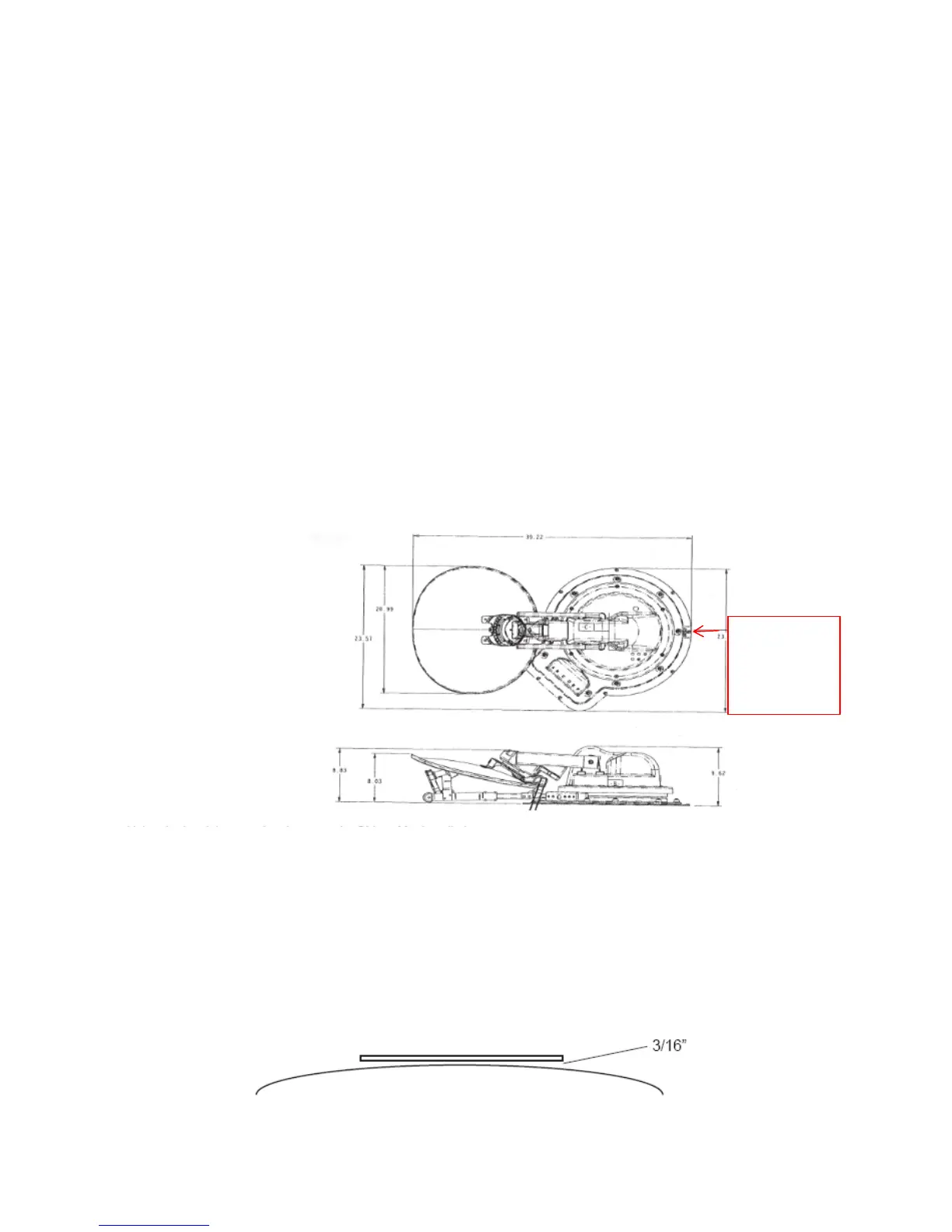

Using the level, locate a level spot on the RV roof for installation.
Check with your RV dealer or manufacturer, your RV may be pre-wired or have a reinforced
area for this system, DO NOT install this unit on an arch that will create a gap larger than
3/16
″
between the RV roof and the base (as shown in the graphic.)
The base is marked “FRONT” and “BACK”. Be sure “FRONT” faces the FRONT of the RV.
Level the base of the satellite unit front to back and side to side. The more level the base is, the
faster it will be to locate the correct satellite. An unleveled base may also prevent the unit from
acquiring a satellite signal.
Parts list
Included with your Winegard TRAV’LER Automatic Multi-Satellite TV Antenna:
 Installation/Operation Manual
 Mount Base
 TRAV’LER Interface Box
 Reflector
 24
″
AC Power Cord
 48V 2.5 A 120 W Power Supply
 Gray Coaxial Cable 30
′
 Black Coaxial Cable 30
′
 Mounting Hardware Bag
 Cable Entry Hardware Bag
 30
′
Cable – Power/Control Cable
Installation
Roof Location Requirements

Winegard Trav'ler Specifications

General

Mount Type	Roof Mount
Signal Acquisition	Automatic
Type	Satellite
Compatibility	DIRECTV, DISH, Bell TV
Warranty	2 Years Parts, 1 Year Labor
Operating Temperature	-13°F to 140°F
