Once the wires are run and the sealant has started to cure:

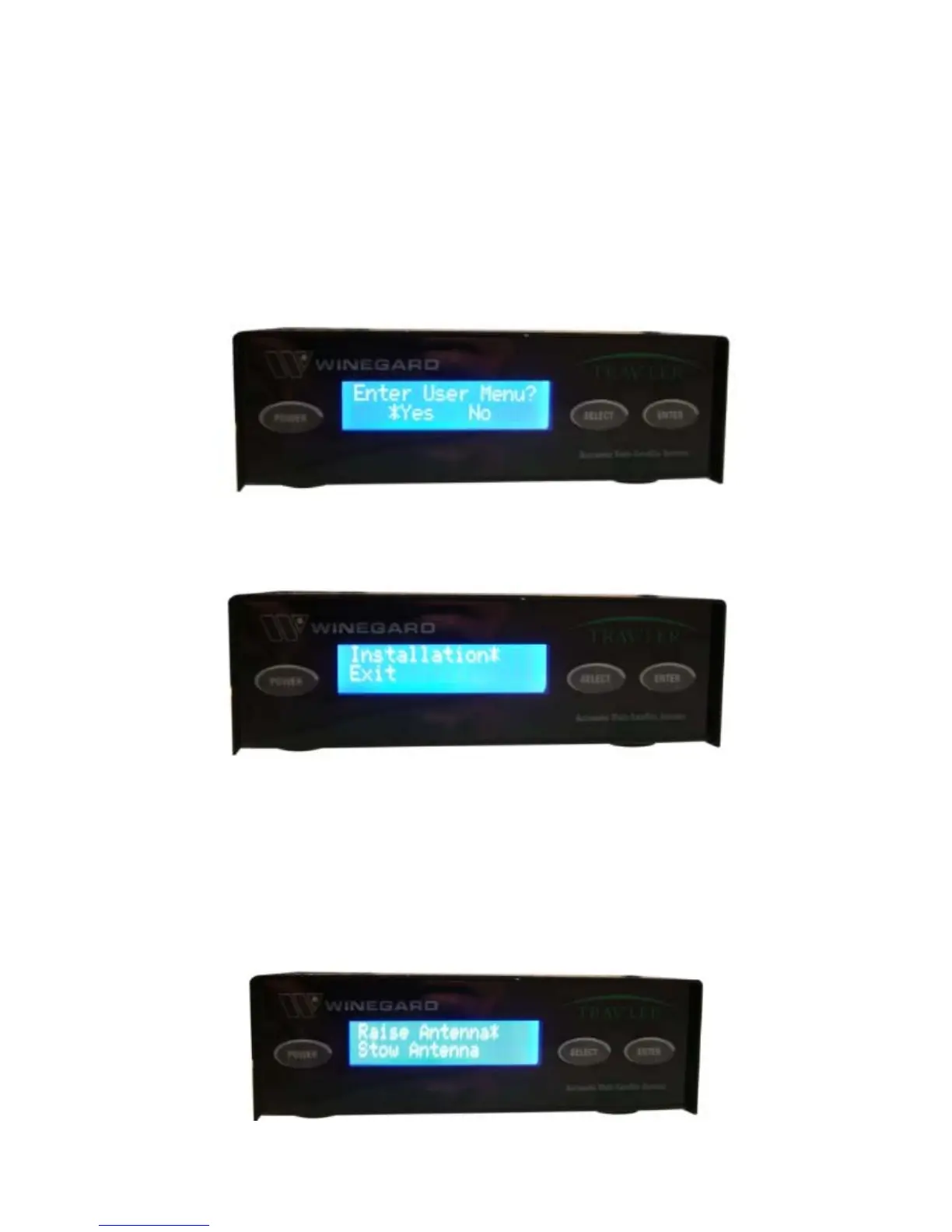

Press the POWER button and hold for one second to turn the TRAV’LER interface box on.
Then press ENTER and hold for two seconds or until the unit enters the menu mode.
Press SELECT until the asterisk is on “Yes”
and press ENTER to go into the user menu.
TRAV’LER® Interface Box
Press the SELECT button to move the asterisk to “installation” and press ENTER.
When asked to provide a code, press ENTER four times, to enter 0000 for the code.
Press SELECT to move the asterisk to “Raise Antenna” and press ENTER. The TRAV’LER will
raise about half way up and make it possible to attach the reflector.
If the LED displays an “EL MOTOR STALL” this is normal and the reflector is ready to be
installed. This message is used to verify that the antenna has raised completely to the upper limit.
