9| P a g e

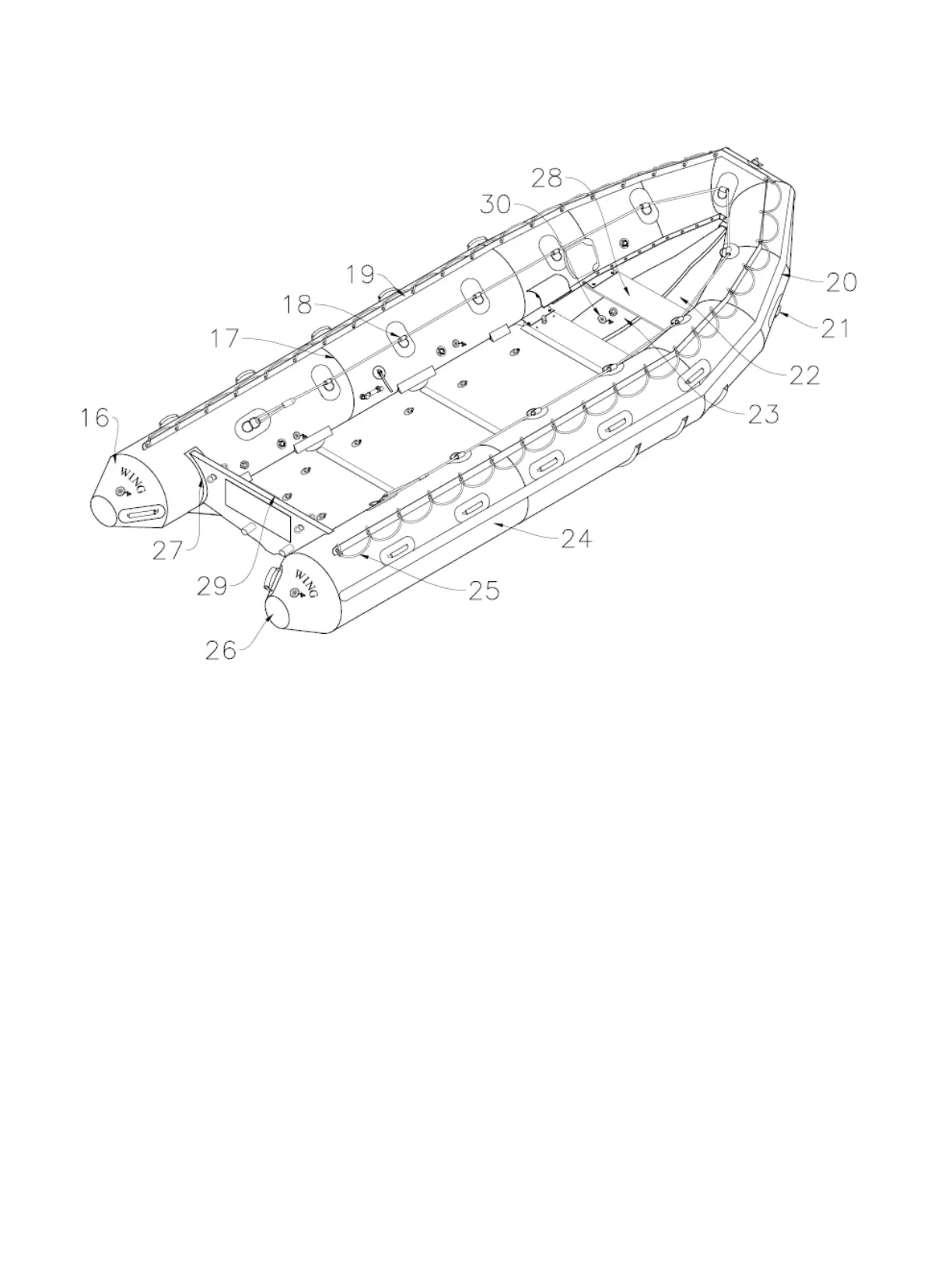

16. Cone – Stern end of MBT
17. Thermo Welded Seam – Two pieces of fabric Polyurethane fabric permanently fused using heat or RF welding
18. Rope Ring/D-ring combo
19. Grommet Strip – Strip of grommets along top of MBT
20. Rubstrake/Marley – Reinforcement material in high-wear area along the MBT
21. Heavy duty D-rings – Attachment points for mooring or towing
22. Sheet Floor – Polyurethane coated polyester forming CRRC hull
23. Keel – Inflatable tube running fore and aft giving form to fabric hull
24. Bottom Chafe – Extra layer of Polyurethane material in high-wear areas
25. Outboard Lifeline – Line attached outboard on MBT
26. Rubstrake/Marley cone end – Reinforced Marley abrasion material in high-wear area
27. Oval Transom Chafe – Fabric reinforcement for strength and stress-mitigation
28. Forward Thrustboard – FRP composite board forward of Main thrustboard affording additional longitudinal
support
29. Transom Motor Mount Plate – Metal plate attached to transom
30. Keel Fill Valve – Manual inflation valve
