10| P a g e

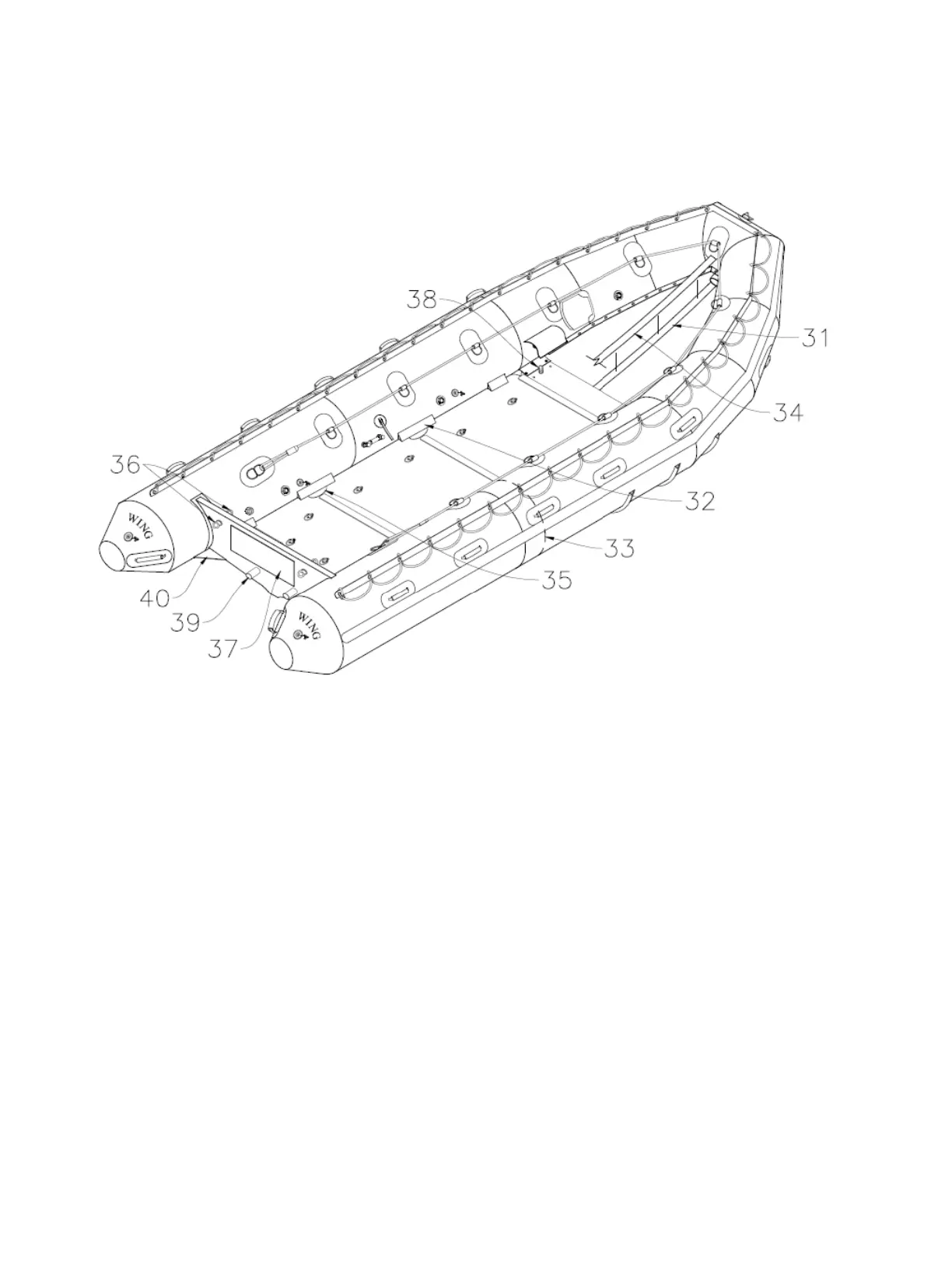

31. Floor Velcro strip – Attached to floor to mate with Keel Velcro strip
32. Floorboard Cleat – Retainer to prevent floorboard lift
33. Bulkhead/Baffle – Fabric wall creating separate chambers in MBT
34. Keel Velcro strip – Attached to keel for proper alignment of keel to floor
35. Gusset Joiner – Crescent shaped aluminum, mating two boards, along with main Joiner, for stiffening floorboard
assembly. Used for heavy load operations.
36. Towing/Lifting Eye – Dual-sided steel eye for towing and lifting
37. Sacrificial Plate – Attached to rear of transom
38. Bow Lifting Eye – Attached port and starboard side of main thrustboard
39. Scupper Drain – Allows water passage from inside to outside of CRRC
40. Transom Spray Deflector – Outboard of transom to minimize splash
