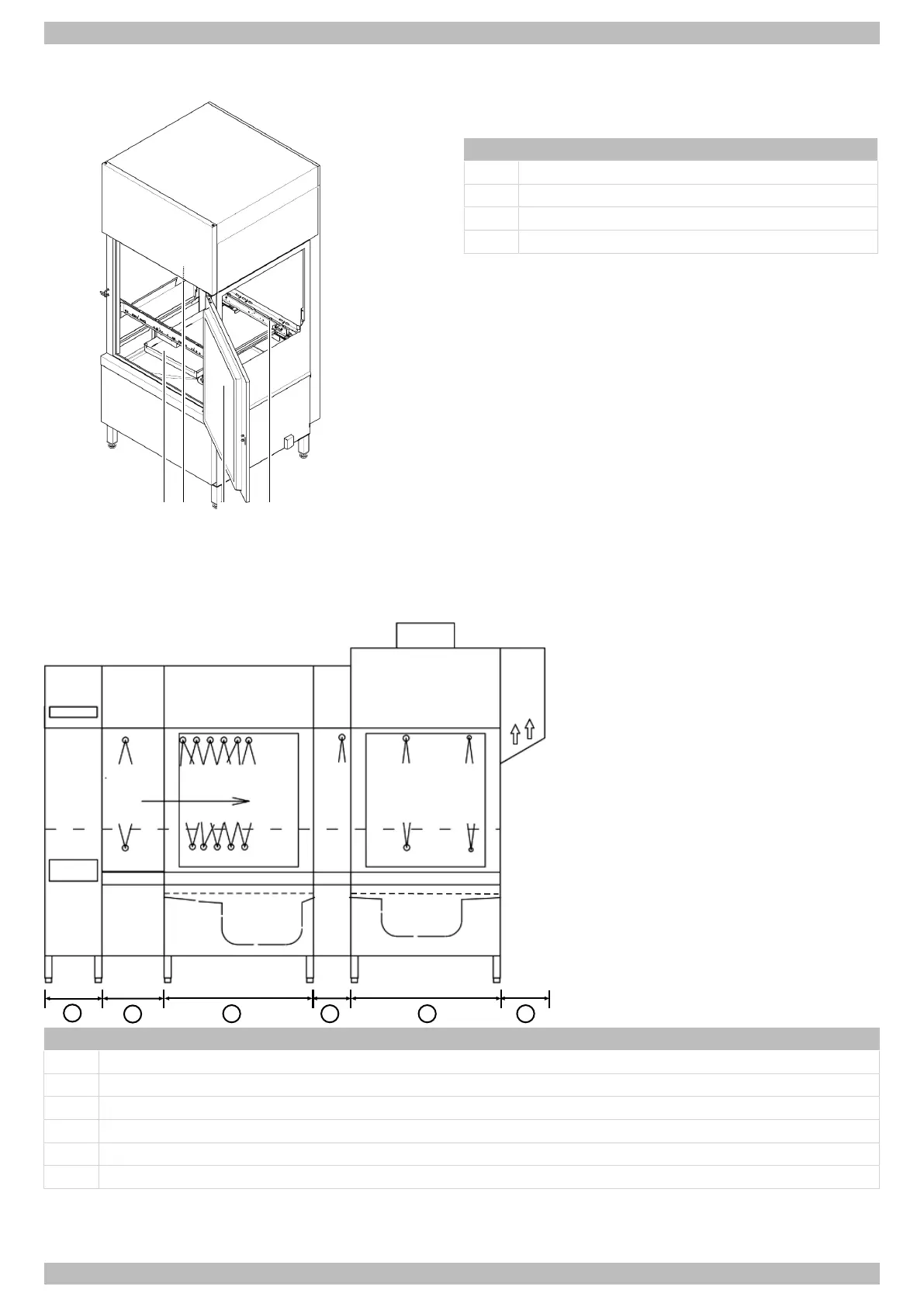

Drying zone (optional)
41 2 3
The drying zone helps to dry the wash items by means of a
warm stream of air from above.
Item Name
1 Air tray
2 Ventilator jet
3 Door
4 Rack conveyor with push bars
3.3 Machine sizes
Illustration of working direction left to right
MTR S 2-tank rack conveyor dishwasher
1 2
3
4 5 6
Item Name
1 Inlet zone
2 Pre-wash zone 350 mm (optional)
3 Main wash zone
4 Neutral zone (optional)
5 Rinse zone
6 Exhaust air hood
